IEEE 802.11n Wireless Standard 2.4GHz Mobile LTE Router, The Wireless Speed up to 300Mbps OEM 4G CPE LTE Support 32+ End Users Can Access Into It for It
Price:
US $1-80 / Piece
MOQ:
1 Piece
Delivery Time:
Negotiable
Product Description
IEEE 802.11n wireless standard 2.4GHz mobile lte router, the wireless speed up to 300Mbps OEM 4g cpe lte support 32+ end users can access into it for it
Description:
LTE417 is an high speed, high performance, multiple functions LTE CPE. Comply with IEEE 802.11n wireless standard, the wireless speed up to 300Mbps in 2.4GHz. Support 4G FDD/TDD, WCDMA and GSM networking, plug and play, easy to have the high speed wireless network for 32+ end users. Support TR069, VPN, VoLTE, it is best choice for ISP, home and some chain stores.
Main Features:
Technical Specification
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Description:
LTE417 is an high speed, high performance, multiple functions LTE CPE. Comply with IEEE 802.11n wireless standard, the wireless speed up to 300Mbps in 2.4GHz. Support 4G FDD/TDD, WCDMA and GSM networking, plug and play, easy to have the high speed wireless network for 32+ end users. Support TR069, VPN, VoLTE, it is best choice for ISP, home and some chain stores.
Main Features:
- Support 4G/WCDMA/GSM network, plug and play, easy to install;
- 2.4GHz, the wireless speed up to 300Mbps, 32+ end users can access into it;
- Support DC and Type-C power supply, 2500mAh battery optional, movable wireless router make network available everywhere;
- Support TR069, VPN, VoLTE, more functions for more application scenes;
- Provide deeply firmware support, help customer to develop their own firmware;
Technical Specification
| Hardware Spec: | |
| Model | LTE417 |
| WiFi Standard | IEEE 802.11b/g/n |
| CPU | MT7628 |
| Flash | 8MB |
| Memory | 64MB |
| Frequency | 2.4G: 2400 - 2484MHz |
| Data Rate | 300Mbps @ 2.4GHz |
| RF Power | 2.4G≥20 dBm/chain |
| Access Users | 60+ Clients |

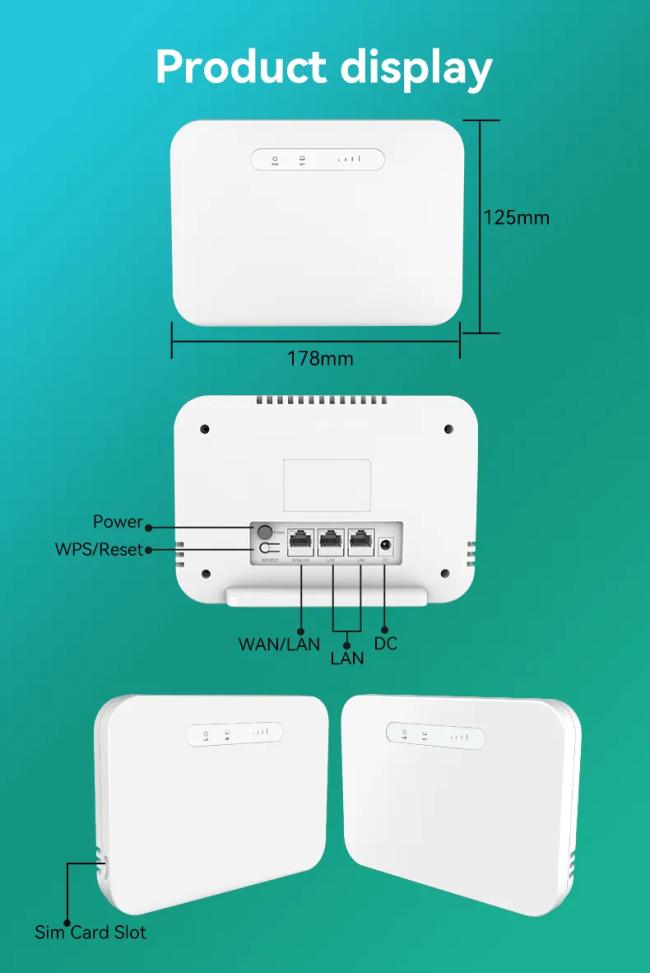

| Interface | 1*10/100Mbps RJ45 port, WAN/LAN port |
| 1*RJ11 port for VOLTE(Optional with extra cost) | |
| 1*Type C port, can provide USB power for this LTE router by power bank(No VoLTE under this function) | |
| 1*SIM card slot for 3G/4G SIM card | |
| 1*Power button to switch on/off battery | |
| 1*Reset button | |
| 1*DC power injector, 12V/0.5A power adapter | |
| LED Indicator | SYS |
| WiFi | |
| ETH | |
| NET | |
| Wi-Fi Antenna | Build in 5dBi MIMO Antenna |
| 4G Antenna | External 4G detachable antenna, 5dBi |
| Power Consumption | <12W |
| DC Power Supply | Input 12V / 0.5A (DC); |
| Battery | 2600mAh |
| MTBF | ≥52000H@25ºC |
| Working temperature | Working Temperature:-20ºC~45ºC |
| Storage temperature: -40ºC~70ºC | |
| Humidity | 5%~95% |
| Dimensions | TBD |
| Firmware Features | |

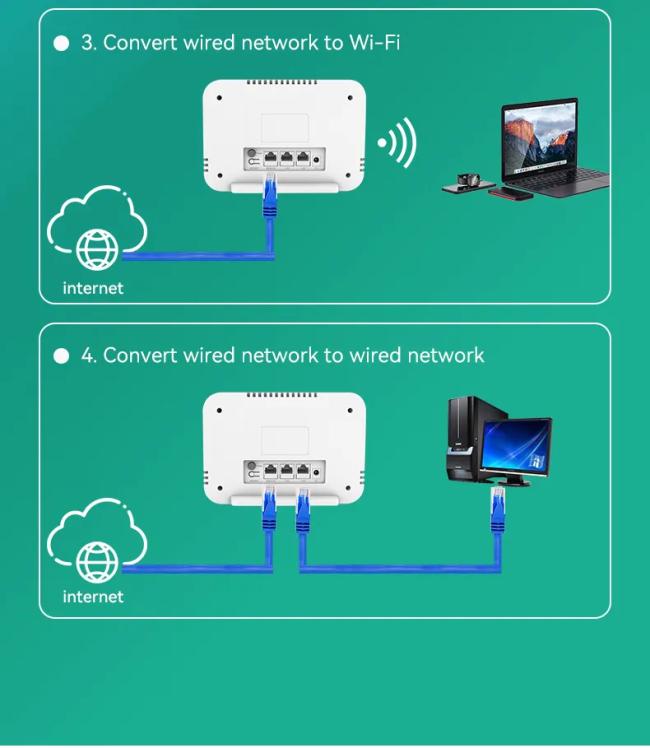

| Operation mode | WAN/4G |
| Wireless Functions | Multiple SSID up to 4 |
| Support SSID hidden | |
| Support MAC filter | |
| Support VoLTE for phone call function(optional) | |
| Support client isolation to improve the wireless stability | |
| VPN | VPN Pass through and VPN Client (L2TP PPTP) |
| Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP |
| IP Protocol | IPv4 |
| Device Management | GUI web management |
| Support firmware back-up, restore, reset, upgrade | |
| Packing List |
LTE417*1 Power Adapter*1 LAN Cable×1(1 meter) User Manual×1 |
| 4G Data Rate | |
| 4G protocol | Cat4 |
| 3G/4G bands for China/India | B1/B3/B5/B8@FDD;B34/B38/B39/B40/B41@TDD; B1/B5/B8@WCDMA; B3/B8@GSM |
| 3G/4G bands for Europe/Middle East | B1/B3/B7/B8/B20/B28@FDD; B38/B40/B41@TDD, B1/B8@WCDMA; B3/B8@GSM |
| 3G/4G bands for Australia | B1/B2/B3/B4/B5/B7/B8/B28/B66@TDD; B40@TDD, B1/B2/B4/B5/B8@WCDMA; B2/B3/B5/B8@GSM |
| LTE-FDD Speed | Downlink: 150Mbps, Uplink: 50Mbps |
| LTE-TDD Speed | Downlink: 130Mbps, Uplink: 35Mbps |
| DC-HSDPA/HSUPA | Downlink: 42Mbps, Uplink: 5.76Mbps |
| GSM | Downlink: 384kbps, Uplink: 384kbps |
