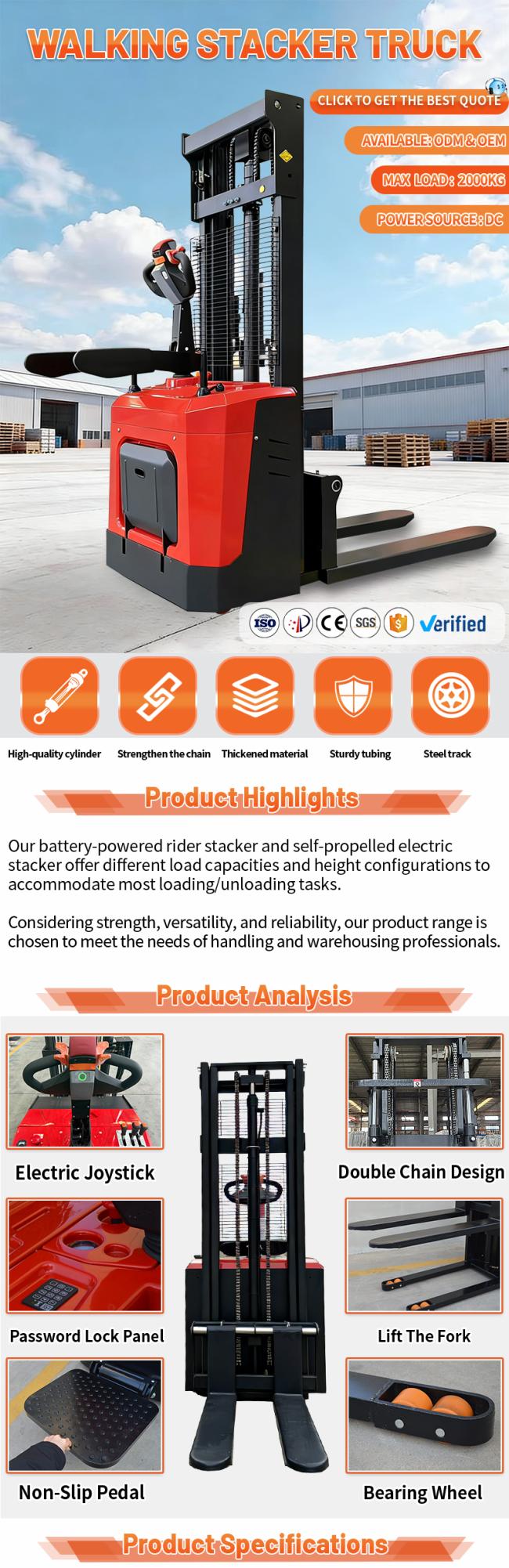

1500kg 3000kg Powered Electric Pallet Truck Stacker Ergonomic Handle

1500kg 2000kg 3000kg Stand-on Electric Stacker with Ergonomic Handle

Comprehensive Triangle Topology Machinery Overview

In high-throughput intralogistics hubs, moving multi-ton pallets across expansive concrete floors demands a brutal choice between equipment speed and geometric stability. Standard compact walkie stackers are nimble but suffer from a dangerously short wheelbase, making them highly prone to tipping or severe structural shaking during high-speed cornering. Conversely, massive sit-down forklifts offer stability but possess bloated turning radiuses that waste expensive warehouse racking space. The Y-Type Station Driven Electric Stacker Crane completely shatters this logistics compromise. Engineered with an extended 1383mm wheelbase and a specialized Y-configuration symmetrical three-point base, this machine delivers the rock-solid high-velocity tracking of a heavy forklift combined with the narrow-aisle agility of a compact stacker.

The engineering breakthrough of the TL-15Y and TL-30Y series lies within its unique wheel-to-chassis mathematical alignment. The precise 1383mm wheelbase length creates a highly optimized structural center of gravity. By arranging the heavy rear drive tire and the wide dual front load pods into a rigid geometric triangle (Y-topology), the machine violently suppresses the high-altitude 'pendulum effect' that typically causes platform sway when lifting heavy loads. This gives standing operators total physical and psychological confidence when maneuvering large automotive components, structural building pallets, or dense fast-moving consumer goods up to three tons.

To capitalize on this geometric stability, the machine is configured as a fully autonomous ride-on workhorse. The integrated spring-loaded operator platform features advanced shock-absorption layers that actively neutralize harsh floor joint vibrations. Driven by an advanced Electronic Power Steering matrix and a high-torque brushless AC motor, the operator can execute sharp, high-speed cross-docking sprints and intricate pallet placements using a single hand, transforming tedious warehouse material moving into a fluid, hyper-efficient, and zero-emission operation.

Passed the CE certification, in accordance with standards such as 98/37/EC, EN92-1:1991, EN292-2-1991/EN280, CE/UKCA,EN,CE(2006/42/EC),EN 280-1,ANSI A92 Series,OSHA,AS/NZS,etc.

Signature Geometric Innovations

· Precision Calibrated 1383mm Wheelbase ❖ Maximize your high-speed tracking confidence. The extended 1383mm wheelbase center provides an expanded horizontal footprint that flawlessly absorbs kinetic energy during rapid acceleration and high-velocity braking, preventing front-to-back chassis pitching completely.

· Y Topology Symmetrical Three Point Base ❖ Master high-altitude stability. The triangular Y-configuration wheel layout distributes payload weight with absolute mathematical uniformity across the ground. This specialized geometry anchors the chassis securely, neutralizing lateral sway and tipping risks during sharp 180-degree cornering.

· Suspended Ergonomic Pilot Platform ❖ Eradicate driver physical exhaustion entirely. The dedicated ride-on standing pedal features an adjustable suspension network that shields the operator's knees and lower back from harsh concrete seams. Folding padded sidebars lock the pilot securely in place during high-velocity sprints.

· Dynamic EPS Micro Control Network ❖ Command massive industrial tonnage with zero upper-body strain. The next-generation Electronic Power Steering utilizes microprocessors to provide motorized turning assistance. Operators can smoothly position heavy 1500kg to 3000kg pallets into tight racking lanes using minimal finger force.

· Zero Maintenance Brushless AC Motor ❖ Eliminate costly warehouse maintenance bottlenecks. The high-capacity alternating current propulsion system contains zero carbon brushes or exposed commutators, shielding the motor's heart from airborne dust and moisture while delivering aggressive torque on steep loading ramps.

Your Vanguard of Global Supply Chain Infrastructure

Procuring specialized structural mast equipment requires a manufacturing partner with an unimpeaching pedigree of safety, scale, and material science. Since breaking ground back in 2005, our corporate group has proudly cemented its legacy as one of the first large-scale enterprises in China specializing comprehensively in the entire process of customized warehouse design, advanced equipment production, global sales, and comprehensive services. Supported by a commanding annual financial turnover approaching 300 million yuan, our world-class manufacturing infrastructure and elite Wangpu digital storefront presence across top tier platforms are your ultimate guarantees of absolute fleet reliability.


✦ Heavy Industrial Geometry Fabrication Operating an extended 1383mm wheelbase machine under heavy multi-ton loads leaves zero room for structural error. Our advanced manufacturing plants utilize automated heavy-duty robotic welding lines and laser-guided steel milling to forge our Y-chassis, eliminating weak points completely.

✦ Direct Factory Supply Optimization We operate an entirely self-contained global export network, completely bypassing third-party commercial equipment brokers and trading companies. Sourcing directly from our flagship assembly lines ensures your distribution enterprise secures export-certified platforms at highly aggressive wholesale pricing.

✦ Punishing Multi Axis Dynamic Validation Reliability is verified through relentless testing. Every single Y-Type stacker crane undergoes an exhaustive pre-shipment validation protocol, including high-speed heavily loaded cornering trials, maximum-elevation mast deflection checks, and overnight hydraulic pressure retention trials.

✦ Expedited Lifecycle Technical Support Your high-velocity fulfillment operations cannot afford site downtime. We shield your asset with an ironclad international warranty, backed by a dedicated service division ready to supply immediate remote video diagnostics and rapid air-freight spare parts dispatch

Q: Are you a manufacturer/factory?

A: We are the original manufacturer, supporting online video calls or on-site factory visits anytime, and allowing for full order progress monitoring.

Q: What are your payment terms?

A: We support all major global payment channels, as well as local cash payments, offering flexible and convenient settlement methods.

Q: Is this type of equipment suitable for hazardous environments?

A: We support customized explosion-proof ratings, enabling us to withstand harsh operating environments such as high temperatures and high humidity.

Q: Do you offer custom designs?

A: We provide comprehensive customization services, developing everything from complete machine solutions to specific components to your needs.

Q: Do you provide equipment operation training?

A: We offer 24/7 remote technical guidance and training, with a global team of engineers ready to respond at any time.

Q: What if the machine is damaged during transportation?

A: We have warehouses in multiple locations worldwide, supporting direct shipping, with comprehensive logistics support provided by local agents.

Q: When does the warranty begin?

A: The warranty period begins from the date the product is officially put into use.
