Hot Sale DDR4 I5-7500 3.8GHz Processor Core I5 H310 EDP 4K at 60Hz Display Output 1000M RJ45 Network Card mainboard with cpu
Price:
$126-132 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
HH/OEM/ODM
Product Description
Product Description
Product Name:
Intel i5-8250U DDR4 3.4GHz Processor Core i5 H310 EDP 4K at 60Hz display output 1000M RJ45 Network Card Motherboard with FAN.
Features:
1. Supporting 4K,at 60Hz Display Output;
2. Supporting Memory type DDR4-2133/2400,Max.16GB RAM;
3. Supporting OPS Card,OPS Mini PC Chassis;
4. Supporting Intel FCLGA1151 Sockets.
2. Supporting Memory type DDR4-2133/2400,Max.16GB RAM;
3. Supporting OPS Card,OPS Mini PC Chassis;
4. Supporting Intel FCLGA1151 Sockets.
Specification

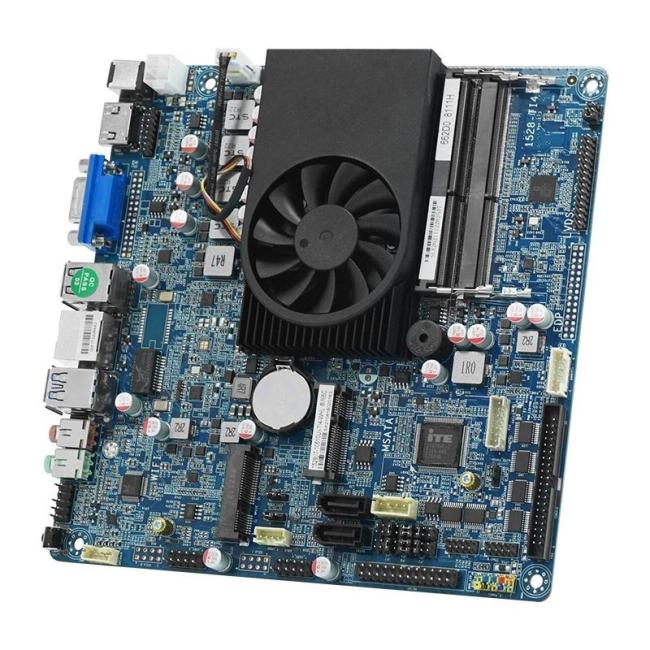

HYH310 Motherboard Spec. | ||
Processor | Skylake 6th Gen.I3 6100 I3 6300 I5 6400 I5 6500 I7 6700; Kaby lake 7th Gen. LGA1151 PIN Core I3 7100 I3 7300 I5 7500 I7 7700. Coffee Lake 8th Gen. I3 8100 I3 8300 I5 8500 I7 8700 | |
Chipset | H310 | |
BIOS | Support LAN boot rom,Wake On LAN,Power ON,Watch dog,etc functions. | |
Display core | Built-in GPU | |
Display Output | Having EDP/LVDS/VGA/HD-MI Pin or Interfaces; Support Independent three display; Support Synchronous&Asynchronous Dual Panel and Three panel Display. | |
1*EDP PIN; 1*LVDS PIN; 1*VGA PIN; 1*HD-MI PIN. | ||
Memory | 1*DDR4 2133/2400 DIMM slot,Support Max.16GB | |
Sound effect | On-board HD Audio Sound Card,support 6 Sound Channel. | |
Network card | 1*RTL8111F (RJ45 LAN). | |
Storage | 2*SATA3.0(standard interface+2 set SATA Power); 1*Mini-PCI-E long card slot(Support WIFI/3G/4G/M-SATA functions); 1*M.2 slot(Support M.2 SATA protocol and PCIE(NVMe)protocol. | |
USB | 6*USB2.0; 4*USB3.0. | |
Power | 1*DC-in 12V or 19V(Interface:the inside diameter of 2.5mm); On-board 4PIN socket. | |

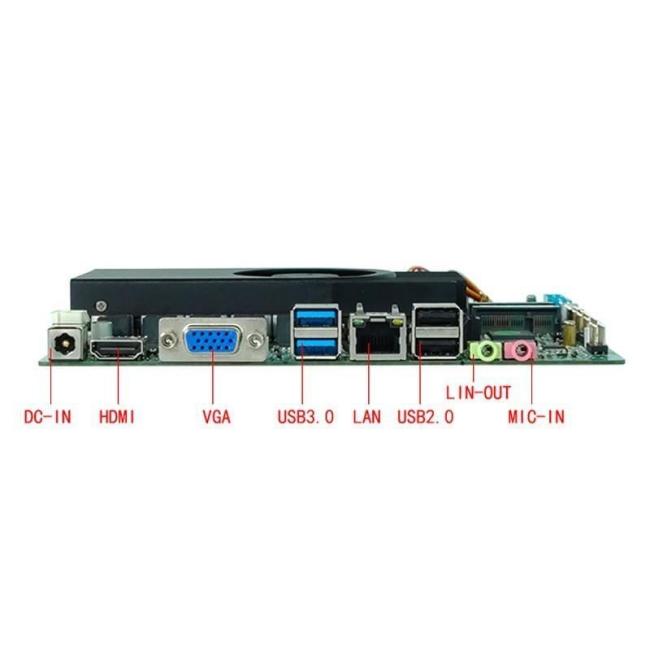

Rear I/Ointerfaces | 2*USB2.0 2*USB3.0 1*VGA interface 1*HD-MI interface 1*RJ45_LAN interface 1*AUDIO pin 1*DC | |

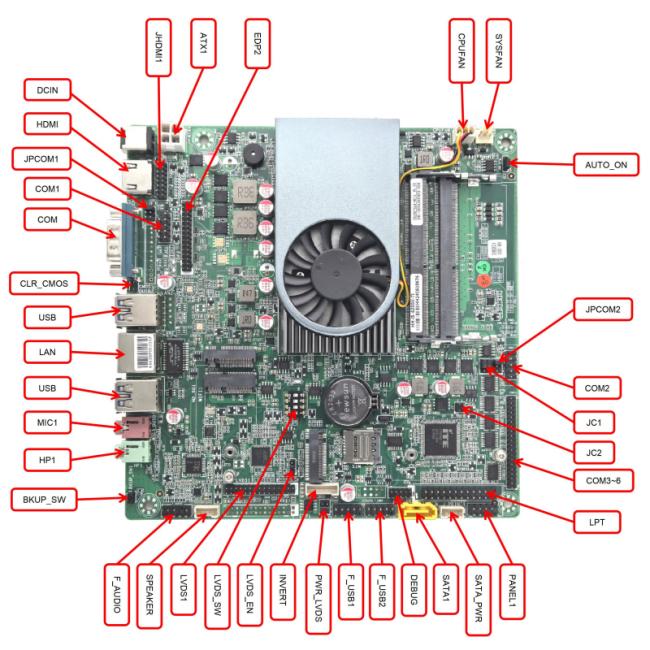

Built-in I/O interfaces | 1*4Pin ATX 1*AUDIO PIN 2*SATA hard disk interface 2*USB2.0 PIN 1*USB3.0 PIN 1*INT_SPK PIN(Power Amplifier) 1*CPU FAN PIN 1*SYS FAN PIN 1*F_PANEL PIN 6*COM PIN 1*SIM Card Slot | |
Temperature | Work:-20°C ~60°C | |
Humidity | 5%~90%,Non-Condensation. | |
Size | 170*170mm | |
Packing & Delivery
Packaging & Shipping
Packing
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and
separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and
separated by stiff cardboards in carton boxes.
1Piece/Carton(G.W. : 1.0-1.5KG);
5Pieces/Carton(G.W. : 5.0-7.5KG);
10Pieces/Carton(G.W. : 10.0-15.0KG);
