2025 Hot Sale OPS-10U Computer 10th Gen I5 10210U Typc-C Quad Core Processor 4K60Hz Display OPS Computer Mini PC
Price:
$165-180 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
huiyuan
Product Description
Product Specifications
Specifications
OPS-10U Mini PC Specification
The 80-pin OPS slot doesn't support hot-swapping.If you hot-swap,it is easy to burn out the motherboard's CPU.
By default,OPS expansion card is not configured. If necessary, please purchase at an additional price.
OPS-10U Mini PC Specification
The 80-pin OPS slot doesn't support hot-swapping.If you hot-swap,it is easy to burn out the motherboard's CPU.
By default,OPS expansion card is not configured. If necessary, please purchase at an additional price.
Host model | OPS-10U | Host size | 120mm(L)*180mm(W)*30mm(H) | ||
CPU | Support 10th generation Comet Lake CPUs: I3-10110U, I5-10210U, I7-10510U, etc | ||||
Memory | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666MHz memory, maximum support 16GB | ||||
Power supply | 1*DC_IN ; 1*ATX(4Pin) Supports 12V/19V voltage, with a DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 65W. It is recommended to use a power supply of 12V/7A or 19V5A or above | ||||
Display function | Integrated Intel UHD Graphics ultra core graphics card, supporting single display, dual display replication, dual display expansion, single display under DOS 1*HDMI 1.4 interface: Supports 4K resolution of 4096/3840* 2160@30Hz 1*DP interface(optional): Supports 4K resolution of 4096/3840* 2160@60Hz 1*HDMI 2.0 interface(Sub card end): Supports 4K resolution of 4096/3840* 2160@60Hz 1*DP interface(Sub card end): Supports 4K resolution of 4096/3840* 2160@60Hz The sub card side HDMI 2.0 interface and sub card side DP interface are two options, default HDMI | ||||
Network function | 1*RJ45 LAN interface: Realtek 8111H Gigabit Ethernet card chip, supporting network wake-up and PCIe diskless boot function 1*Mini-PCIE interface: Supports WIFI/Bluetooth/3G/4G modules | ||||
Hard disk | 1*JSATA interface: 2.5-inch hard drive slot, can directly connect to 2.5-inch hard drive, supports SATA 3.0 1*MSATA interface: Supports MSATA disks and SATA 3.0 | ||||
Sound function | Integrated Realtek ALC662/660 HD digital audio decoder, 6-channel high fidelity audio controller 1*LIN_OUT interface: Supports audio output (green) 1*MIC_IN interface: Supports microphone input (red) | ||||
USB function | 2*USB3.1 interface: Rear standard USB 3.1 Gen2 interface, with a maximum transmission bandwidth of 10.0Gbps 2*USB2.0 interface: Rear standard USB 2.0 interface, maximum transmission bandwidth of 480Mbps (60MB/s) 1*Type-C interface: Standard Type-C interface, supporting USB 3.1 Gen2, with a maximum transmission bandwidth of 10.0Gbps 1*F_USB1pin: Front USB 2.0 pins, one set with 2 * USB 2.0 (9Pin,2*5Pin,2.0mm) | ||||
Switch function | 1*F_PANEL pin: Switch, power light, hard disk light, restart pin (9Pin,2*5Pin,2.0mm) 1*PWR_SW button: switch button 1*AUTO_SW pin: Hardware control power on plug (3Pin,1*3Pin,2.0mm) 1*RST_SW1 button: Support hardware restart | ||||
Other I/O | 1*COM1 pin: Serial port, only supports RS232 (9Pin,2*5Pin,2.0mm) The COM1 on the motherboard side and the TTL on the daughter card side are two options, with the default support for TTL on the daughter card side 1*JCOM1 pin: Control COM1 pin 9 voltage 0V/5V/12V optional(6Pin,2*3Pin,2.0mm) 1*SIM_CARD card slot: Supports SIM card, SIM card is required when using 3G/4G 1*JCMOS button: Motherboard reset and discharge button 1*CLR_CMOS pin: Motherboard reset and discharge pins (3Pin,1*3Pin,2.0mm) 1*CPU_FAN pin: CPU fan pin, 5V, supports temperature control (4Pin,1*4Pin,1.25mm) 1*OPS interface: Standard 80Pin OPS interface 1*One click restore button: Support one click system restoration 1*LED: Power and hard drive status indicator lights | ||||
Operating environment | Working temperature: -20 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation | ||||
BIOS | AMI BIOS, Support power on, timed power on, and intelligent recognition of remote power on/off devices | ||||
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||||
operating system | Supports Win10 60bit, Linux, etc | ||||
Products Description
high-speed solid state drive
Fast reading and writing speed, fast starting and loading speed, strong shock resistance, low noise.

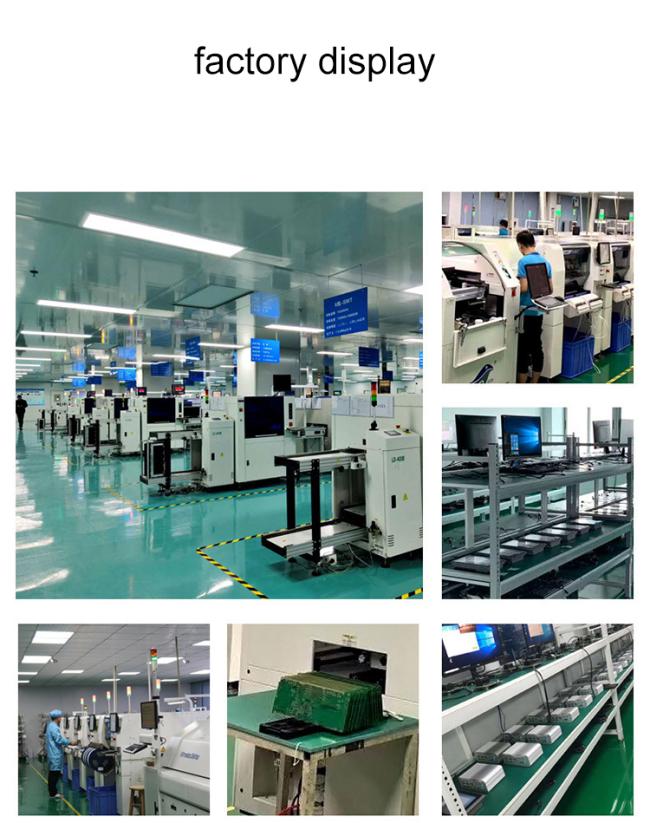

Specializing in the production of mini computers, industrial computers, industrial touch screen computers
Huiyuan intelligence Industrial Control Co.,Ltd is a high-tech firewall appliance company located in China, which specialized in Mini PC, Industrial PC and Firewall Appliance. It is started since 2007. Relative equipments were updated in 2019 to achieve higherquality.
Moreover, we are top sellers in Chinese domestic market and earned awesome reputation . We have 3 subsidiary companies and 6 producing lines founded in Huizhou, Shenzhen and Hongkong separately.
Thanks for support from government and listed companies, from 2018~2020, the sales revenue and ROE have been increasing steadily.
Our certification
FAQ
Q:What's your payment method ?
A: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal, Credit Card
Q: How long would the warranty period be?
A: 1 year warranty. It can be prolonged with extra fee.
Q: Any Discount? A: Yes,we support sample order, mixed batch Orders and mix orders. Please contact with us for discount by large qty.
Q: What's the Shipping way?
A:Goods can be shipped by express, by air flight or by sea. We can do as per your requirements.
Q: Is logo customization available?
A: Laser print is free.
Q: What is the minimum order quantity (MOQ)？
A: We are honored to offer you samples for quality check, MOQ is 1 set.
Q: Which term for after sales？
A: Return and replacement
