2026 Hot Sale Haswell-U I3 I5 I7 Mini Pc 4 Lan Port I5-8250U Industrial Mini Pc with Parallel Port
Price:
$336 / piece
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
huiyuan
Product Description
Product Specifications
Host model | SPC450 | Host size | 215mm*150mm*52mm | ||
Main board model | 4-Inch motherboard M400SE/M500SE | Motherboard size | 165mm*115mm*18mm | ||
CPU | M400SE: Support 4 generation CPU: I3-4010U, I5-4200U, I7-4500U, etc M500SE: Support 5 generations of CPU: I3-5010U, I5-5200U, I7-5500U, etc | ||||
chip set | Haswell-U,Broadwell-U High-speed chipset | ||||
source | 1*DC_IN The inner diameter of the DC head is 2.5MM and supports 12V The motherboard full load power consumption is about 35W.12V5A or above is recommended | ||||
memory | 1*NB-DDR 3 supports 1333 / 1600 MHz memory, low voltage 1.35V, and maximum 8G support | ||||
Display function | M400SE: Intel HD Graphics 4400 graphics controller M500SE: Intel HD Graphics 5500 graphics controller It supports single display, double display replication, double display extension, and single display under DOS 1*VGA DB15 interface: Supports the highest resolution of 1920*1200@60HZ 1*HDMI 1.4 interface: Support 4K resolution 4096/3840*2160@24/30HZ | ||||
Network functions | 2/3/4*LAN: RTL8111H Gigabit network card chip, support network wake up and PXE no disk start function. 1*Mini-PCIE interface: Support WIFI/3G/4G/broadband, etc | ||||
Hard disk function | 1*SATA1 interface: Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps 1*MSATA interface: Support the MINI _ SATA disk, support the MSATA3.0 | ||||
Sound function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller 1*LINE_OUT interface: Supports audio output (green) 1*MIC_IN interface: Support for microphone input (pink) | ||||
USB function | 2*USB3.0 interface: Standard USB3.0 port at the rear 8*USB2.0 interface: Standard USB2.0 interface at the rear (number varies with the network port) | ||||
Switch function | 1*POWER button: switch button | ||||
other I/O | 6*COM interface: Serial port, COM1 supports RS232/RS422/RS485 optional | ||||
Operating environment | Working temperature: -20℃~60℃; working humidity: 5%~95% relative humidity, no condensation | ||||
BIOS | AMI BIOS,Support power-on, scheduled power-on, remote power-on and power-off device intelligent identification | ||||
Watch Dog | Dog watchdog programming, supports hardware reset function (256 levels, 0~255 seconds) | ||||
OS | Support Win10, Win8, Win7, Linux, etc | ||||
Products Description
high-speed solid state drive
Fast reading and writing speed, fast starting and loading speed, strong shock resistance, low noise.
Strong performance
Widely used, office business, game entertainment, TV video, software applications, all functions can be easily used

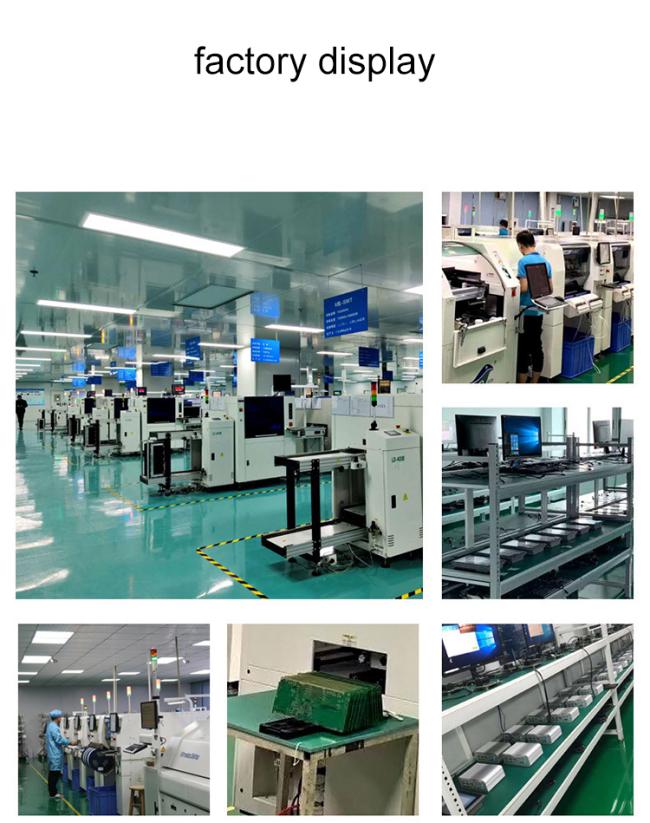

Specializing in the production of mini computers, industrial computers, industrial touch screen computers
Huiyuan intelligence Industrial Control Co.,Ltd is a high-tech firewall appliance company located in China, which specialized in Mini PC, Industrial PC and Firewall Appliance. It is started since 2007. Relative equipments were updated in 2019 to achieve higherquality.
Moreover, we are top sellers in Chinese domestic market and earned awesome reputation . We have 3 subsidiary companies and 6 producing lines founded in Huizhou, Shenzhen and Hongkong separately.
Thanks for support from government and listed companies, from 2018~2020, the sales revenue and ROE have been increasing steadily.
Our certification
FAQ
Q:What's your payment method ?
A: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal, Credit Card
Q: How long would the warranty period be?
A: 1 year warranty. It can be prolonged with extra fee.
Q: Any Discount? A: Yes,we support sample order, mixed batch Orders and mix orders. Please contact with us for discount by large qty.
Q: What's the Shipping way?
A:Goods can be shipped by express, by air flight or by sea. We can do as per your requirements.
Q: Is logo customization available?
A: Laser print is free.
Q: What is the minimum order quantity (MOQ)？
A: We are honored to offer you samples for quality check, MOQ is 1 set.
Q: Which term for after sales？
A: Return and replacement
