Intel I3 I5 I7 Industrial Fanless Mini PC Embedded Computer Dual LAN 2SO-DIMM DDR4 RAM COM/Parallel Port Factory Automation
Price:
$398-440 / unit
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
huiyuan
Product Description
Recommend Products
Products Description
BP06A0-6C1L
Supports 6 RS232 connection ports (RS485 optional), 8USB port configuration, optional dual network ports (USB ports will be changed to 6), Windows 8/10/11, Linux operating system, Intel 6\7\8\9th Intel Core processor
Product Paramenters
STANDARD PARAMETER | cpu | Intel 6\7\8\9th Intel Core |
internal storage | 2 * SO-DIMM DDR4 2400/2666/3200MHz memory | |
storage | 1 * M.2 2280 Interface support NVME and SATA Dual protocol (adaptive) 1 * 2.5" SATA HDD/ | |
graphics card | INTEL integrated graphics（It depends on the CPU model） | |
display output | HDMI/VGA(Optional DP) ransactional concurrent/Asynchronous dual display | |
network | LAN REALTEK 8111H Gigabit Ethernet (Optional double network LAN2 Intel i219) WIFI 1*M.2 2230 for Wifi+B | |

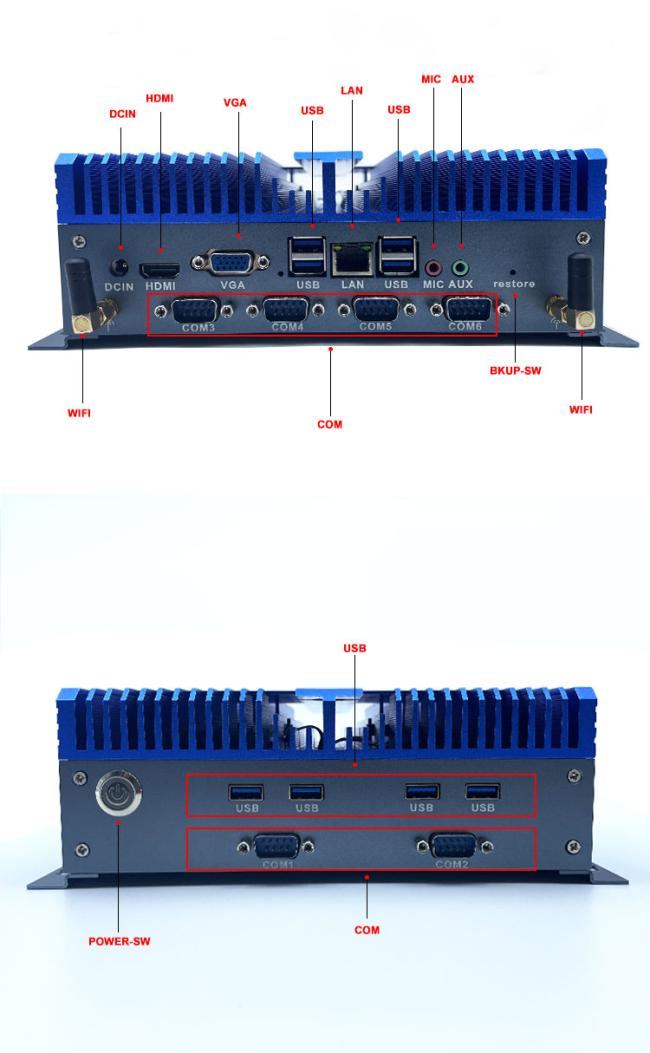

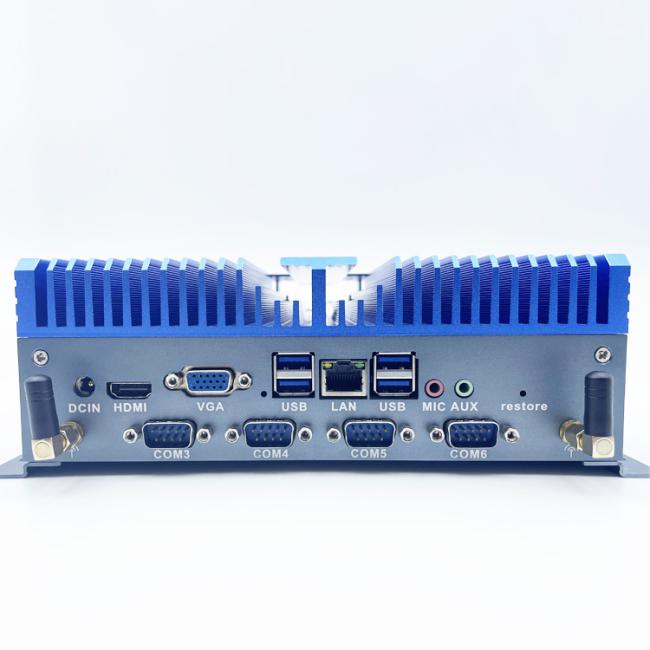

I/O PORT | REAR OUT | 1*DCIN 1*HDMI 1*VGA(Optional DP) 4*USB3.0 1* LAN(You can select dual network ports, two less USB3.0) 1*Line out+mic 1*CLR_CMOS 1*BKUP_SW(one-key reset) 4*COM(Optional 485) |
FRONT OUT | 1*POWER 4*USB2.0 2*COM(Optional 485) | |
power supply | power input | 12V7.5A/19V4.74A |
size | size dimension | bare computer: 210*200*78 With mounting foot size：240*200*78mm |
t&h temperature and humidity | operating temperature | 0°C~ 45°C |
storage temperature | -40°C~ 80°C | |
operating humidity | 10% - 95% @40°C non-condensing | |
system | Support operating system | Windows 8/10/11, Linux |
Strong environmental adaptability
Due to the harsh environment of the industrial site, the industrial computer is
required to have a strong ability to adapt to the environment, such as high
requirements for temperature/humidity variation range;
With dustproof, anti-corrosion, anti-shock dynamic impact ability;
It has good electromagnetic compatibility and high anti-interference ability
Say goodbye to dust operating temperature 0°C~ 45°C 365*24 hours long time operation
10% - 95% @40°Cnon-condensing High anti-jamming capability Shock-proof dynamic impact capability
Details Images

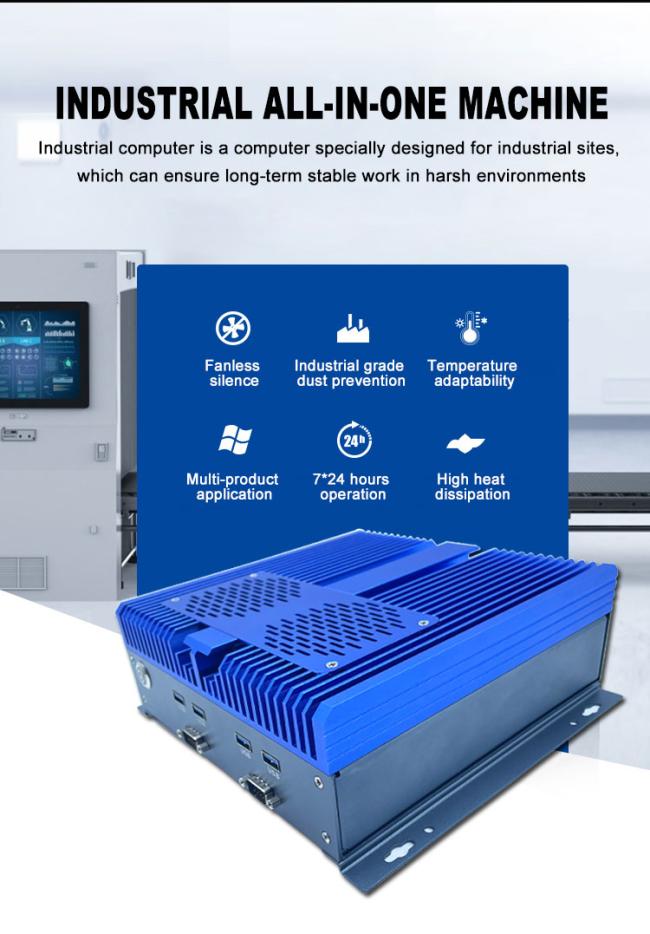

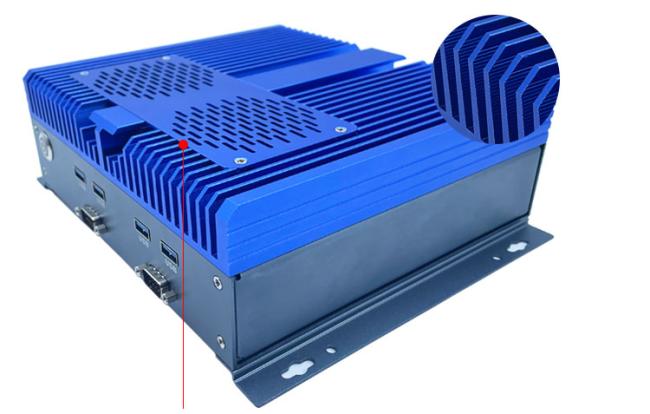

Compatible with fanless and external fan switching
The surface of the industrial computer adopts the strip grid shape,
closed one molding, the whole machine has no heat dissipation hole design,
which can ensure the external air circulation, improve the heat dissipation efficiency,
the back fan compatible design, adding the fan strong heat dissipation, no fan, no noise,
quiet use more comfortable.
No fan, compatible with external fan
Multitask display
It can be used together with external VGA and HDMI at the same time
(extended or copied display can be selected by customers)
to achieve multi-task display platform

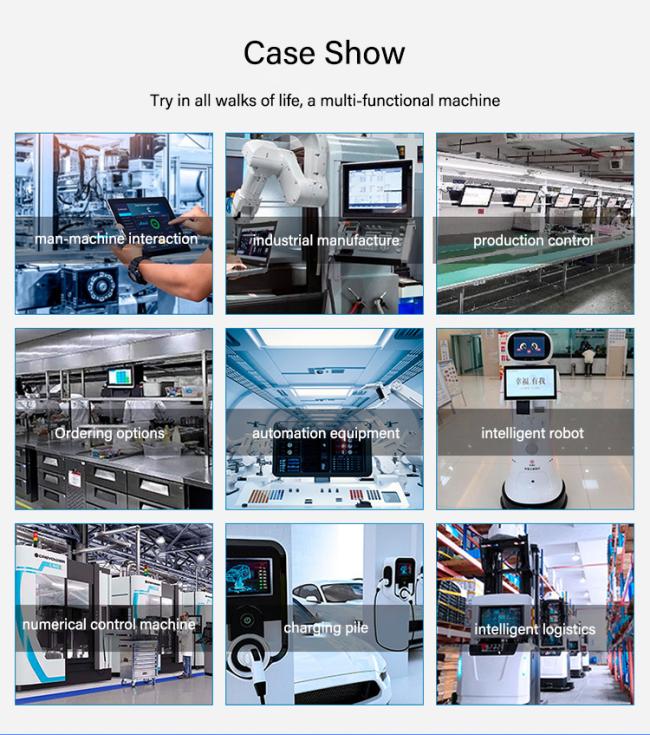

Application industries and fields
scenario one.
Industrial field control, food processing,
production line machinery and
equipment control, CNC machine tool
industrial automation, instrument
panel, etc.
Scenario two.
Cinema, bar, golf course, KTV,
beauty salon, club, resort, sauna
leisure center, etc.
Scenario three.
Shopping malls, supermarkets,
Western restaurants, fast food
restaurants, hotels, gourmet
restaurants, chain stores,
specialty stores, shopping
centers, etc.
Scenario four.
Commercial banks, ATMs, self-service
inquiry machines, insurance
companies, fund companies,
securities companies, etc.
Scenario Six.
Building advertising machine,
information inquiry machine,
intelligent transportation, information
release system, monitoring system, etc.
Scenario seven.
Medical equipment, patient
monitoring system, registration
machine, medical imaging, medical
inquiry machine, etc.
Scenario eight.
Exhibition hall, bookstore, museum,
gymnasium, conference center,
talent market, park, school, mail, etc.
Product packaging
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in guangzhou, China.
3.Q: How about after-sales service?
A: Two years warranty except man-made damage. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
5.Q: Can I have my logo printed on the computers?
A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: 1). Put your brand on the device housing by laser printing
2). Put your own label below the device housing;
3). Supply Warranty Card in the package for free;
4). Make the booting interface with your company logo or brand for free.
7.Q: What Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, 1-3 days for samples, 7 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
