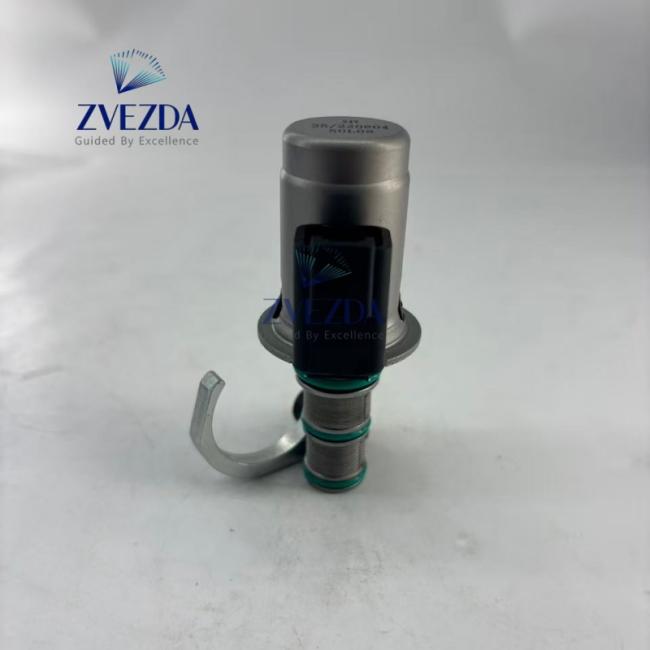

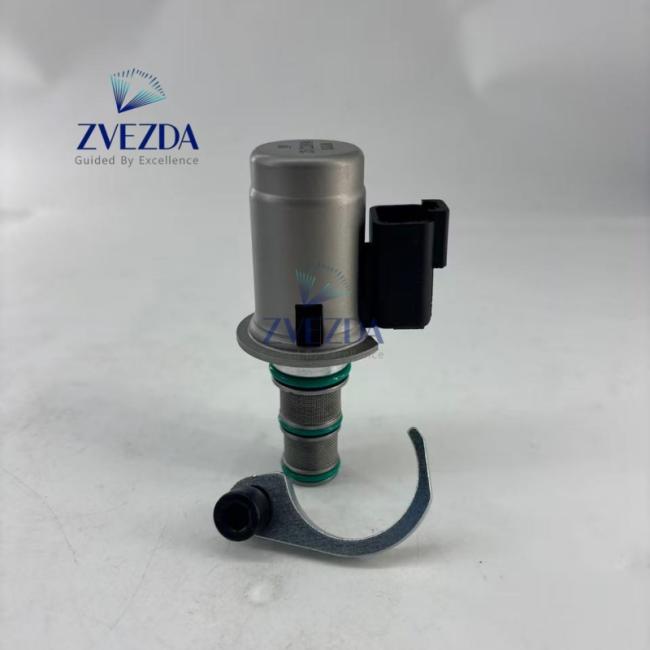

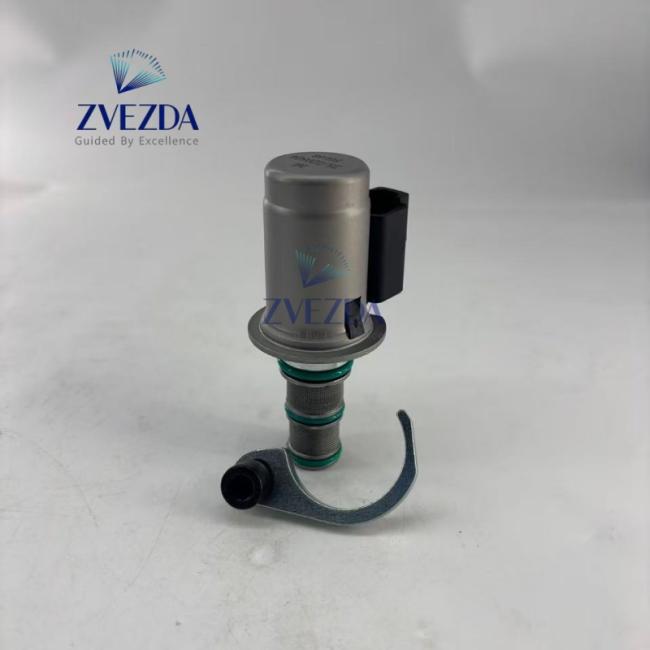

459/M2874 Transmission Hydraulic Solenoid 25/220804 For 3CX 4CX
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description
459/M2874 Transmission Hydraulic Solenoid 25/220804 For 3CX 4CX
It is the core pressure regulating component of powershift transmission system. It converts ECU electrical signals into stable proportional hydraulic pressure to control gear shift valve spool, realize smooth automatic gear shifting without jerk during loading, digging and road transfer work.
Product Details
| Specification | Detailed Information |
|---|---|
| Full Product Name | JCB 3CX 4CX Backhoe Loader 24V Powershift Transmission Solenoid Valve Complete Kit With Bracket & Bolt |
| OEM OE Number | 25/220804 / 459/M2874 |
| Compatible Machine | JCB 3CX, JCB 4CX Backhoe Loader |
| Rated Voltage | DC24V |
| Condition | 100% Brand New Aftermarket OEM Equivalent Complete Kit |
| Origin | Guangdong, China |
| Core Material | Hardened Alloy Spool + Low Drift Pure Copper Electromagnetic Coil |
| Supporting Accessories | Galvanized Mounting Bracket + High Strength Fixing Bolt |
| Wiring Design | Black Single-row Fully Sealed Waterproof Plug |
| Installation Position | Backhoe Loader Powershift Transmission Valve Cartridge Hole |
| Shipment Lead Time | Dispatched within 1–7 working days after payment confirmation |
| Outer Packaging | Neutral Export Carton + Shockproof EPE Foam Inner Liner |
| Komatsu Parts | JCB Parts | Other Brand Parts |
|---|---|---|
| 20Y-43-41780 | 331/30884 | 4520781 |
| 22U-06-22420 | 331/30885 | 4581230 |
| 22U-06-22380 | 331/30886 | 4601592 |
| 782-5301-301 | 701/80284 | 4632710 |
| 782-5301-302 | 701/80285 | 4678921 |
| 7824-30-1600 | 11S-49 | 4756890 |
| 7825-30-1301 | 60117463 | 4721563 |
| 7825-30-1302 | 60117463LM | 4739125 |
| 7861-92-4130 | 60117464 | 4772106 |
| 7861-92-4131 | 60117465 | 4789321 |
| 20Y-43-41781 | YQ05.251.046 | 4801234 |
| 20Y-43-41782 | YQ05.251.047 | 106-0107 |
| 22U-06-22390 | YQ05.251.048 | 106-0108 |
| 22U-06-22400 | YN20S00002F3 | 106-0109 |
| 7821-30-1500 | YN20S00002F4 | 165-9569 |
| 7822-30-1200 | YN20S00002F5 | 206-3305 |
| 7823-30-1400 | LQ50S00001P1 | 134-0649 |
| 7826-30-1100 | LQ50S00001P2 | 144-6670 |
| 7827-30-1000 | 8-98074-566-0 | 152-8973 |
| 7828-30-0900 | 8-98074-567-0 | 171-2540 |
| 7829-30-0800 | 4812369 | 183-4216 |
| 20Y-43-41790 | 256-7891 | 191-6527 |
| 20Y-43-41800 | 300661-00004A | 212-7890 |
| 708-2H-25240 | 21Q6-20820 | 214-5620 |
| 702-21-07010 | K1013849 | 0419-9902 |
| 702-21-07311 | 332/G0912 | 0419-9903 |
| 702-21-07610 | 60117466 | 223-8181 |
| 702-21-57400 | YQ05.251.049 | 224-2092 |
| 585-9230 | YN20S00003F1 | 225-0300 |
| 627-2304 | 7820-30-1700 | 253-3809 |
| 585-9231 | 4791230 | 231-8194 |
| 702-21-58100 | 403-0363 | 198-6528 |
| 702-21-57500 | 485-5747 | 328-4314 |
| 702-21-60700 | 375-4414-02 | 384-3892 |
| 714-07-16730 | 485-9850-03 | 485-5747 |
| 201-0950 | 485-9850-03 | 491-0908 |
| 25/220804 | 708-2H-25240 | 25/220804 |
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which backhoe loader fits transmission solenoid kit 25/220804 24V? | This 24V threaded cartridge transmission solenoid complete kit with bracket and bolt is specially manufactured for JCB 3CX and 4CX powershift backhoe loader transmission hydraulic system. |
| Q2 | What shift control function does this solenoid realize for powershift gearbox? | It receives ECU drive signal to adjust transmission control pressure, control shift valve spool stroke, realize stepless smooth automatic gear shifting for forward, reverse and speed gears. |
| Q3 | What abnormal transmission faults will occur if this solenoid fails? | Hard gear shifting, obvious jerk during shift, transmission slipping under load, unstable driving speed, delayed gear response and continuously high transmission oil temperature. |
| Q4 | Do I need to buy separate bracket and bolt during replacement? | No, this product is sold as a full assembly, matched galvanized mounting bracket and fixing bolt are included in the package, ready for direct installation without extra parts purchase. |
| Q5 | What durable design adapts to long-time construction site working conditions? | Multi-layer high temperature HNBR sealing rings, integral rust-proof metal valve body, fully sealed waterproof plug, matched galvanized anti-rust bracket, resist long-term hydraulic oil corrosion, vibration and high temperature. |
| Q6 | How to quickly check coil damage before installation? | Use multimeter to measure coil resistance, normal range 13–15 ohms; infinite resistance means open circuit, resistance lower than 9 ohms indicates coil short circuit and cannot be installed. |
