Displacement Control Hydraulic Proportional Solenoid Kobelco Parts 31Q6-20131 Fit R220-9
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description

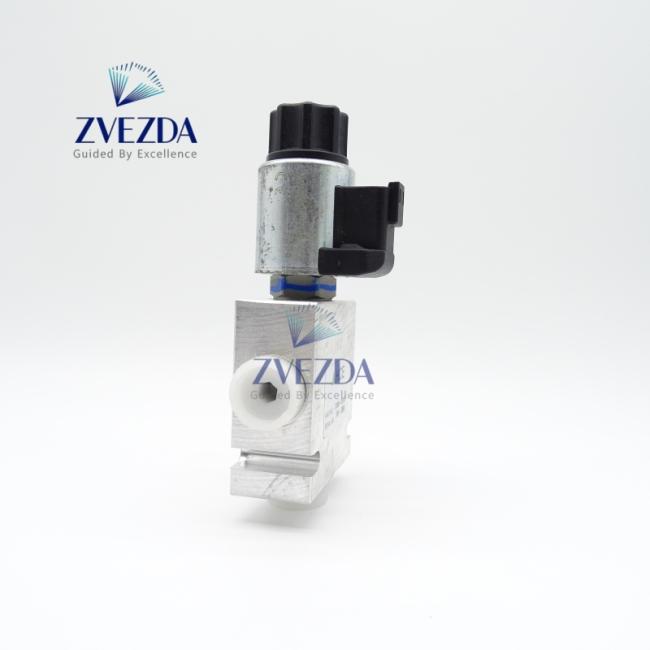

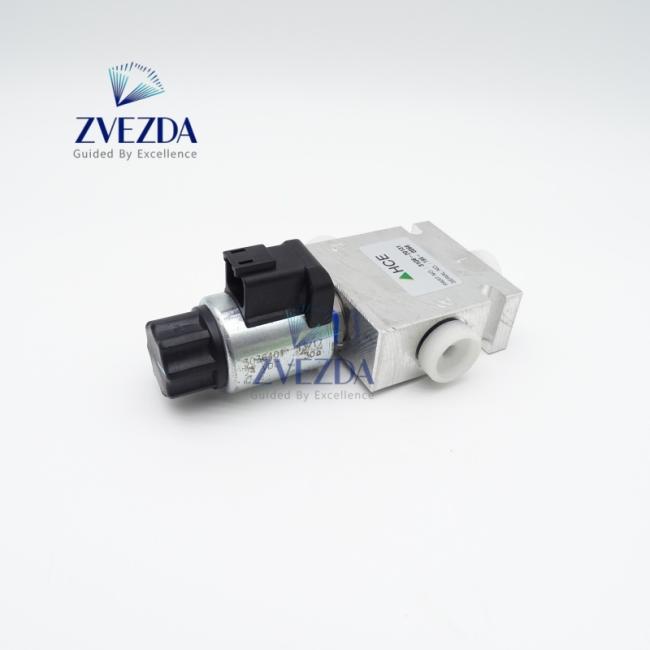

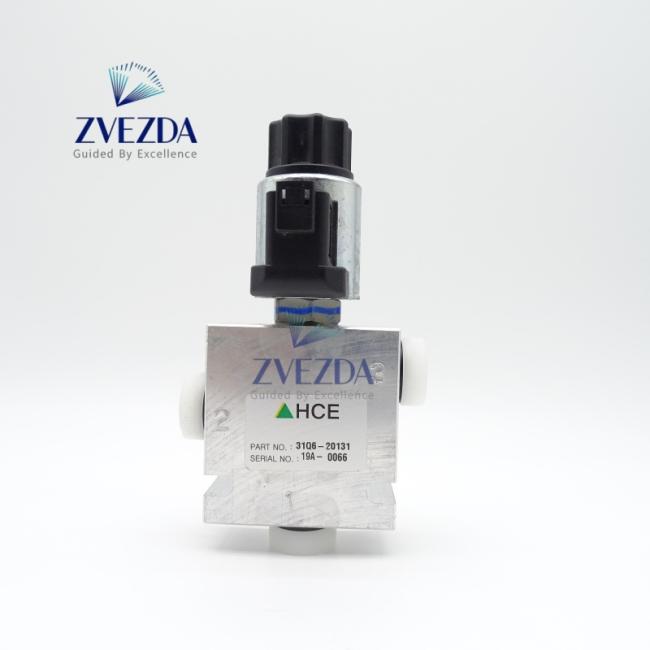

31Q6-20131 Hydraulic Proportional Solenoid OE 31Q620131 Fit R220-9 Parts
It is the core pilot pressure regulating component of Hyundai 9-series excavator hydraulic system. It converts ECU PWM electrical signals into linear proportional pilot pressure, precisely controls the displacement of main valve spool, realizes smooth linear operation of boom, arm, bucket and swing without jerky action during mining and earthmoving work.
Product Details
| Specification | Detailed Information |
|---|---|
| Full Product Name | Hyundai R220-9 Hydraulic Pilot Proportional Solenoid Valve Assembly 31Q6-20131 |
| OEM OE Number | 31Q6-20131 / 31Q620131 |
| Compatible Machine | Hyundai R220-9, R140LC-9, R180LC-9, R290LC-9 9-series Excavator |
| Rated Voltage | DC24V |
| Condition | 100% Brand New Aftermarket OEM Equivalent Complete Assembly |
| Origin | Guangdong, China |
| Core Material | Nitride Hardened Alloy Spool + Low Drift Pure Copper Electromagnetic Coil |
| Wiring Design | Standard 2-Pin Fully Sealed Waterproof Plug |
| Installation Position | Excavator Main Multi-way Control Valve Pilot Oil Circuit |
| Shipment Lead Time | Dispatched within 1–7 working days after payment confirmation |
| Outer Packaging | Neutral Export Carton + Shockproof EPE Foam Inner Liner |
| Komatsu Parts | JCB Parts | Other Brand Parts |
|---|---|---|
| 20Y-43-41780 | 331/30884 | 4520781 |
| 22U-06-22420 | 331/30885 | 4581230 |
| 22U-06-22380 | 331/30886 | 4601592 |
| 782-5301-301 | 701/80284 | 4632710 |
| 782-5301-302 | 701/80285 | 4678921 |
| 7824-30-1600 | 11S-49 | 4756890 |
| 7825-30-1301 | 60117463 | 4721563 |
| 7825-30-1302 | 60117463LM | 4739125 |
| 7861-92-4130 | 60117464 | 4772106 |
| 7861-92-4131 | 60117465 | 4789321 |
| 20Y-43-41781 | YQ05.251.046 | 4801234 |
| 20Y-43-41782 | YQ05.251.047 | 106-0107 |
| 22U-06-22390 | YQ05.251.048 | 106-0108 |
| 22U-06-22400 | YN20S00002F3 | 106-0109 |
| 7821-30-1500 | YN20S00002F4 | 165-9569 |
| 7822-30-1200 | YN20S00002F5 | 206-3305 |
| 7823-30-1400 | LQ50S00001P1 | 134-0649 |
| 7826-30-1100 | LQ50S00001P2 | 144-6670 |
| 7827-30-1000 | 8-98074-566-0 | 152-8973 |
| 7828-30-0900 | 8-98074-567-0 | 171-2540 |
| 7829-30-0800 | 4812369 | 183-4216 |
| 20Y-43-41790 | 256-7891 | 191-6527 |
| 20Y-43-41800 | 300661-00004A | 212-7890 |
| 708-2H-25240 | 21Q6-20820 | 214-5620 |
| 702-21-07010 | K1013849 | 0419-9902 |
| 702-21-07311 | 332/G0912 | 0419-9903 |
| 702-21-07610 | 60117466 | 223-8181 |
| 702-21-57400 | YQ05.251.049 | 224-2092 |
| 585-9230 | YN20S00003F1 | 225-0300 |
| 627-2304 | 7820-30-1700 | 253-3809 |
| 585-9231 | 4791230 | 231-8194 |
| 702-21-58100 | 403-0363 | 198-6528 |
| 702-21-57500 | 485-5747 | 328-4314 |
| 702-21-60700 | 375-4414-02 | 384-3892 |
| 714-07-16730 | 485-9850-03 | 485-5747 |
| 201-0950 | 485-9850-03 | 491-0908 |
| 25/220804 | 491-0908 | 553-5204 |
| 25/220994 | 25/220804 | 25/220994 |
| 31Q6-20131 | 25/220994 | 31Q6-20131 |
Frequently Asked Questions
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which Hyundai excavators fit proportional solenoid valve 31Q6-20131? | This integrated block pilot proportional solenoid is specially manufactured for Hyundai R220-9, also compatible with R140LC-9, R180LC-9, R290LC-9 9-generation hydraulic excavators. |
| Q2 | What core pilot pressure control function does this solenoid provide? | It receives ECU electrical signal to output linear proportional pilot oil pressure, adjust main valve spool opening stroke, realize stepless smooth speed control of boom, arm, bucket and swing actions. |
| Q3 | What abnormal hydraulic faults will occur if this solenoid fails? | Slow working movement, insufficient digging breakout force, delayed handle response, unstable pump pressure, shaking during operation and continuous high hydraulic oil temperature. |
| Q4 | Is complicated pipeline disassembly required during replacement? | No, the whole valve assembly is pre-integrated with internal oil passages, only remove the fixing bolts and plug the wiring connector, no need to split the main control valve body. |
| Q5 | What wear-resistant high-temperature design adapts to long-term construction work? | Full nitriding hardened spool, double HNBR high temperature oil-resistant sealing rings, integral anti-rust aluminum valve block, fully sealed two-pin waterproof plug, resist hydraulic oil corrosion, vibration and high heat. |
| Q6 | How to quickly inspect coil damage before installation? | Use multimeter to measure coil resistance, normal range 13–16 ohms; infinite resistance means open circuit, resistance below 9 ohms indicates internal coil short circuit and cannot be installed. |
