Customized Hydraulic Hammer Excavator Solenoid Valve 31Q6-91220 For R225LC-7
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description

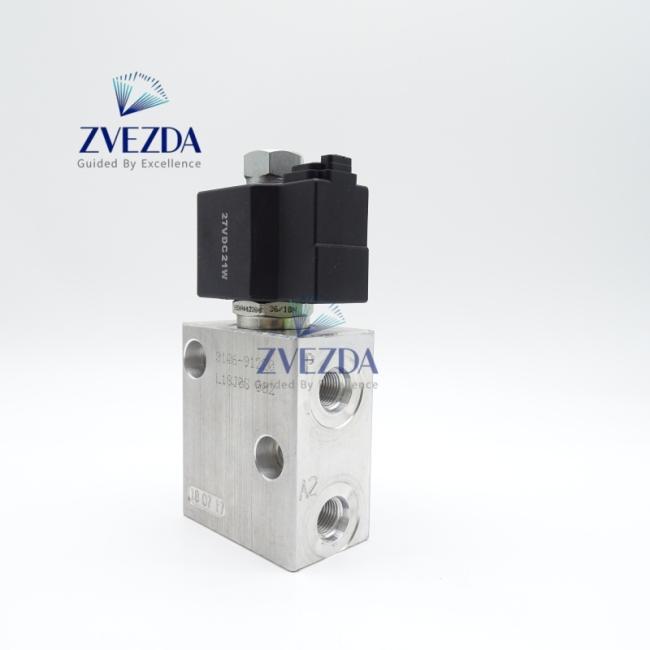

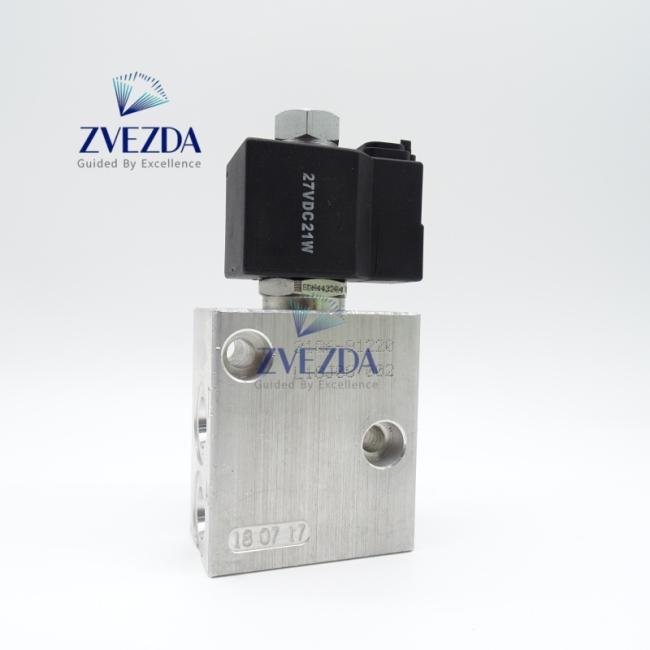

31Q691220 Hydraulic Hammer Solenoid Valve 31Q6-91220 For R225LC-7
Valve block mounting hole spacing, coil resistance, plug pin layout and oil port thread size are fully consistent with original OEM assembly, direct integral bolt replacement without modifying hydraulic pipeline or vehicle wiring harness, greatly shorten equipment maintenance downtime.
Product Details
| Specification | Detailed Information |
|---|---|
| Full Product Name | Hyundai R225LC-7 Excavator Hydraulic Breaker Control Solenoid Valve Assembly 31Q6-91220 |
| OEM OE Number | 31Q6-91220 / 31Q691220 |
| Compatible Machine | Hyundai R225LC-7, R210LC-7, R140LC-9, R305-9 Excavator |
| Rated Voltage | DC24V |
| Condition | 100% Brand New Aftermarket OEM Equivalent Complete Assembly |
| Origin | Guangdong, China |
| Core Material | Nitride Hardened Wear-resistant Alloy Spool + Low Drift Pure Copper Electromagnetic Coil |
| Wiring Design | Standard 2-Pin Fully Sealed Waterproof Plug |
| Installation Position | Excavator Auxiliary Hydraulic Hammer Control Oil Circuit |
| Shipment Lead Time | Dispatched within 1–7 working days after payment confirmation |
| Outer Packaging | Neutral Export Carton + Shockproof EPE Foam Inner Liner |
| Komatsu Parts | JCB Parts | Other Brand Parts |
|---|---|---|
| 20Y-43-41780 | 331/30884 | 4520781 |
| 22U-06-22420 | 331/30885 | 4581230 |
| 22U-06-22380 | 331/30886 | 4601592 |
| 782-5301-301 | 701/80284 | 4632710 |
| 782-5301-302 | 701/80285 | 4678921 |
| 7824-30-1600 | 11S-49 | 4756890 |
| 7825-30-1301 | 60117463 | 4721563 |
| 7825-30-1302 | 60117463LM | 4739125 |
| 7861-92-4130 | 60117464 | 4772106 |
| 7861-92-4131 | 60117465 | 4789321 |
| 20Y-43-41781 | YQ05.251.046 | 4801234 |
| 20Y-43-41782 | YQ05.251.047 | 106-0107 |
| 22U-06-22390 | YQ05.251.048 | 106-0108 |
| 22U-06-22400 | YN20S00002F3 | 106-0109 |
| 7821-30-1500 | YN20S00002F4 | 165-9569 |
| 7822-30-1200 | YN20S00002F5 | 206-3305 |
| 7823-30-1400 | LQ50S00001P1 | 134-0649 |
| 7826-30-1100 | LQ50S00001P2 | 144-6670 |
| 7827-30-1000 | 8-98074-566-0 | 152-8973 |
| 7828-30-0900 | 8-98074-567-0 | 171-2540 |
| 7829-30-0800 | 4812369 | 183-4216 |
| 20Y-43-41790 | 256-7891 | 191-6527 |
| 20Y-43-41800 | 300661-00004A | 212-7890 |
| 708-2H-25240 | 21Q6-20820 | 214-5620 |
| 702-21-07010 | K1013849 | 0419-9902 |
| 702-21-07311 | 332/G0912 | 0419-9903 |
| 702-21-07610 | 60117466 | 223-8181 |
| 702-21-57400 | YQ05.251.049 | 224-2092 |
| 585-9230 | YN20S00003F1 | 225-0300 |
| 627-2304 | 7820-30-1700 | 253-3809 |
| 585-9231 | 4791230 | 231-8194 |
| 702-21-58100 | 403-0363 | 198-6528 |
| 702-21-57500 | 485-5747 | 328-4314 |
| 702-21-60700 | 375-4414-02 | 384-3892 |
| 714-07-16730 | 485-9850-03 | 485-5747 |
| 201-0950 | 485-9850-03 | 491-0908 |
| 25/220804 | 491-0908 | 553-5204 |
| 25/220994 | 25/220804 | 25/220994 |
| 31Q6-20131 | 25/220994 | 31Q6-91220 |
| 31Q6-91220 | 31Q6-20131 | 31Q6-91220 |
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which Hyundai excavators fit breaker solenoid valve 31Q6-91220? | This integrated aluminum block hydraulic hammer solenoid is specially manufactured for Hyundai R225LC-7, also compatible with R210LC-7, R140LC-9, R305-9 series construction excavators. |
| Q2 | What core hammer control function does this solenoid realize? | It receives ECU electrical signal to switch the auxiliary hydraulic oil circuit, control the high-pressure oil supply of hydraulic breaker, realize automatic start and stop of rock breaking hammer. |
| Q3 | What abnormal breaker faults will occur if this solenoid malfunctions? | Hydraulic hammer no striking force, intermittent hammer action, breaker cannot start, delayed hammer response, unstable pump pressure and continuously rising hydraulic oil temperature. |
| Q4 | Is complicated pipeline disassembly required during replacement? | No, the whole valve assembly is pre-integrated with internal oil passages, only remove two fixing bolts and unplug the wiring connector, no need to split the main hydraulic valve block. |
| Q5 | What wear-resistant high-pressure design adapts to long quarry operation? | Full nitriding hardened spool, double HNBR high-pressure oil-resistant sealing rings, solid anti-rust aluminum valve block, fully sealed two-pin waterproof plug, resist high-pressure hydraulic oil erosion, strong vibration and high heat. |
| Q6 | How to quickly check coil failure before installation? | Use multimeter to measure coil resistance, normal range 14–16 ohms; infinite resistance means coil open circuit, resistance below 9 ohms indicates internal short circuit and cannot be installed. |
