4I5674 4I-5674 Solenoid Coil For E320 Excavator Main Pump
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description

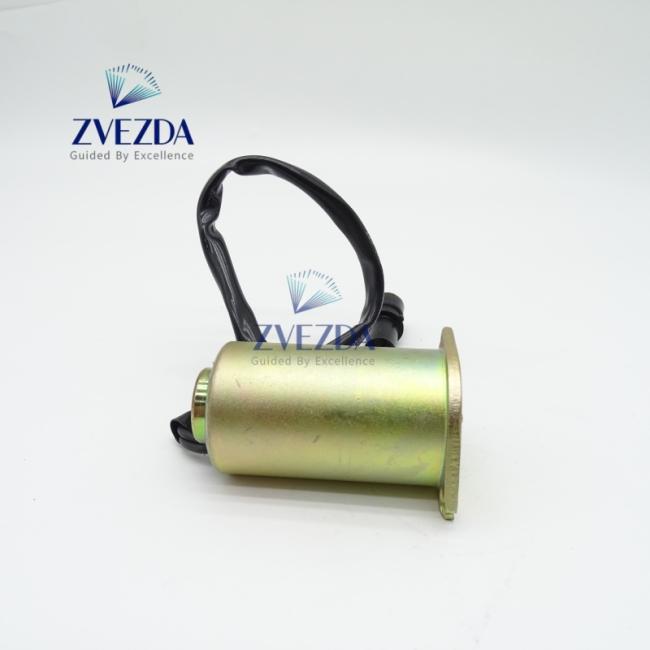

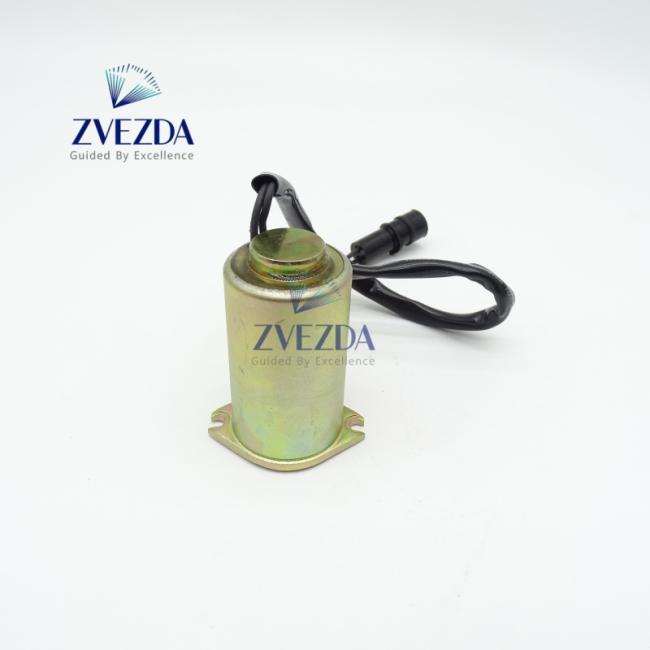

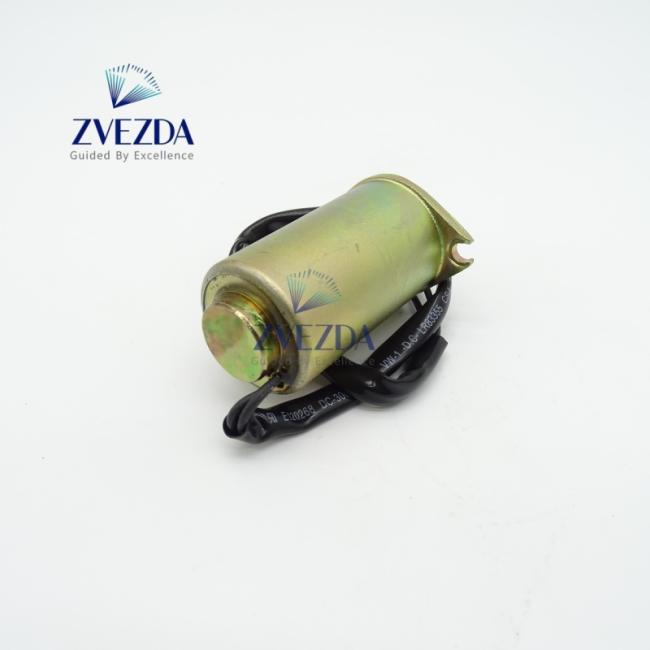

4I5674 4I-5674 Solenoid Coil For E320 Excavator Main Pump
It is the core electromagnetic driving component of excavator power adjustment system. It receives ECU PWM control signal to generate stable proportional magnetic force, pushes the built-in valve spool to adjust pump swash plate angle, dynamically balances engine power and hydraulic output, effectively avoids engine stall under heavy digging load.
Product Details
| Specification | Detailed Information |
|---|---|
| Brand | ZVEZDA |
| Full Product Name | CAT E320 E312 E315 Excavator 24V LS Load Sensing Main Pump Proportional Solenoid Coil 4I-5674 (4I5674) |
| OEM OE Number | 4I-5674 / 4I5674 |
| Compatible Machine | E320, E312, E315, E320L C-series Hydraulic Excavator |
| Matched Component | Kawasaki Variable Displacement Main Pump Regulator Proportional Valve |
| Rated Voltage | DC24V |
| Condition | 100% Brand New Aftermarket Independent Coil |
| Origin | Guangdong, China |
| Winding Material | High Purity Low-loss Pure Copper Enameled Wire |
| Outer Shell | Anodized Anti-corrosion Aluminum Shell |
| Wiring Connector | Black 2-Pin Fully Sealed Waterproof Plug |
| Installation Position | Excavator Main Pump Proportional Valve Outer Sleeve Coil |
| Shipment Lead Time | Dispatched within 1–7 working days after payment confirmation |
| Outer Packaging | Neutral Export Carton + Shockproof EPE Foam Inner Liner |
| Komatsu Parts | JCB Parts | Other Brand Parts |
|---|---|---|
| 20Y-43-41780 | 331/30884 | 4520781 |
| 22U-06-22420 | 331/30885 | 4581230 |
| 22U-06-22380 | 331/30886 | 4601592 |
| 782-5301-301 | 701/80284 | 4632710 |
| 782-5301-302 | 701/80285 | 4678921 |
| 7824-30-1600 | 11S-49 | 4756890 |
| 7825-30-1301 | 60117463 | 4721563 |
| 7825-30-1302 | 60117463LM | 4739125 |
| 7861-92-4130 | 60117464 | 4772106 |
| 7861-92-4131 | 60117465 | 4789321 |
| 20Y-43-41781 | YQ05.251.046 | 4801234 |
| 20Y-43-41782 | YQ05.251.047 | 106-0107 |
| 22U-06-22390 | YQ05.251.048 | 106-0108 |
| 22U-06-22400 | YN20S00002F3 | 106-0109 |
| 7821-30-1500 | YN20S00002F4 | 165-9569 |
| 7822-30-1200 | YN20S00002F5 | 206-3305 |
| 7823-30-1400 | LQ50S00001P1 | 134-0649 |
| 7826-30-1100 | LQ50S00001P2 | 144-6670 |
| 7827-30-1000 | 8-98074-566-0 | 152-8973 |
| 7828-30-0900 | 8-98074-567-0 | 171-2540 |
| 7829-30-0800 | 4812369 | 183-4216 |
| 20Y-43-41790 | 256-7891 | 191-6527 |
| 20Y-43-41800 | 300661-00004A | 212-7890 |
| 708-2H-25240 | 21Q6-20820 | 214-5620 |
| 702-21-07010 | K1013849 | 0419-9902 |
| 702-21-07311 | 332/G0912 | 0419-9903 |
| 702-21-07610 | 60117466 | 223-8181 |
| 702-21-57400 | YQ05.251.049 | 224-2092 |
| 585-9230 | YN20S00003F1 | 225-0300 |
| 627-2304 | 7820-30-1700 | 253-3809 |
| 585-9231 | 4791230 | 231-8194 |
| 702-21-58100 | 403-0363 | 198-6528 |
| 702-21-57500 | 485-5747 | 328-4314 |
| 702-21-60700 | 375-4414-02 | 384-3892 |
| 714-07-16730 | 485-9850-03 | 485-5747 |
| 201-0950 | 485-9850-03 | 491-0908 |
| 25/220804 | 491-0908 | 553-5204 |
| 25/220994 | 25/220804 | 25/220994 |
| 31Q6-20131 | 25/220994 | 31Q6-91220 |
| 31Q6-91220 | 31Q6-20131 | 086-1879 |
| 086-1879 | 31Q6-91220 | 31765-FC000 |
| 31765-FC000 | 086-1879 | 053400-0745 |
| 053400-0745 | 31765-FC000 | 419-15-47221 |
| 419-15-47221 | 053400-0745 | KDRDE5K-20/40C04 |
| KDRDE5K-20/40C04 | 419-15-47221 | 31Q6-91720 |
| 31Q6-91720 | KDRDE5K-20/40C04 | 25/220804 |
| 25/220804 | 31Q6-91720 | 25/974628 |
| 25/974628 | 25/220804 | 4I-5674 |
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which CAT excavator fits 24V main pump coil 4I-5674 4I5674? | This LS proportional solenoid coil is specially designed for CAT E320, also compatible with E312, E315, E320L C-series excavators equipped with Kawasaki main pump. |
| Q2 | What is the power matching principle of this solenoid coil? | It outputs proportional magnetic force according to ECU signal to adjust pump swash plate angle, balance engine load and hydraulic output, and prevent engine stall during heavy load excavation. |
| Q3 | What machine failures will be caused if this coil burns out? | Severe loss of digging power, unstable pump pressure, jitter during operation, slow movement of boom and arm, and continuously rising hydraulic oil temperature. |
| Q4 | Is it necessary to disassemble the entire hydraulic main pump to replace this coil? | No, the coil adopts sleeve installation structure; just pull out the old coil directly from the valve core and install the new one, pump disassembly is not required. |
| Q5 | What anti-aging sealing process adapts to harsh pump cabin environment? | Multi-layer high-temperature insulation paper + full epoxy encapsulation, anodized anti-rust aluminum shell, fully sealed two-pin waterproof plug, resist long-term oil mist, high temperature and vibration erosion. |
| Q6 | Can this 24V coil be replaced with a 12V coil of the same model? | No, the internal resistance and output magnetic force are different, mixing 12V and 24V coils will cause unstable pump pressure or coil burnout, cannot be interchanged. |
| Q7 | How to quickly judge coil damage before installation? | Use a multimeter to measure coil resistance, normal range 13–14 ohms; infinite resistance means open circuit, resistance below 10 ohms indicates internal short circuit and cannot be installed. |
