0861879 Proportional Solenoid Coil For E320B PC200-8 Excavator Main Pump Valve
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description
0861879 086-1879 Solenoid Coil For E320B Excavator Main Pump Proportional Valve

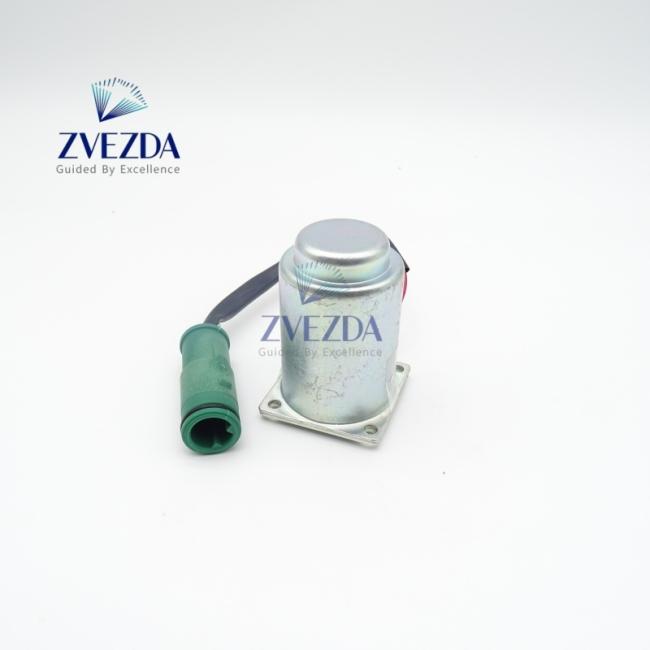

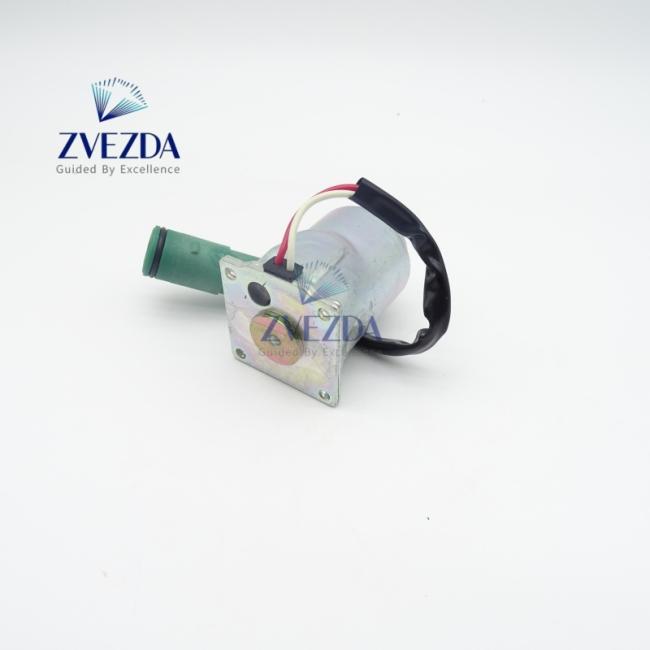

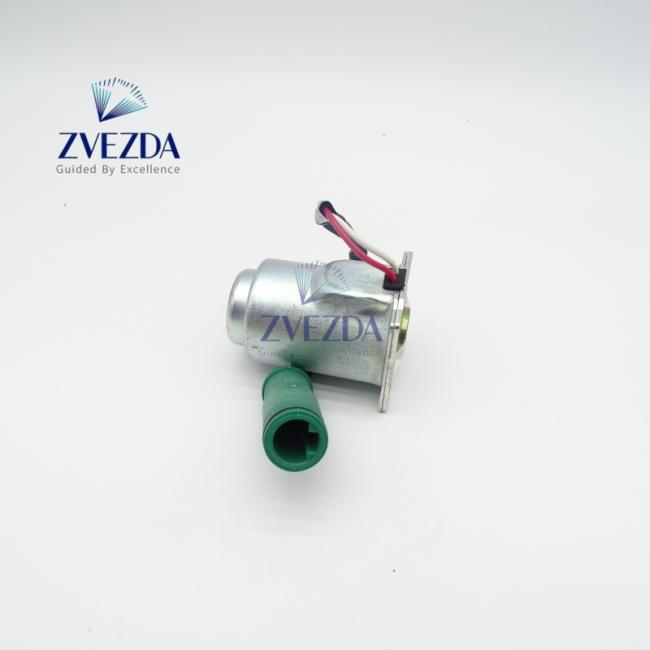

Integral galvanized anti-rust metal shell, high-purity low-drift pure copper enameled wire winding, multi-layer high-temperature insulating paper encapsulation, built-in heat dissipation structure, original green two-pin fully sealed waterproof plug, stable magnetic output without overheating under long-time continuous high-vibration mine working conditions.
Product Details
| Item Attribute | Technical Parameter |
|---|---|
| Commercial Title | Galvanized Shell LS Load Sensing Proportional Solenoid Coil For CAT B-series Excavator Main Pump Valve |
| Cross Reference PN | 0861879 (Short Code:086-1879) |
| Applicable System | Excavator Variable Pump Stepless LS Load Matching Hydraulic Control Circuit |
| Quality Grade | High Temp Anti-vibration Oil Mist Resistant Heavy-duty Replacement Standard |
| Production Base | Guangdong, China |
| Product Category | CAT Excavator Hydraulic Pump Electrical Coil Spare Parts |
| Electrical Spec | Coil Resistance 13.2Ω, Rated Control Current 685mA |
| Max Continuous Working Temp | Up to 135℃, No coil burnout & magnetic attenuation |
| Order Processing Cycle | Normally 1–7 working days once payment received |
| Custom Service | Custom Logo & Custom Export Carton Available For Bulk Orders |
| MOQ Support | 1 Piece Sample Acceptable For On-site Machine Compatibility Test |
| Komatsu Parts | JCB Parts | Other Brand Parts |
|---|---|---|
| 20Y-43-41780 | 331/30884 | 4520781 |
| 22U-06-22420 | 331/30885 | 4581230 |
| 22U-06-22380 | 331/30886 | 4601592 |
| 782-5301-301 | 701/80284 | 4632710 |
| 782-5301-302 | 701/80285 | 4678921 |
| 7824-30-1600 | 11S-49 | 4756890 |
| 7825-30-1301 | 60117463 | 4721563 |
| 7825-30-1302 | 60117463LM | 4739125 |
| 7861-92-4130 | 60117464 | 4772106 |
| 7861-92-4131 | 60117465 | 4789321 |
| 20Y-43-41781 | YQ05.251.046 | 4801234 |
| 20Y-43-41782 | YQ05.251.047 | 106-0107 |
| 22U-06-22390 | YQ05.251.048 | 106-0108 |
| 22U-06-22400 | YN20S00002F3 | 106-0109 |
| 7821-30-1500 | YN20S00002F4 | 165-9569 |
| 7822-30-1200 | YN20S00002F5 | 206-3305 |
| 7823-30-1400 | LQ50S00001P1 | 134-0649 |
| 7826-30-1100 | LQ50S00001P2 | 144-6670 |
| 7827-30-1000 | 8-98074-566-0 | 152-8973 |
| 7828-30-0900 | 8-98074-567-0 | 171-2540 |
| 7829-30-0800 | 4812369 | 183-4216 |
| 20Y-43-41790 | 256-7891 | 191-6527 |
| 20Y-43-41800 | 300661-00004A | 212-7890 |
| 708-2H-25240 | 21Q6-20820 | 214-5620 |
| 702-21-07010 | K1013849 | 0419-9902 |
| 702-21-07311 | 332/G0912 | 0419-9903 |
| 702-21-07610 | 60117466 | 223-8181 |
| 702-21-57400 | YQ05.251.049 | 224-2092 |
| 585-9230 | YN20S00003F1 | 225-0300 |
| 627-2304 | 7820-30-1700 | 253-3809 |
| 585-9231 | 4791230 | 231-8194 |
| 702-21-58100 | 403-0363 | 198-6528 |
| 702-21-57500 | 485-5747 | 328-4314 |
| 702-21-60700 | 375-4414-02 | 384-3892 |
| 714-07-16730 | 485-9850-03 | 485-5747 |
| 201-0950 | 485-9850-03 | 491-0908 |
| 25/220804 | 491-0908 | 553-5204 |
| 25/220994 | 25/220804 | 25/220994 |
| 31Q6-20131 | 25/220994 | 31Q6-91220 |
| 31Q6-91220 | 31Q6-20131 | 086-1879 |
| 086-1879 | 31Q6-91220 | 086-1879 |
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which excavators fit main pump proportional coil 086-1879? | This galvanized LS proportional solenoid coil is specially manufactured for E320B, also compatible with E110B, E120B, E200B, EL200B B-series hydraulic excavator main pump regulator valve. |
| Q2 | What power matching function does this coil realize for main pump? | It generates proportional magnetic force according to ECU signal to push valve spool, adjust pump displacement in real time based on excavation load, balance engine load and reduce fuel consumption during long-hour heavy work. |
| Q3 | What machine failures will be caused if this coil burns out? | Severe power loss under heavy digging, frequent engine stall, unstable pump pressure, slow boom & bucket movement, fluctuating idle speed and continuous high hydraulic oil temperature. |
| Q4 | Do I need to remove the whole hydraulic main pump to replace this coil? | No, just pull out the old coil sleeve from the valve core directly, install the new coil and plug the green connector, pump disassembly is not required, maintenance efficiency is greatly improved. |
| Q5 | What anti-aging sealed design adapts to harsh pump cabin environment? | Multi-layer high temperature insulation paper + epoxy full sealing, galvanized anti-rust outer shell, fully sealed green two-pin waterproof plug, resist long-term hydraulic oil mist, high temperature and vibration erosion. |
| Q6 | How to quickly judge coil damage before installation? | Use multimeter to measure coil resistance, normal range 12–14 ohms; infinite resistance means open circuit, resistance below 9 ohms indicates internal short circuit and cannot be installed. |
