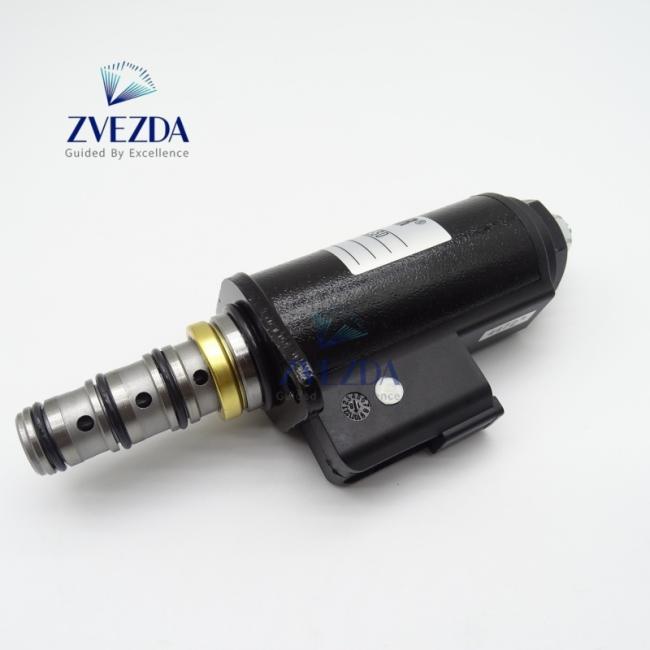

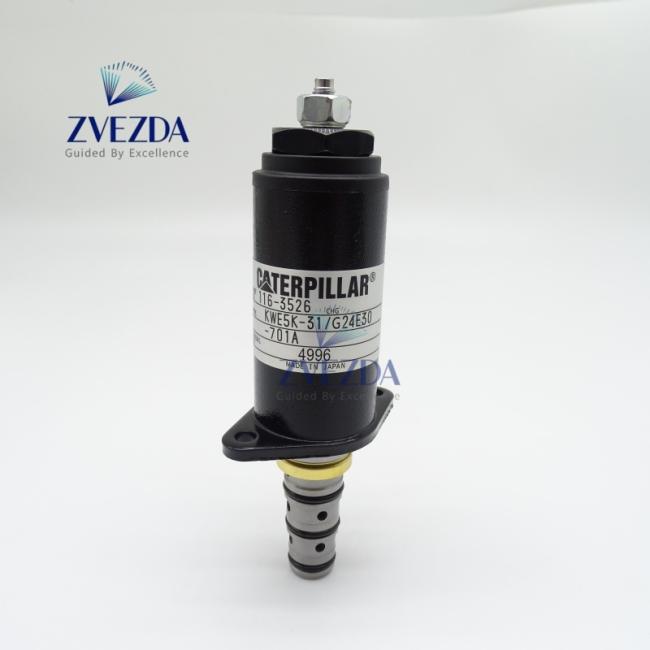

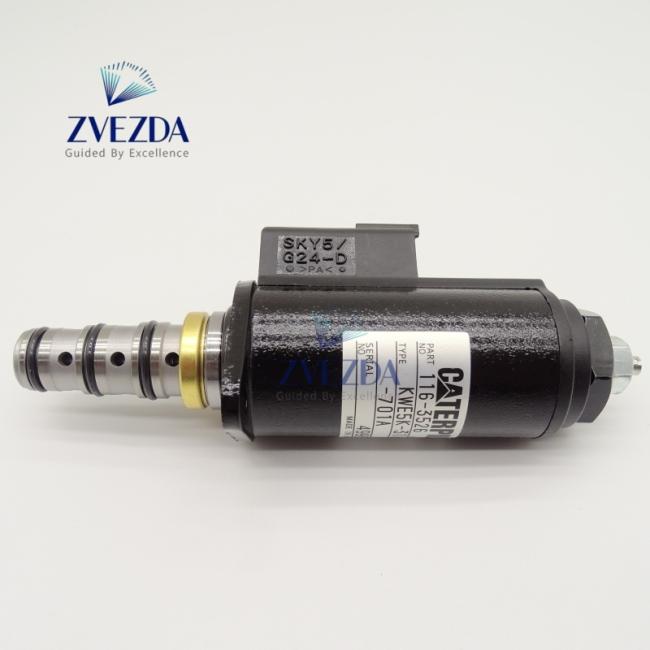

1163526 Hydraulic Swing Motor Solenoid Valve 116-3526 For E320B E330B
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description
1163526 Hydraulic Swing Motor Solenoid Valve 116-3526 For E320B E330B
It is the core proportional flow regulation component of excavator swing system. It receives ECU PWM proportional signal to output linear control pressure, adjust swing motor oil supply flow, realize stepless smooth rotation speed control, avoid sudden swing jitter during rock loading and site positioning operation.
Product Details
| Specification | Detailed Information |
|---|---|
| Brand | ZVEZDA |
| Full Product Name | E320B E330B E320C E325B Excavator 24V Swing Motor Proportional Solenoid Valve 116-3526 (1163526) |
| OEM Part Number | 116-3526 / 1163526 |
| Compatible Machine | E320B, E330B, E320C, E325B, E330C Medium & Large Hydraulic Excavator |
| Matched Component | Excavator Swing Rotary Hydraulic Motor Regulator Valve |
| Rated Voltage | DC24V |
| Condition | 100% Brand New Aftermarket OEM Equivalent Complete Assembly |
| Origin | Guangdong, China |
| Core Material | Full Ion Nitride Hardened Multi-groove Alloy Spool + Low Loss Pure Copper Electromagnetic Coil |
| Wiring Connector | Yellow Dot 2-Pin Fully Sealed Waterproof Plug |
| Installation Position | Excavator Main Multi-way Valve Flange Mounted Swing Proportional Valve |
| Shipment Lead Time | Dispatched within 1–7 working days after payment confirmation |
| Outer Packaging | Neutral Export Carton + Shockproof EPE Foam Inner Liner |
| Series 1 PN | Series 2 PN | Universal Spare Part Numbers |
|---|---|---|
| 20Y-43-41780 | 331/30884 | 4520781 |
| 22U-06-22420 | 331/30885 | 4581230 |
| 22U-06-22380 | 331/30886 | 4601592 |
| 782-5301-301 | 701/80284 | 4632710 |
| 782-5301-302 | 701/80285 | 4678921 |
| 7824-30-1600 | 11S-49 | 4756890 |
| 7825-30-1301 | 60117463 | 4721563 |
| 7825-30-1302 | 60117463LM | 4739125 |
| 7861-92-4130 | 60117464 | 4772106 |
| 7861-92-4131 | 60117465 | 4789321 |
| 20Y-43-41781 | YQ05.251.046 | 4801234 |
| 20Y-43-41800 | 300661-00004A | 212-7890 |
| 708-2H-25240 | 21Q6-20820 | 214-5620 |
| 702-21-07010 | K1013849 | 0419-9902 |
| 702-21-07311 | 332/G0912 | 0419-9903 |
| 702-21-07610 | 60117466 | 223-8181 |
| 702-21-57400 | YQ05.251.049 | 224-2092 |
| 585-9230 | YN20S00003F1 | 225-0300 |
| 627-2304 | 7820-30-1700 | 253-3809 |
| 585-9231 | 4791230 | 231-8194 |
| 702-21-58100 | 403-0363 | 198-6528 |
| 702-21-57500 | 485-5747 | 328-4314 |
| 702-21-60700 | 375-4414-02 | 384-3892 |
| 714-07-16730 | 485-9850-03 | 485-5747 |
| 201-0950 | 485-9850-03 | 491-0908 |
| 25/220804 | 491-0908 | 553-5204 |
| 25/220994 | 25/220804 | 25/220994 |
| 31Q6-20131 | 25/220994 | 31Q6-91220 |
| 31Q6-91220 | 31Q6-20131 | 086-1879 |
| 086-1879 | 31Q6-91220 | 31765-FC000 |
| 31765-FC000 | 086-1879 | 053400-0745 |
| 053400-0745 | 31765-FC000 | 419-15-47221 |
| 419-15-47221 | 053400-0745 | KDRDE5K-20/40C04 |
| KDRDE5K-20/40C04 | 419-15-47221 | 31Q6-91720 |
| 31Q6-91720 | KDRDE5K-20/40C04 | 25/220804 |
| 25/220804 | 31Q6-91720 | 25/974628 |
| 25/974628 | 25/220804 | 4I-5674 |
| 4I-5674 | 25/974628 | 096-5945 |
| 096-5945 | 4I-5674 | 111-9916 |
| 111-9916 | 096-5945 | 111-9100 |
| 111-9100 | 111-9916 | 56D-15-35220 |
| 56D-15-35220 | 111-9100 | DRE2K-X5-937-16 |
| DRE2K-X5-937-16 | 56D-15-35220 | 116-3526 |
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which excavators match 24V swing proportional solenoid valve 116-3526 1163526? | This flange-mounted rotary proportional valve fits E320B, E330B, E320C, E325B, E330C medium and large hydraulic excavators. |
| Q2 | How does this solenoid control excavator swing rotation speed? | It receives ECU PWM signal to generate proportional electromagnetic force, adjust the opening of swing control oil circuit, steplessly change the flow into swing motor to control rotary speed smoothly. |
| Q3 | What abnormal rotary faults will occur when this solenoid is damaged? | Unsmooth swing action, out-of-control rotation speed, slow rotary response, swing jitter during composite operation and continuous high hydraulic oil temperature. |
| Q4 | Is full disassembly of the multi-way valve required during replacement? | No, external flange fixed design, only remove four fixing bolts and disconnect the wire plug, no need to split the internal main valve body. |
| Q5 | What anti-wear and high-temperature design adapts to long-term mining work? | The whole spool undergoes ion nitriding hardening treatment, matched double high temperature HNBR sealing rings and fully sealed two-pin waterproof plug to resist hydraulic oil, dust and continuous high heat. |
| Q6 | Are 116-3526 and 1163526 interchangeable part numbers? | Yes, these two codes represent the same complete swing proportional solenoid assembly and can be replaced mutually. |
| Q7 | How to quickly detect coil damage before installation? | Use a multimeter to measure coil resistance, normal range 14–14.8 ohms; infinite resistance means open circuit, resistance below 10 ohms indicates internal short circuit and cannot be installed. |
