7022107610 Main Pump CLSS Control Solenoid OE 702-21-07610 For PC200-8 PC220-8
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description

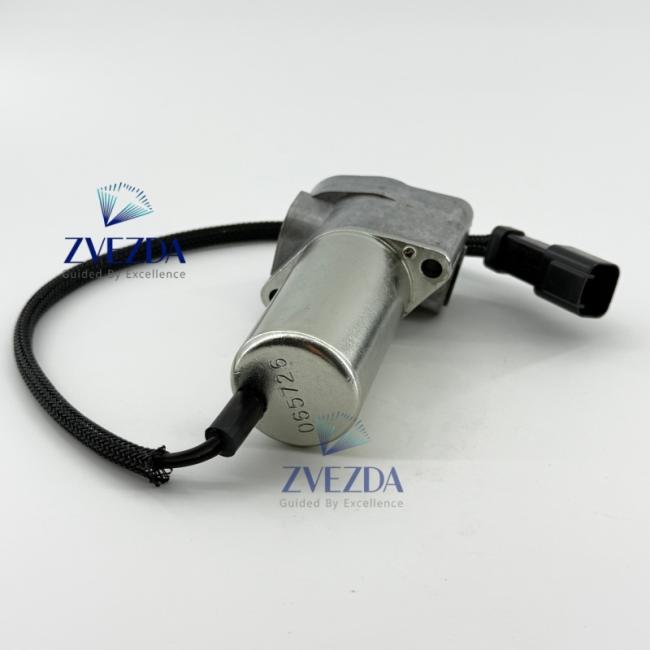

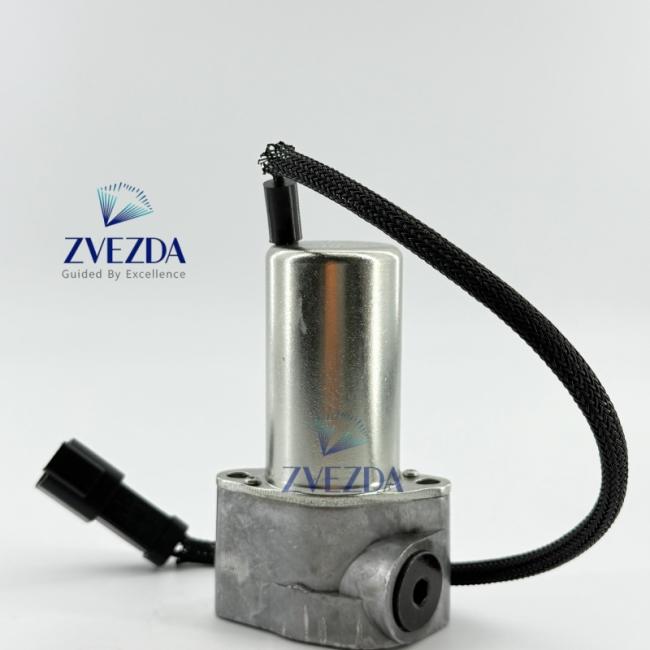

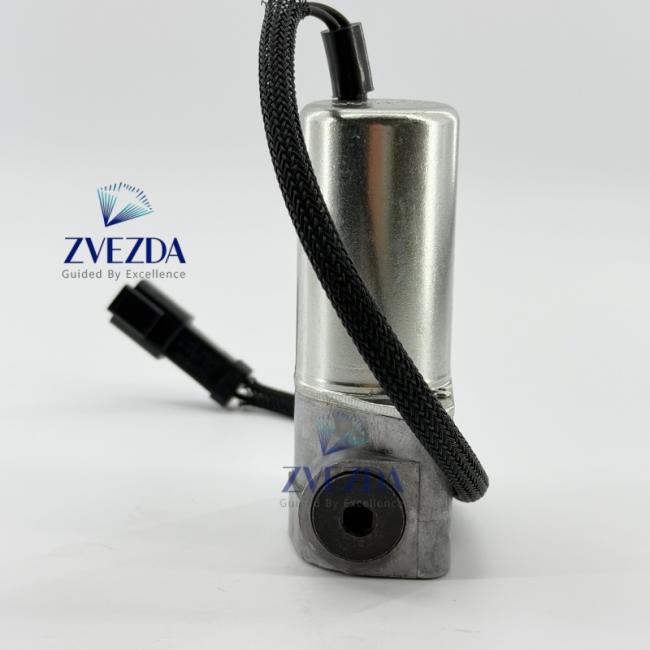

7022107610 Main Pump CLSS Control Solenoid OE 702-21-07610 For PC200-8 PC220-8
It serves as core energy-saving power matching component for variable displacement main pump, converts ECU PWM current signals into precise control pressure, automatically adjust pump displacement according to digging load to balance engine output and eliminate heavy-load engine stall during earthmoving and rock breaking work.
Product Details
| Specification | Detailed Information |
|---|---|
| Full Product Name | PC200-8 PC220-8 Medium Excavator CLSS Closed Load Sensing Main Pump Solenoid Valve Assembly |
| OEM OE Number | 702-21-07610 / 7022107610 |
| Compatible Machine | PC200-8, PC220-8 Medium Construction Excavator |
| Condition | 100% Brand New Aftermarket OEM Equivalent Spare Parts |
| Origin | Guangdong, China |
| Core Material | Nitride Hardened Alloy Flange Cartridge Core + Low Drift Pure Copper Electromagnetic Coil |
| Working Voltage | DC24V Standard Construction Machinery Voltage |
| Wiring Design | Heavy-duty Oil-resistant Braided Multi-core Harness + Black 2-Pin Fully Sealed Waterproof Plug |
| Installation Position | Excavator Hydraulic Main Pump Regulator Manifold Block |
| Shipment Lead Time | Dispatched within 1–7 working days after payment confirmation |
| Outer Packaging | Neutral Export Carton + Shockproof EPE Foam Inner Liner |
| Komatsu Parts | JCB Parts | Other Brand Parts |
|---|---|---|
| 20Y-43-41780 | 331/30884 | 4520781 |
| 22U-06-22420 | 331/30885 | 4581230 |
| 22U-06-22380 | 331/30886 | 4601592 |
| 782-5301-301 | 701/80284 | 4632710 |
| 782-5301-302 | 701/80285 | 4678921 |
| 7824-30-1600 | 11S-49 | 4756890 |
| 7825-30-1301 | 60117463 | 4721563 |
| 7825-30-1302 | 60117463LM | 4739125 |
| 7861-92-4130 | 60117464 | 4772106 |
| 7861-92-4131 | 60117465 | 4789321 |
| 20Y-43-41781 | YQ05.251.046 | 4801234 |
| 20Y-43-41782 | YQ05.251.047 | 106-0107 |
| 22U-06-22390 | YQ05.251.048 | 106-0108 |
| 22U-06-22400 | YN20S00002F3 | 106-0109 |
| 7821-30-1500 | YN20S00002F4 | 165-9569 |
| 7822-30-1200 | YN20S00002F5 | 206-3305 |
| 7823-30-1400 | LQ50S00001P1 | 134-0649 |
| 7826-30-1100 | LQ50S00001P2 | 144-6670 |
| 7827-30-1000 | 8-98074-566-0 | 152-8973 |
| 7828-30-0900 | 8-98074-567-0 | 171-2540 |
| 7829-30-0800 | 4812369 | 183-4216 |
| 20Y-43-41790 | 256-7891 | 191-6527 |
| 20Y-43-41800 | 300661-00004A | 212-7890 |
| 22U-06-22410 | 21Q6-20820 | 223-1456 |
| 22U-06-22430 | K1013849 | 234-9871 |
| 4705919 | 332/G0912 | 245-3690 |
| 4341545 | 60117466 | 4542152 |
| 4614910 | YQ05.251.049 | 4659775 |
| 4468335 | YN20S00003F1 | 4669841 |
| 4656205 | 7820-30-1700 | 4371651 |
| 4716708 | 4791230 | 4482963 |
| 1751ES-12A6UC4B3S1 | SA-4761-12 | 153-6409 |
| 708-2H-25240 | 256-7891 | 214-5427 |
| 714-23-15520 | 300661-00004A | 222-1399 |
| 203-60-56180 | 21Q6-20820 | 0419-9902 |
| 419-15-16910 | K1013849 | 0419-9903 |
| 714-11-16830 | 332/G0912 | 223-8181 |
| 206-60-51130 | 60117466 | 224-2092 |
| 568-15-17210 | YQ05.251.049 | 225-0300 |
| 561-15-47210 | YN20S00003F1 | 253-3809 |
| 225-4558 | 7820-30-1700 | 231-8194 |
| 264-3114 | 4791230 | 198-6528 |
| 241-7668 | 403-0363 | 328-4314 |
| 375-4414-02 | 485-5747 | 384-3892 |
| 485-9850-03 | 375-4414-02 | 485-5747 |
| 491-0908 | 485-9850-03 | 491-0908 |
| 553-5204 | 491-0908 | 553-5204 |
| 487-8455 | 553-5204 | 487-8455 |
| 702-21-07010 | 487-8455 | 568-15-17210 |
| 702-21-07311 | 702-21-07010 | 702-21-07311 |
| 702-21-07610 | 702-21-07311 | 702-21-07610 |
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which medium excavators adopt CLSS closed load sensing solenoid valve 702-21-07610? | This flange CLSS proportional solenoid is specially manufactured for PC200-8 and PC220-8 medium construction excavator hydraulic pump regulator manifold block. |
| Q2 | What upgrade does closed load sensing bring compared with open-loop proportional valves? | It forms closed signal feedback loop between pump and main valve, realize real-time dynamic power adjustment, reduce energy loss and achieve lower fuel consumption under mixed working conditions. |
| Q3 | What abnormal machine performance will appear if the original solenoid fails? | Unstable hydraulic output under variable load, frequent engine stall during rock breaking, delayed boom and stick movement, continuously rising hydraulic oil temperature. |
| Q4 | Is full disassembly of hydraulic main pump required to replace this flange solenoid? | No, external flange bolt fixed design allows single-piece quick replacement without splitting the whole pump assembly. |
| Q5 | What anti-interference design guarantees stable signal in harsh construction environment? | Thickened multi-core high-temperature oil-resistant wire and fully sealed two-pin plug resist long-term vibration, dust and high heat interference. |
| Q6 | Can single sample be supplied for field hydraulic performance test before bulk purchase? | Yes, single-piece sample order is supported to check fitting condition and closed load sensing control effect on excavator on site. |
