7022158100 Main Control Pilot Solenoid OE 702-21-58100 For PC300-7 PC360-7
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description

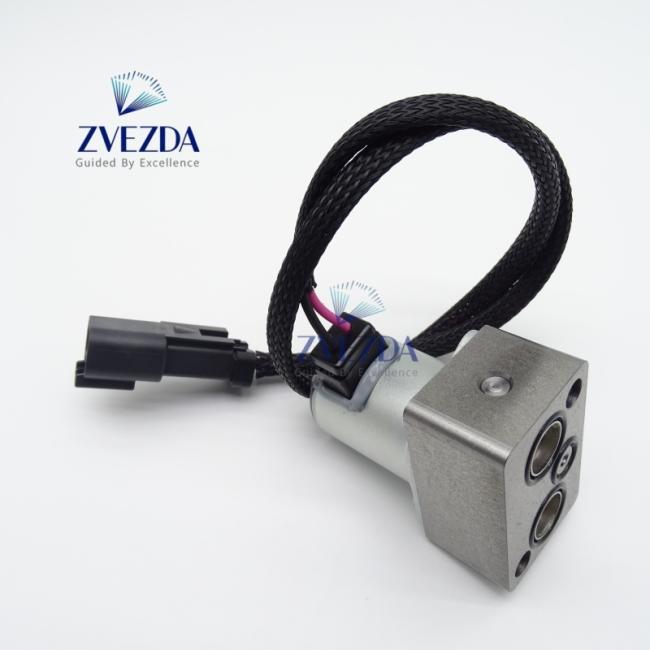

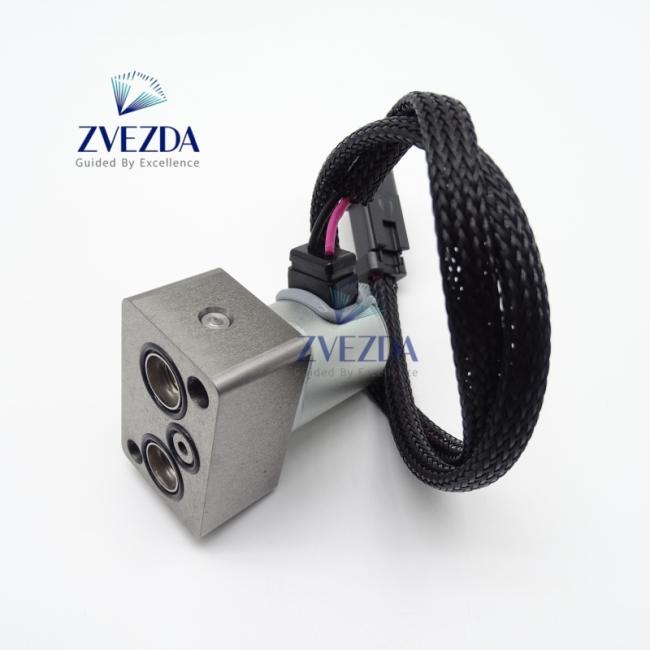

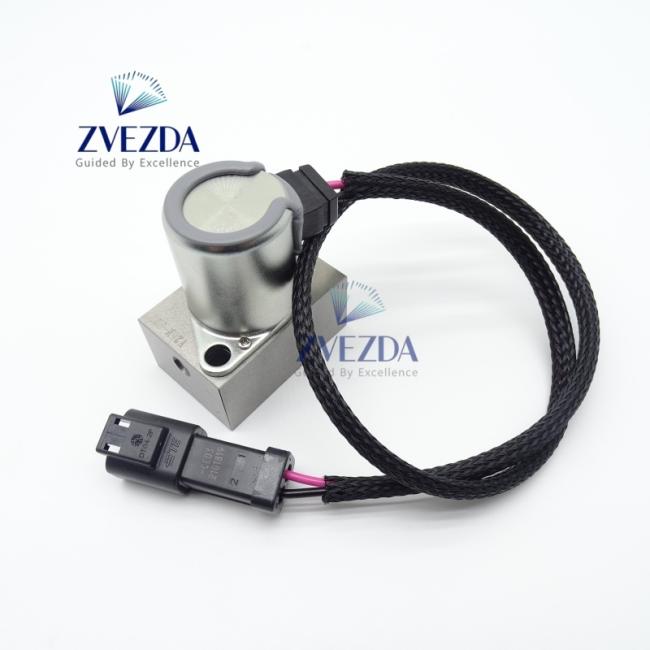

7022158100 Main Control Pilot Solenoid OE 702-21-58100 For PC300-7 PC360-7
This multi-way main valve pilot proportional solenoid OEM No.702-21-58100, cross interchange OE code 7022158100, matches the pilot pressure control oil circuit of main control valve for Komatsu PC300-7 and PC360-7 large excavators, used to adjust pilot oil pressure to drive main valve spool movement.
Product Details
| Item Attribute | Technical Parameter |
|---|---|
| Commercial Title | Square Block Pilot Proportional Pressure Control Solenoid For PC-7 Series Large Excavator Main Control Valve |
| Cross Reference PN | 7022158100 (Short Code:702-21-58100) |
| Applicable System | Excavator Main Valve Stepless Pilot Proportional Hydraulic Control Circuit |
| Quality Grade | Dust-proof Anti-vibration High Temp Heavy Duty Replacement Standard |
| Production Base | Guangdong, China |
| Product Category | Large Excavator Main Control Valve Hydraulic Electrical Control Components |
| Electrical Spec | Coil Resistance 14.8Ω, Rated Control Current 712mA |
| Continuous Working Temp | Up to 124℃ without seal aging and pressure signal drift |
| Order Processing Cycle | Normally 1–7 working days once payment received |
| Custom Service | Custom Logo & Custom Export Carton Available For Bulk Orders |
| MOQ Support | 1 Piece Sample Order Acceptable For On-site Machine Compatibility Test |
More Another Parts
| More Another Parts : | |||
| KDRDE5K-20/40C07-109 | 7824-30-1600 | YN35V0004F1 | 21EN-32260 |
| KDRDE5K-20/30C27 | 7834-40-2000 | YN35V00018F2 | 2523-9014 |
| KDRDE5K-20/30C02-106 | 7834-41-2000 | 2406U197F4 | 5230-0006 |
| KDRDE5K-20/40C04-109 | 702-21-53780 | 21EN-32200 | 7824-30-1600 |
| KDRDE5K-31/30C50-111 | 2A5-60-11211 | 21EN-32220 | 7834-40-2000 |
| KWE5K-31/G24DA50 | 2A5-60-11231 | 21EN-32260 | 7834-41-2000 |
| KWE5K-31/G24YA50 | 20Y-60-41621 | 2523-9014 | 702-21-53780 |
| KWE5K-31/G24YB50 | 20Y-60-32121 | 5230-0006 | 2A5-60-11211 |
| KWE5K-31/G24DB50 | 7834-40-2000 | 4614911 | 20Y-60-32121 |
| KWE5K-30/G24YA40 | 7824-30-1600 | 20Y-60-41621 | 2A5-60-11231 |
| A82230000321 | LH4100100130 | 4257163 | 7834-41-2000 |
Questions & Answers
| No. | Question | Standard Answer |
|---|---|---|
| Q1 | Which large excavators adopt main control pilot solenoid valve 702-21-58100? | This square block pilot proportional solenoid is specially manufactured for PC300-7 and PC360-7 large construction excavator main multi-way control valve pilot oil circuit. |
| Q2 | What core pilot pressure regulation function does this valve undertake in hydraulic system? | It receives ECU current signal to adjust output pilot oil pressure, control the opening stroke of main valve spool, realize stepless speed regulation of boom, arm and bucket actions. |
| Q3 | What abnormal machine states will appear if this pilot solenoid fails? | Slow boom & bucket movement, insensitive operation handle, insufficient breakout force, unstable idle action and continuous rise of hydraulic oil temperature. |
| Q4 | Is full disassembly of the whole main control valve needed during replacement? | No, this valve is externally mounted on main valve block, only four fixing bolts and wiring plug need to be removed for direct replacement, low maintenance difficulty. |
| Q5 | What structural design ensures stable signal output in harsh construction environment? | Thickened braided oil-proof wire + fully sealed two-pin waterproof connector, integral anti-rust alloy valve block, effectively resist long-term dust, vibration and high temperature interference. |
| Q6 | How to quickly judge whether the solenoid coil is damaged before installation? | Use multimeter to measure coil resistance, normal range 14–16 ohms; infinite resistance means open circuit, resistance lower than 10 ohms means coil short circuit. |
