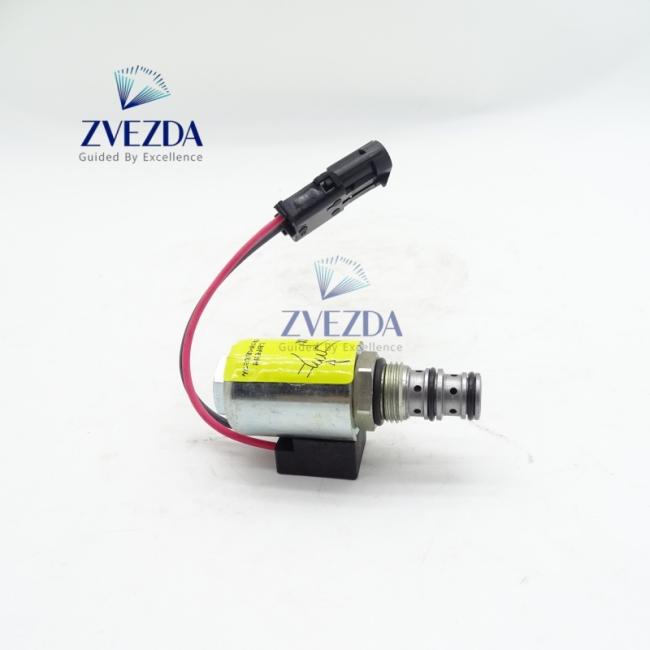

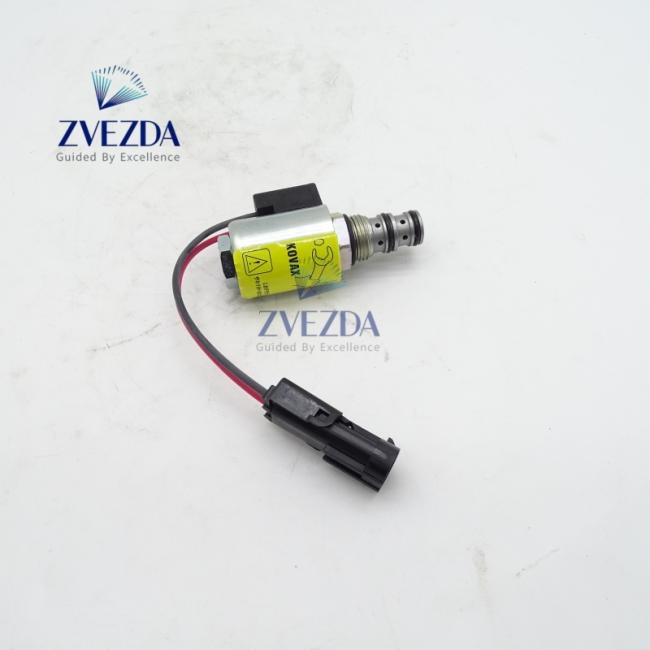

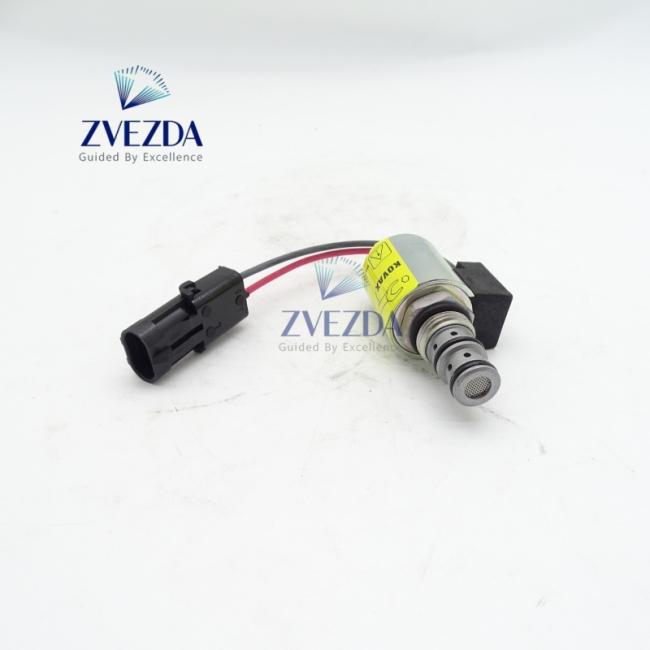

118872A1 Threaded Cartridge Solenoid OE KJ01624 50702074 B36994 12V Fit 1845C
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description
118872A1 Threaded Cartridge Solenoid OE KJ01624 50702074 B36994 12V Fit 1845C
Integrated galvanized steel valve body, multi-orifice spool ion nitriding wear-resistant treatment, high-purity copper H-grade high temperature enameled coil, sealed plastic plug, stable operation under muddy, high-temperature construction environment.
Product Details
| Specification | Information |
|---|---|
| Brand | ZVEZDA |
| Full OEM Cross Part Numbers | 118872A1, KJ01624, 50702074, B36994 |
| Matching Equipment | 1845C Compact Loader |
| Rated Voltage | DC12V |
| Plug Feature | Black 2-Pin Fully Sealed Waterproof Plug |
| Core Material | Hardened Alloy Spool + Low-loss Pure Copper Coil |
| Installation Position | Hydraulic Multi-way Valve Threaded Cartridge Cavity |
| Outer Packing | Neutral Export Carton + Shockproof EPE Foam |
More Another Parts
| More Another Parts : | |||
|---|---|---|---|
| KDRDE5K-20/40C07-109 | 7824-30-1600 | YN35V0004F1 | 21EN-32260 |
| KDRDE5K-20/30C27 | 7834-40-2000 | YN35V00018F2 | 2523-9014 |
| KDRDE5K-20/30C02-106 | 7834-41-2000 | 2406U197F4 | 5230-0006 |
| KDRDE5K-20/40C04-109 | 702-21-53780 | 21EN-32200 | 7824-30-1600 |
| KDRDE5K-31/30C50-111 | 2A5-60-11211 | 21EN-32220 | 7834-40-2000 |
| KWE5K-31/G24DA50 | 2A5-60-11231 | 21EN-32260 | 7834-41-2000 |
| KWE5K-31/G24YA50 | 20Y-60-41621 | 2523-9014 | 702-21-53780 |
| KWE5K-31/G24YB50 | 20Y-60-32121 | 5230-0006 | 2A5-60-11211 |
| KWE5K-31/G24DB50 | 7834-40-2000 | 4614911 | 20Y-60-32121 |
| KWE5K-30/G24YA40 | 7824-30-1600 | 20Y-60-41621 | 2A5-60-11231 |
| A82230000321 | LH4100100130 | 4257163 | 7834-41-2000 |
Q&A
| No. | Question | Answer |
|---|---|---|
| Q1 | Which compact loader fits cartridge solenoid 118872A1 / KJ01624 / 50702074 / B36994? | Fits 1845C hydraulic multi-way valve control system, 12V black two-pin waterproof plug. |
| Q2 | Core hydraulic control function of this cartridge solenoid? | Switch hydraulic flow direction to control bucket and lift arm movement; power off cuts oil circuit. |
| Q3 | Common hydraulic faults caused by damaged valve? | Slow working device movement, hydraulic vibration, intermittent action delay and high hydraulic oil temperature. |
| Q4 | Need to disassemble hydraulic manifold during replacement? | No, threaded cartridge design, direct screw installation without splitting valve block. |
| Q5 | Wear & high temperature resistant structural design? | Ion nitriding hardened spool, H-grade pure copper coil, double HNBR oil-proof sealing rings. |
| Q6 | Are 118872A1, KJ01624, 50702074, B36994 fully interchangeable? | Yes, all four OE numbers belong to one complete cartridge solenoid assembly. |
| Q7 | How to test coil integrity before installation? | Measure coil resistance 13.6–14.3Ω; infinite resistance = open circuit, below 10Ω = short circuit. |
