0300-12E2LS3 12V Fuel Shutoff Solenoid 1600361 0300-1500 8300-1501 Fit 404D-22 404C-22
Price:
Please send mail or Whatsapp
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
ZVEZDA
Product Description

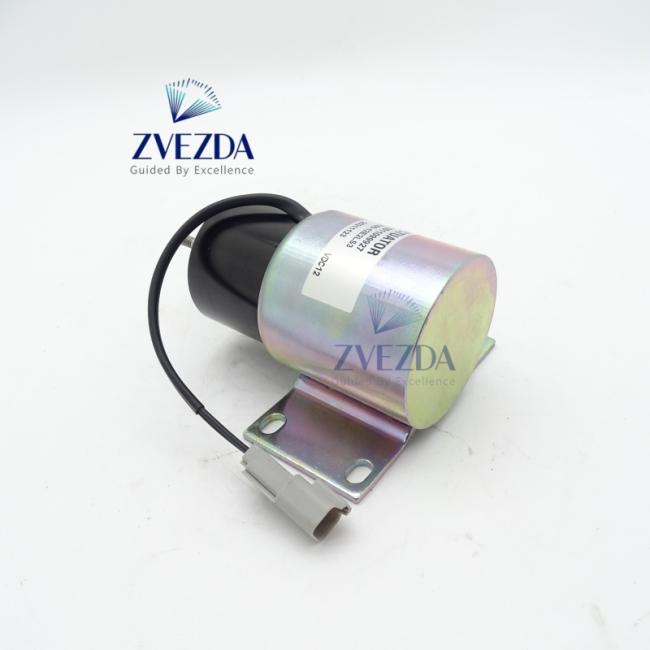

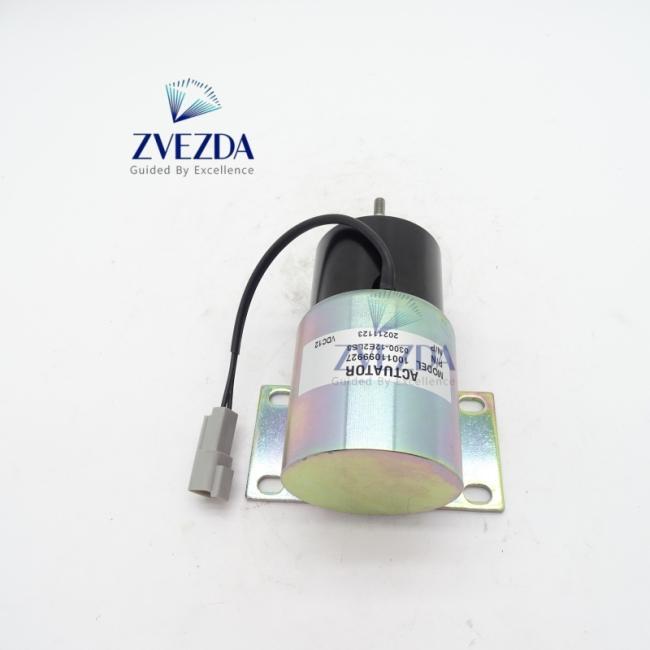

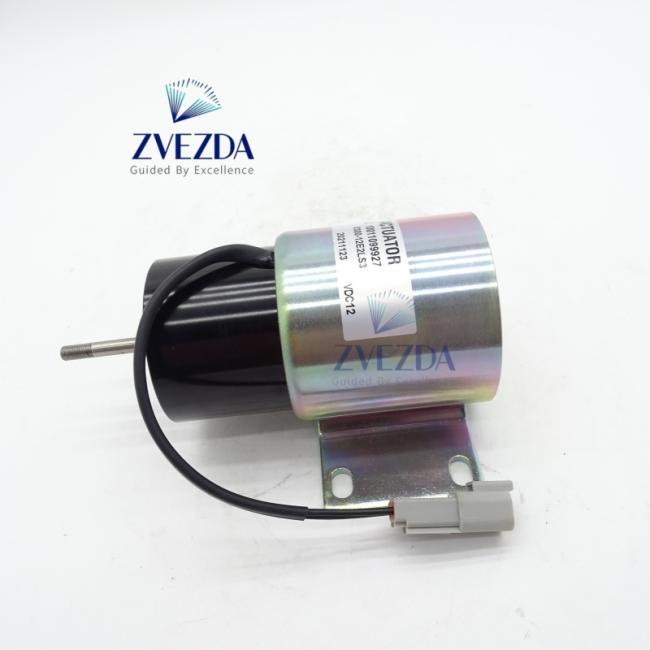

0300-12E2LS3 12V Fuel Shutoff Solenoid Actuator Replace 1600361 0300-1500 8300-1501 Fit 404D-22 Diesel Engine Stop Solenoid
Galvanized anti-rust housing, four-hole flange mounting base, easy installation on engine pump assembly.Adopts ZVEZDA H-grade high temperature pure copper enameled coil, wear-resistant short-stroke alloy pull rod plunger, stable electromagnetic pulling force without attenuation under long-term high-temperature diesel fuel and engine compartment high temperature environment. Effectively solve typical engine faults caused by original solenoid aging: engine can not turn off normally, power loss, spontaneous stall during operation, fault code alarm and coil burnout. Stable mass production, sufficient stock for fast delivery within 7 working days.
Product Details
| Specification | Details |
|---|---|
| Brand | ZVEZDA |
| Main OE No. | 0300-12E2LS3 |
| Cross Reference OE | 1600361, 0300-1500, 8300-1501, 0300-12E2 |
| Product Type | 12V Two-Hole Flange Short Stroke Fuel Shutoff Stop Solenoid Valve |
| Fit Equipment | 404D-22, 404C-22 Small Displacement Diesel Engine (Mini Excavator, Skid Steer Loader, Small Generator Set) |
| Rated Voltage & Coil Resistance | 12VDC, 16.5Ω±0.5Ω |
| Effective Pull Stroke | Standard 10mm Short Stroke |
| Origin | China |
| Delivery | Ship within 1-7 working days after payment |
| Warranty | 6 Months Under Continuous Small Diesel Engine Working Condition |
| Packaging | Neutral Carton Packing, No Brand Logo |
| Supporting Parts | Complete Solenoid Assembly + 2-Pin Gray Waterproof Plug + Sealing O-Ring + Mounting Bolt Nut Set |
| Sample Service | Single Sample Available With Electromagnetic Pull Force Stability Performance Test Report |
| More Another Parts | ||
|---|---|---|
| 221-8859HE02 | 221-8859 | 157-3182 |
| 106-0178 | 260-2180 | 2602180 |
| KM10-P16 | KM10P16 | 4436536 |
| 063G1946 | 30B1036 | MBS1250-063G1946 |
| 9312792 | YB60000068 | YB60001225 |
| 9246518 | 9258047 | 9218234 |
| 9239590 | 4455991 | 9147260 |
| 9098250 | 9120191 | AT154524 |
| TM60601 | TM63201 | TM68301 |
| TM63501 | TM00501 | TM90501 |
| 20Y-60-22121 | 20Y6022121 | 714-11-16840 |
| 7141116840 | 1017969 | 1017628 |
| 1013365 | 294009-0120 | 2940090120 |
| A6860-AW42B | RE530337 | 294200-0380 |
| 2942000380 | 04226-0L010 | 294200-0040 |
| 04226-0L020 | 294200-0042 | 294200-0041 |
| 3347907 | 3330602 | 3347905 |
| 3330600 | 3330601 | 3347906 |
| 3331031 | 3865310 | 3932529 |
| SA-4761-24 | 3935458 | 3932530 |
| SA-4756-24 | 0300-12E2LS3 | 1600361 |
| 0300-1500 | 8300-1501 | 0300-12E2 |
| 4943048 | 3944782 | 5260632 |
| 4943048X | 4210474 | 421-0474 |
| 4210835 | 6678984 | 6678988 |
| 4468595 | 4669643 | 4701978 |
| 4703325 | 4712857 | 4739125 |
| 4756890 | 4772106 | 4789321 |
| 4791230 | 485-5747 | 485-9850-03 |
| 375-4414-02 | 403-0363 | 553-5204 |
| 300661-00004A | KM15-P10 | 294200-0660 |
| FAQ |
|---|
| Q1: I only know the excavator model but do not have the OEM part number, how can I confirm the correct spare part? |
| A: You may send clear photos of the original old part, the nameplate marked OEM number, plug wiring diagram or dimension data. Our sales team will match the exact compatible product for you quickly. |
| Q2: Can I customize packaging, add my own brand logo, or do neutral packing? |
| A: Yes. We provide standard carton/wooden case neutral packaging without any logo by default. Custom private label printing, exclusive brand packaging and customized outer package are all available upon your demand. |
| Q3: What main electrical spare parts do you supply? |
| A: We mainly supply electrical accessories for mainstream excavators, including various solenoid valves, proportional valves, pressure sensors, speed sensors, throttle stepping motors, wiring harness assemblies, ignition switches, alternators, starter motors and other electronic components. |
| Q4: Can I buy 1 piece as a sample for testing first? |
| A: Yes, sample order with MOQ=1 is supported for all items. We offer favorable sample price and fast express delivery for your quality inspection and market trial. |
| Q5: Do your electrical parts fit perfectly with original excavator equipment? |
| A: All products are manufactured strictly according to original OEM size and parameter standards, with the same plug interface, voltage and mounting position, which can directly replace the original parts without modification. |
