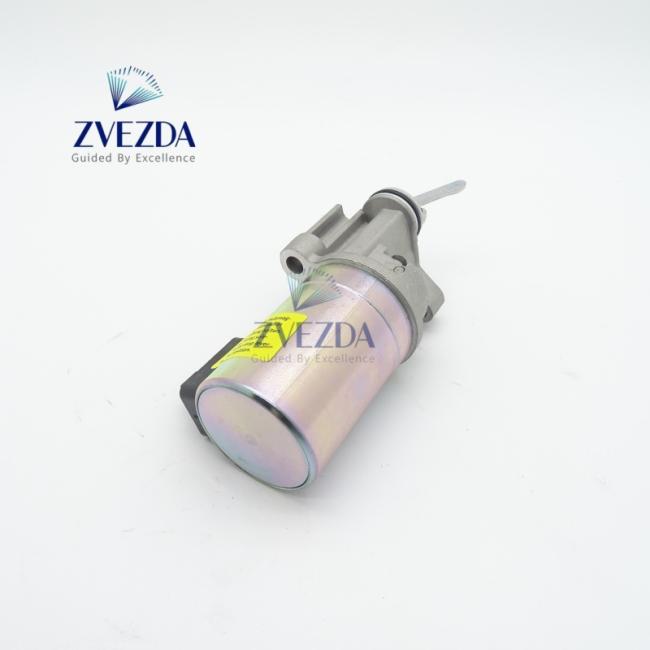

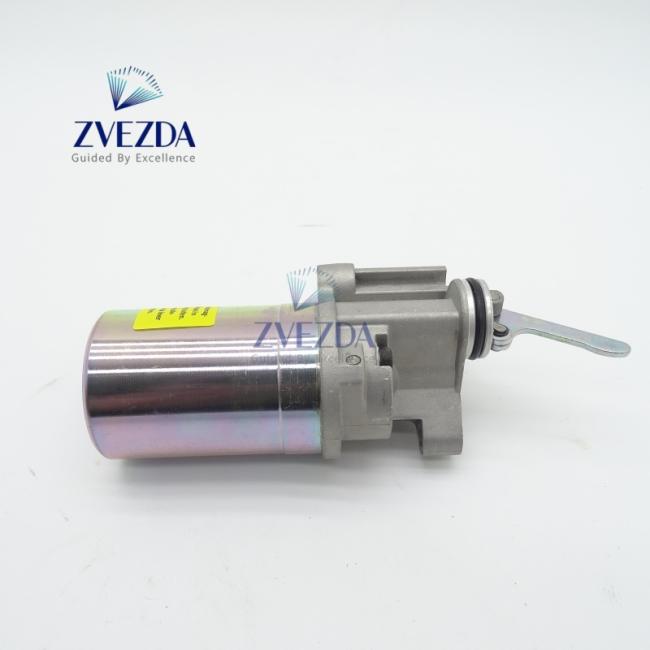

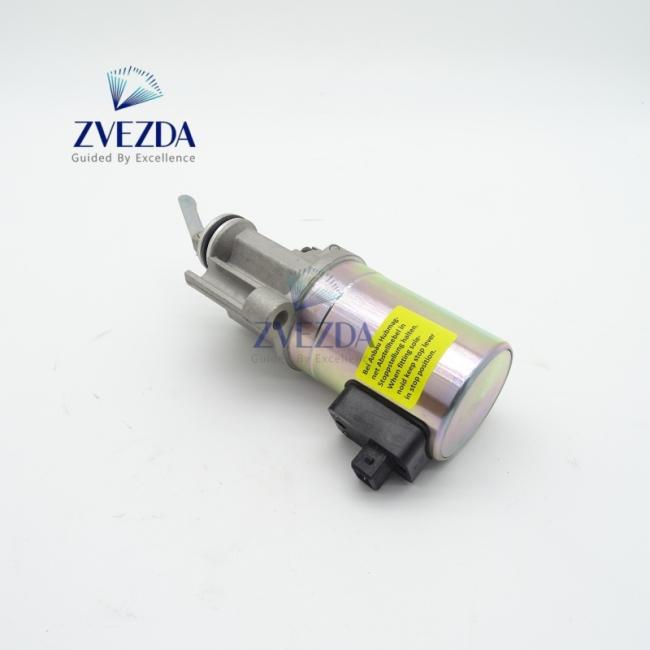

BF4M2012 12V Fuel Shutoff Kubota Stop Solenoid 04199900 04206914 04199904 Custom
This OE equivalent stop solenoid carries part number 04199900.It is a direct replacement for the original Deutz fuel cut-off actuator.Integrated galvanized anti-rust alloy steel cylinder housing, multi-layer FKM fuel-resistant high temperature sealing rings at swing lever and oil isolation cavity, fully sealed coil cavity to block diesel mist, dust and muddy water infiltration. Reinforced black square waterproof plug reaches IP67 protection standard, adapt to harsh construction site high-temperature, dusty, mud splash environment, prevent diesel leakage, short circuit and lever jamming failure. All core parts are precision machined domestically, with full stroke suction calibration and long-term high-temperature aging test before delivery.
| Specification | Details |
|---|---|
| Brand | ZVEZDA |
| Main OE No. | 04199900 |
| Cross Reference OE | 04199904, 04206914 |
| Product Type | 12V Swing Lever Fuel Shutoff Stop Solenoid Valve |
| Fit Equipment | BF4M2012, BF6M2012, TCD2012 Series Diesel Engine Mechanical Injection Pump, Excavator, Loader, Heavy Truck, Generator |
| Rated Voltage & Coil Resistance | 12VDC, 16.8Ω±0.5Ω |
| Effective Swing Stroke | Standard 12mm Working Stroke |
| Waterproof Grade | IP67 |
| Origin | China |
| Delivery Time | 1–7 Working Days After Payment |
| Warranty | 6 Months Under Continuous Diesel Engine Working Condition |
| Packaging | Neutral Carton Packing, No Brand Logo |
| Supporting Accessories | Complete Solenoid Assembly + Black Square Waterproof Plug + Sealing O-Ring + Mounting Bolt Set |
| Sample Service | Single Sample Available With Electromagnetic Suction Stability Test Report |
| More Another Parts : | |||
| KDRDE5K-20/40C07-109 | 7824-30-1600 | YN35V0004F1 | 21EN-32260 |
| KDRDE5K-20/30C27 | 7834-40-2000 | YN35V00018F2 | 2523-9014 |
| KDRDE5K-20/30C02-106 | 7834-41-2000 | 2406U197F4 | 5230-0006 |
| KDRDE5K-20/40C04-109 | 702-21-53780 | 21EN-32200 | 7824-30-1600 |
| KDRDE5K-31/30C50-111 | 2A5-60-11211 | 21EN-32220 | 7834-40-2000 |
| KWE5K-31/G24DA50 | 2A5-60-11231 | 21EN-32260 | 7834-41-2000 |
| KWE5K-31/G24YA50 | 20Y-60-41621 | 2523-9014 | 702-21-53780 |
| KWE5K-31/G24YB50 | 20Y-60-32121 | 5230-0006 | 2A5-60-11211 |
| KWE5K-31/G24DB50 | 7834-40-2000 | 4614911 | 20Y-60-32121 |
| KWE5K-30/G24YA40 | 7824-30-1600 | 20Y-60-41621 | 2A5-60-11231 |
| A82230000321 | LH4100100130 | 4257163 | 7834-41-2000 |
-
Q: Which equipment fits ZVEZDA 04199900 fuel shutoff solenoid?A: Direct replacement for machinery equipped with BF4M2012/BF6M2012/TCD2012 mechanical injection pump, interchange OE 04199904 / 04206914, 12V standard voltage, two-hole flange install without modifying pump structure. In stock, ship within 1–7 working days.
-
Q: Engine still cannot shut down fully after replacement?A: Aging coil or worn swing lever leads to insufficient suction and incomplete fuel cut-off, replace complete ZVEZDA integrated stop solenoid to fully block fuel supply and realize normal engine flameout.
-
Q: Can this fuel stop solenoid replace excavator hydraulic proportional valve or loader brake on-off solenoid?A: Not interchangeable. This mechanical swing lever fuel cut actuator for diesel engine; hydraulic proportional valve adjusts high-pressure hydraulic oil, brake solenoid only switches hydraulic circuit, different working medium and control logic.
-
Q: Core advantages of ZVEZDA 04199900 fuel shutoff solenoid?A: H-grade high temp pure copper uniform winding coil, self-lubricating alloy swing lever, stable constant suction force, multi-layer FKM fuel-proof sealing, IP67 waterproof plug, OEM standard two-hole flange mounting size direct bolt replacement, neutral unbranded packaging, perfectly match BF4M2012/BF6M2012/TCD2012 engine mechanical pump fuel cut control system.
