3.2mm F2.0 Ultra Low Distortion M12 Lens 4G2P+IR IP69 Waterproof 93 Deg FOV for 1/3 Sensor Industrial Automotive Camera
OKS-3651-A4-650 is a high-performance ultra-low distortion M12 fixed lens designed for automotive monitoring, outdoor security and industrial vision equipment. It adopts 4G2P+IR optical configuration with multi-layer AR coating to enhance light transmittance, matched with 650nm infrared cut filter to restore true color in daytime. With 3.2mm focal length and F2.0 large aperture, it achieves 93° diagonal field of view for 1/3" sensor, and the distortion is controlled at only -0.5%, which greatly reduces image deformation and improves the recognition accuracy of machine vision and ADAS algorithms. IP69 high waterproof barrel can withstand high-pressure flushing, paired with -40℃~+85℃ wide temperature structure, supporting 24/7 all-weather operation on vehicle exterior, factory workshop and outdoor monitoring sites. Standard M12 thread mount for simple assembly of various camera modules.
- Standard M12x0.5 mount, perfectly matched with 1/3" CMOS sensors, applicable to automotive surround view, outdoor surveillance and industrial vision cameras
- 93° diagonal wide FOV with ultra-low TV distortion only -0.5%, restores real scene without image deformation, high accuracy for algorithm recognition
- Premium 4G2P+IR optical structure with multi-layer anti-reflection coating, equipped with 650nm IR cut filter, stable clear imaging day and night
- F2.0 large aperture improves light intake, delivers excellent low-light performance for night monitoring in dark vehicle cabins and outdoor environments
- IP69 high waterproof & dustproof grade, resistant to high-pressure water washing, dust and oil, suitable for harsh outdoor & vehicle exterior installation
- Max CRA＜16.7°, uniform brightness across four corners of image, no dark edge, focus range 0.6m to infinity for far & near object capture
- Wide operating temperature -40℃~+85℃, stable optical performance under extreme cold & high temperature, fully CE compliant
| Focal Length | 3.2mm |
| Lens Structure | 4G2P |
| F/No | F2.0 |
| Filed Of View | 1/3" H: 76°, V: 60°, D: 93° |

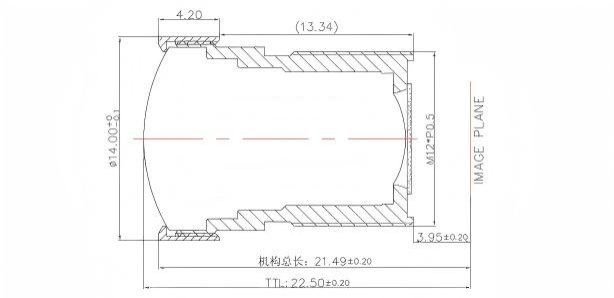

| Optical Back Focal Length | 4.5mm |
| Mechanical Back Focal Length | 3.95mm |
| TTL | 22.5mm |
| Waterproof Level | IP69K |
| IR Filter | 650nm |
| Working Temperature | -40°t~+85°C |
| TV Distortion | -0.5% |
| CRA | ＜16.7 ° |
| Focus Range | 0.6M to Infinity |
- Automotive: 360 vehicle surround view camera, rearview monitoring lens, ADAS auxiliary camera, truck & bus exterior monitoring lens
- Security CCTV: IP69 waterproof outdoor surveillance camera, parking lot, factory, community all-weather monitoring
- Industrial Vision: Mini industrial inspection camera, equipment visual detection, logistics scanning equipment
- Smart Devices: Outdoor video doorbell, intelligent access control recognition camera
- Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras.
- Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.
- OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.
- Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.
AR0234：HFOV 86° / VFOV 57° / DFOV 95°
AR0237：HFOV 82° / VFOV 53° / DFOV 90°
IMX307：HFOV 80° / VFOV 51° / DFOV 89°
