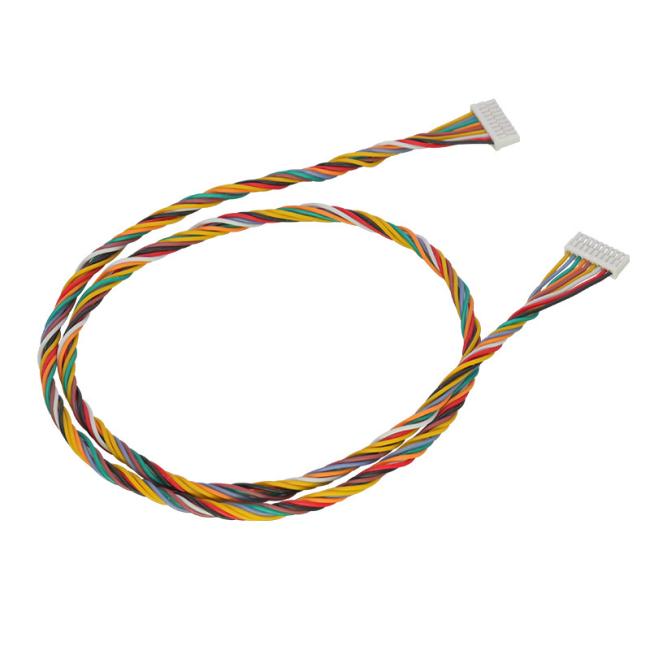

Long Term Supplier Wire Assembly | Custom Length and Colour GH1.25 9Pin Twisted Pair Connector Cable Assembly for Micro Drones | RoHS Compliant Made in China
Long Term Supplier Wire Assembly | Custom Length and Colour GH1.25 9Pin Twisted Pair Connector Cable Assembly for Micro Drones | RoHS Compliant Made in China
Unitech Company Introduction:
Unitech provide full‑range service including wholesale, custom design & prototyping, and large‑volume bulk order production. We offer flexible trade terms including FOB to simplify your import logistics. Our factory owns stable monthly supply output to fulfill steady demands, and we welcome long‑term annual contract cooperation for global distributors, system integrators and equipment manufacturers. Strict in‑house quality control ensures every wire harness and cable assembly meets international standards for industrial, energy storage and electronics applications.
Please contact us if you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.
| Name | 9Pin GH1.25 1.25mm pitch twisted cable assembly |
| Conductor | Tinned Oxygen-Free Copper (OFC) stranded wire |
| Conductor Gauge | 28/30AWG or customized |
| Rated Voltage | 150V AC/DC |
| Cable Length | 100mm, 150mm, 200mm, 300mm (50mm–1000mm custom length available) |
| Rated Current | 0.5A (30AWG) / 1A (28AWG) per core |

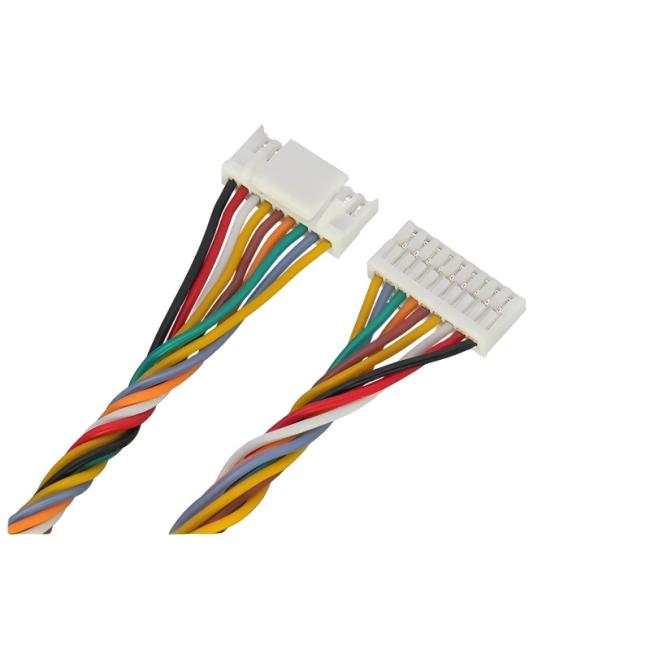

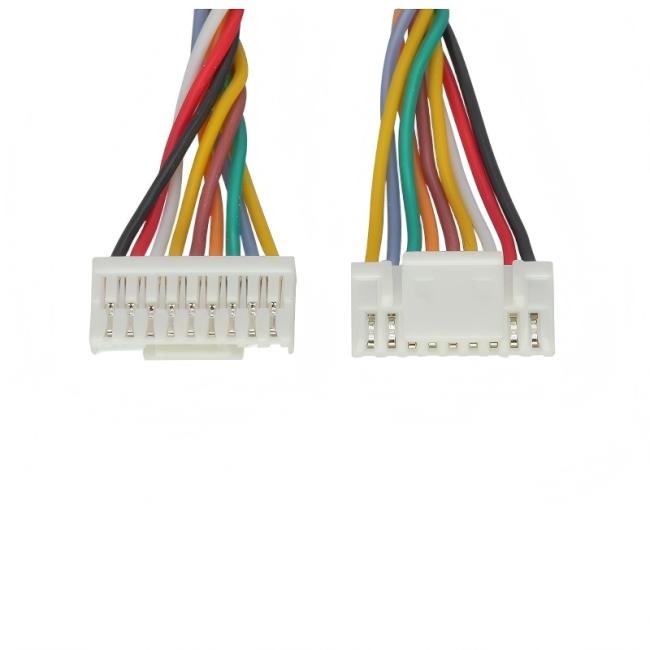

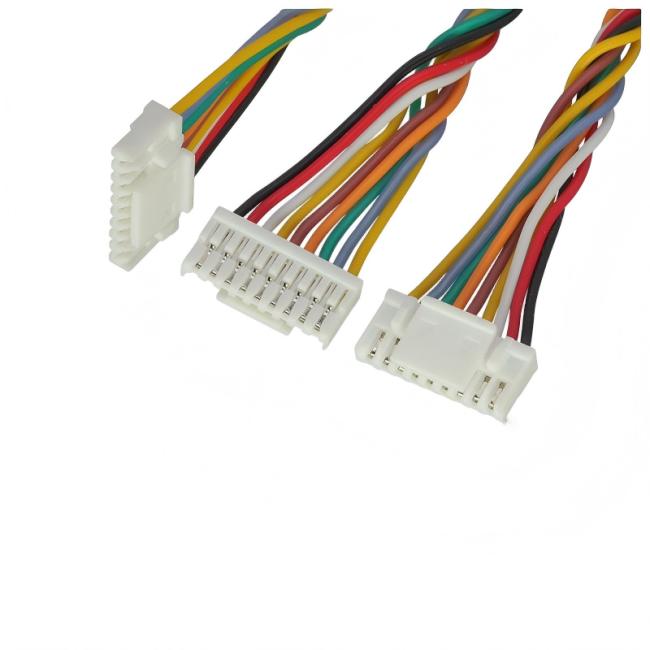

| Connector Structure | With built-in locking latch, anti-disconnect & anti-reverse insertion |
| Application | FPV Drone, Quadcopter, Flight Controller , Lithium Battery |
|
Insulation Material
|
Flexible PVC, RoHS & REACH compliant
|
|
Key Features
|
Space-saving, moderate channel quantity
|
| Material |
Tin-Plated Brass, Silicone
|
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness and Cable Features:
- Compact 1.25mm Pitch
- Twisted Pair Anti-Interference Design
Overall twisting structure greatly reduces EMI noise, keeps signal transmission stable, avoids signal loss or distortion in high-frequency working environment.
- 9-core Multi-signal Transmission
9 pins design meets the wiring demand of multi-channel signals, suitable for complex signal connection scenarios.
- Premium Tinned Copper Conductor
Good conductivity, anti-oxidation and anti-corrosion, stable electrical performance and long service life.
- Flexible PVC Insulation
Soft and bend-resistant, not easy to crack during repeated routing, adapt to various compact equipment assembly.
- Color Coded Wires
Distinct wire colors help quick wiring, inspection and troubleshooting, lower assembly error rate.
We can produce series of wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
- Connector type: Male to Male / Male to Female / Female to Female
- Wire gauge: Upgrade to 26AWG for higher current load
- Enhanced version: Foil shielded twisted pair for ultra-low interference environment
- Custom: Special length, exclusive wire color, printing logo on cable
- Package: Bulk bag, anti-static bag or customized retail package
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
