Unitech Company Introduction:
Unitech provide full‑range service including wholesale, custom design & prototyping, and large‑volume bulk order production. We offer flexible trade terms including FOB to simplify your import logistics. Our factory owns stable monthly supply output to fulfill steady demands, and we welcome long‑term annual contract cooperation for global distributors, system integrators and equipment manufacturers. Strict in‑house quality control ensures every wire harness and cable assembly meets international standards for industrial, energy storage and electronics applications.
Please contact us if you need any help on wire harness, all can be made as your requirement.
Please contact us for price by email:Olinda@unitechelectronic.com,we will reply in 8 hrs.

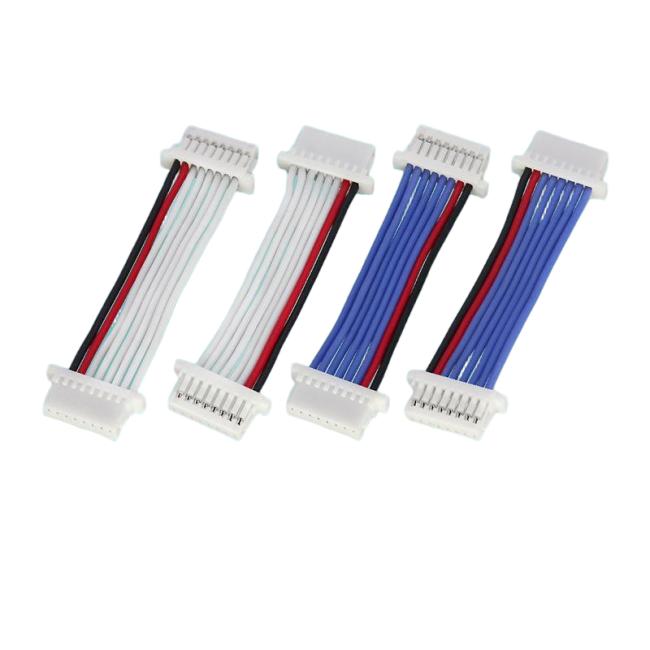

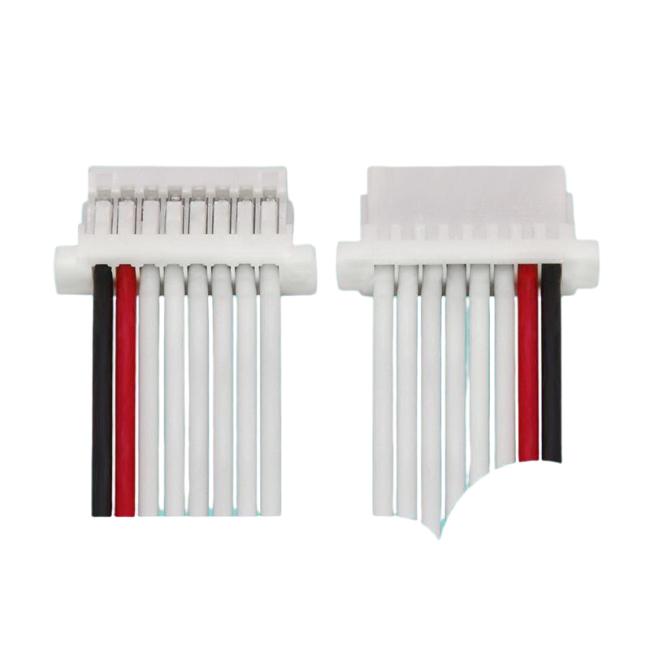

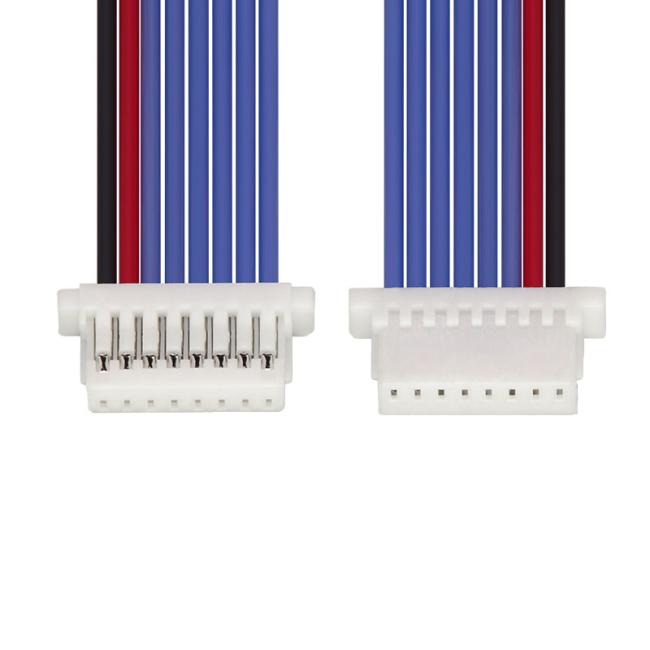

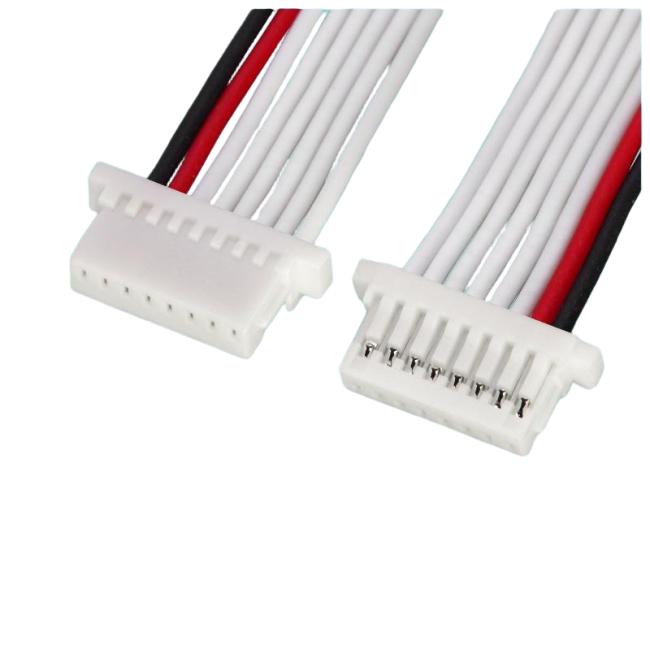

| Name | 8Pin GH1.25mm Pitch Connector Cable, Multi-Color Coded Wire |
| Connector | GH1.5 |
| Insulation Material | Flexible PVC |
| Conductor Gauge | 28AWG / 30AWG (customizable 26AWG available for higher current) |
| Wire Construction | 8 Conductors (custom color-coded, standard red/black + multi-color scheme) |
| Cable Length | 50mm / 100mm / 150mm / 200mm (custom lengths from 30mm to 500mm supported) |
| Conductor Type | Tinned Oxygen-Free Copper (OFC) stranded wire |
| Application | FPV Drone, Quadcopter, Flight Controller (FC) to 4-in-1 ESC ConnectionCertificationRoHS Compliant |
|
Rated Voltage
|
150V AC/DC |
| Engineering service | OEM and ODM service ,2D drawing |
| Quality Control |
1. 100% breakover test 2. 100% crimp inspection 3. 100% size inspection 4. 100% visual inspection |
| Samples |
1.Samples confirmed first before mass production 2.Samples for free |
| MOQ | Small Order Can Be Accepted |
| Package | Inner:plastic bag outer:standard export cartons or custom package |
Wire Harness and Cable Features:
- Ultra-Compact 1.25mm Pitch Design
The 1.25mm high-density pitch allows 8 pins to fit in a minimal footprint, making it ideal for space-constrained applications like mini drones, compact cameras, and IoT devices.
- Secure Latching Lock for Vibration Resistance
The built-in positive lock prevents accidental disconnection due to vibration or tugging, a critical feature for drones and moving machinery. It also prevents reverse insertion to protect sensitive components.
- 8-Conductor Multi-Channel Support
The 8-pin configuration supports power delivery (red/black) and up to 6 additional signal channels, making it perfect for multi-signal applications like BMS voltage sampling, flight controller peripherals, and sensor arrays.
- High-Quality Tinned OFC Conductors
Oxygen-free copper ensures excellent electrical conductivity, while tin plating prevents oxidation and corrosion, extending service life in humid or industrial environments.
- Flexible, Durable PVC Insulation
The flexible PVC jacket resists cracking under repeated bending, making it suitable for tight routing inside drone frames and compact enclosures. Heat-resistant variants are available for high-temperature applications.
- Factory-Crimped Terminals for Reliability
Precision crimping ensures consistent contact pressure between the wire and terminal, reducing the risk of intermittent connections or overheating caused by loose joints.
We can produce series of wire cable OEM ODM project:
1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2.Electrical cable and wire harness
3.Audio,Video,Radio cable and iso wire harness
4.Industrial wire cable harness
5.Home appliance wire harness
6.Fuse wire ,game machine wire harness
7.Power,LVDs,Flat RCA,USB cable harness
8.Control and panel wiring cable assemblies
9.Medical equipment cable and harness
10.Airplane models wire harness
- 1.Connector Variants: Alternative connectors (PH2.0, XH2.54, ZH1.5) available; custom gender configurations
- 2.Wire Gauge: Upgrade to 26AWG for higher current carrying capacity
- 3.Shielded Versions: Aluminum foil shield + drain wire for environments with extreme EMI interference
- 4.Custom Lengths & Color Codes: Non-standard lengths, custom color combinations, or logo printing on the insulation
- 5.Packaging: Bulk poly bags, anti-static packaging, or custom retail packaging with your brand label
Important Notes:
1. Please confirm the connector model, pin sequence and wire gauge before installation to avoid wrong connection, short circuit or equipment damage.
2. Avoid using the wire harness in over-current, over-voltage or high-temperature exceeding the rated working range, to prevent wire heating and safety risks.
3. Keep the connector away from water, dust, oil and corrosive environments to ensure long-term stable conductivity and avoid poor contact.
4. Do not bend or squeeze the wire sharply for a long time; reasonable wiring protection can extend the service life of the harness.
5. For drone and flight model applications, check the locking buckle condition before flight to ensure firm connection and prevent mid-air disconnection.
