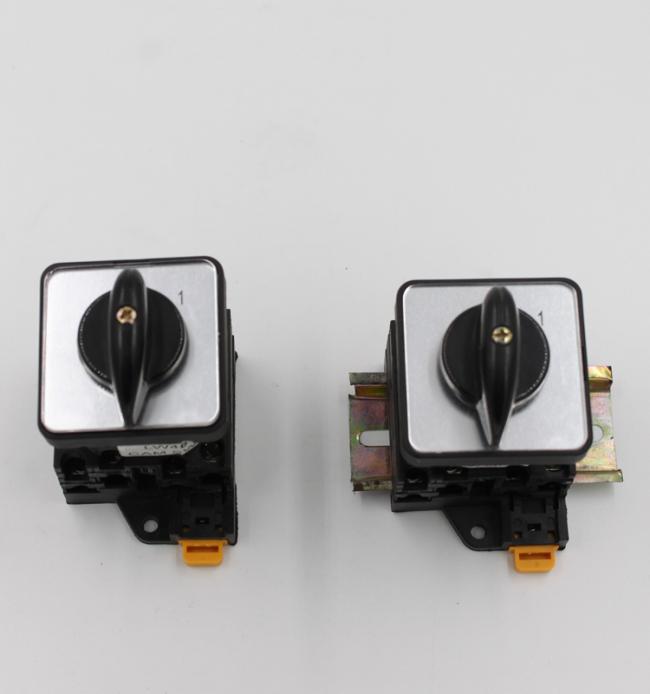

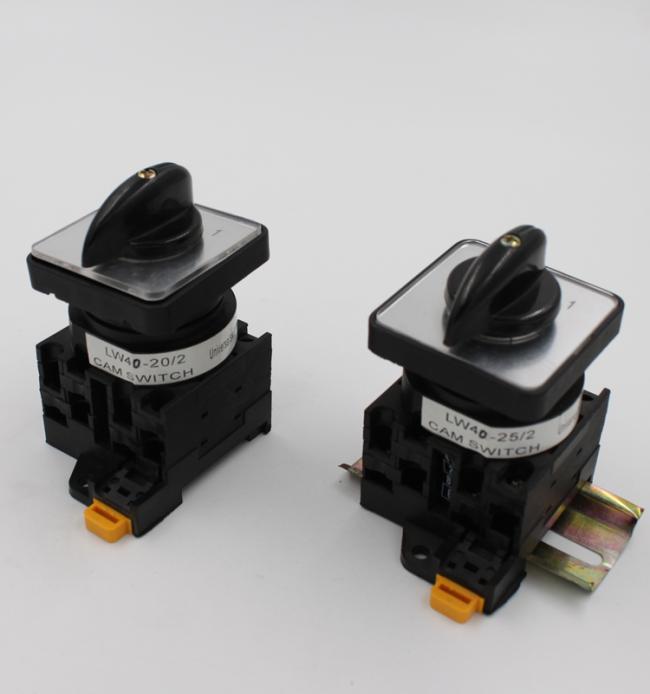

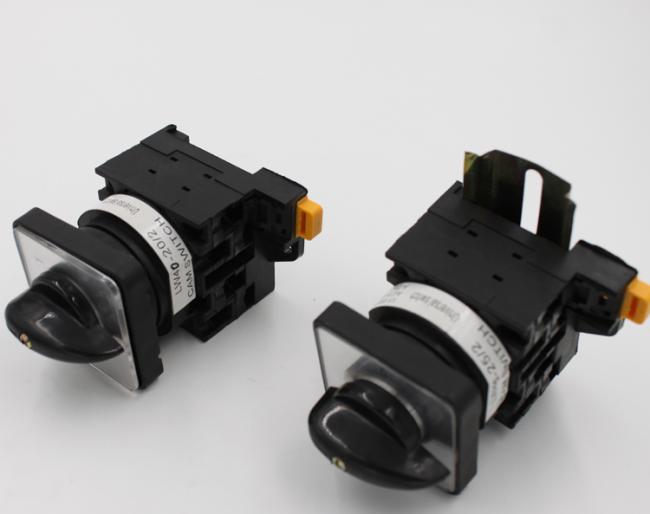

LW40 Series 25A 3-Pole 2-Position Rotary Cam Switch Din Rail Changeover Switch Product Category Rotary Switches
LW40 series Rotary Cam Switch with DIN-RAIL Mounting
LW40 series rotary switches are suitable for 50HZ AC 690V and below or DC 440V and below applied in control of machines lights protective device meansurement equipments as well as control motors.
General Features:
1. Wide range of function for switching, it has 20A
2. Capability for switching of resistive, or inductive, or mixed loads.
3. The most economical way for switching electrical loads.
4. Made of the best materials with high mechanical, electrical and thermal resistance.
5. Double-break bimetallic contacts made of silver alloy and Copper.
6. Terminals with screws provided with cable clamp.
7. Fast and easy installation and wring.
8. Capability to produce special Cam Switches based on customer requirements.
Advantage:
- LW26D series Rotary Cam Switches have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
- LW26D series Rotary Cam Switches have many different types of operation handle to choose by customer(“R”,”I”,”R2”,”B”,”F”,”L”,”P”and “K” types)
- LW26D series Rotary Cam Switches can produce the Maximum number of sections has 1~12 poles (63A only have 8 poles)
- LW26D series Rotary Cam Switches can produce transform angle: 30°/45°/60°/90°
- LW26D series Rotary Cam Switches have many different position of panel mounting to choose by customer.Such as: “0-1”,”0-1-2”,”1-0-2”,”0-1-2-3”,”0-1-2-3-4”,”L3L1-L2L3-L1L2-0-L1N-L2N-L3N”,”0-L1N-L2N-L3N”,”0-L1L2-L2L3-L3L1”,”0-L1-L2-L3” and so on…
Technical parameters:
| Description |
LW40-20
|
|||
| Rated thermal current | ITH |
A
|
20
|
|
| Rated workig voltage | Ue |
V
|
220
|
380
|
| Rated working current | Le | |||
| AC-15 |
A
|
4
|
||
| DC-13 |
A
|
1.2
|
||
| AC-3 |
A
|
5
|
||

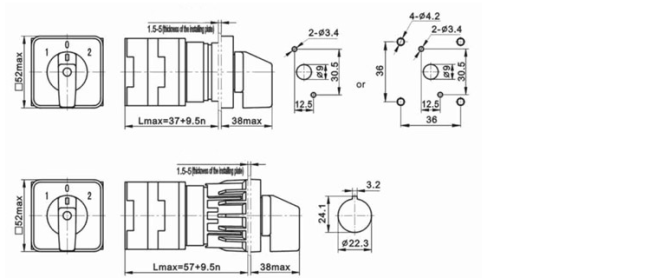

Dimensions and installation dimensions:
Handle operation and position:
| Operation method | Feature Code | Handle position | |||
| Momentary Type | A | 0°←30° | 0°←45° | 0°←60° | 0°←90° |
| B | 30°→0°←30° | 45°→0°←45° | 60°→0°←60° | 90°→0°←90° | |
| X | 60°→30°→0°←30°←60° | 90°→45°→0°←45°←90° | |||
| Y | 90°→60°→30°→0°←30°←60°←90° | ||||
| Position Maintain Type | C | 0° 30° | 0° 45° | 0° 60° | |
| D | 30° 0° 30° | 45° 0° 45° | 60° 0° 60° | ||
| E | 30° 0° 30° 60° | 45° 0° 45° 90° | 60° 0° 60° 120° | ||
| F | 60° 30° 0° 30° 60° | 90° 45° 0° 45° 90° | 60° 0° 60° 120° 180° | ||
| G | 60° 30° 0° 30° 60° 90° | 90° 45° 0° 45° 90° 135° | 120° 60° 0° 60° 120° 180° | ||
| H | 90° 60° 30° 0° 30° 60° 90° | 135° 90° 45° 0° 45° 90° 135° | |||
| I | 90° 60° 30° 0° 30° 60° 90° 120° | 135° 90° 45° 0° 45° 90° 135° 180° | |||
| J | 120° 90° 60° 30° 0° 30° 60° 90° 120° | ||||
| K | 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° | ||||
| L | 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° | ||||
| M | 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180° | ||||
| N | 45° 45° | 30° 30° | |||
| P | 90° 0° 90° | ||||
| T | 0° 90° | ||||
| V | 90° 0° | ||||
| R | 270° 0° 90° 180° | ||||
| Position Momentary Type | Q | 30° 0°←30° | 45° 0°←45° | ||
| S | 30°→0° 60° | 90° 0°←45° | |||
| W | 90°→45° 0° 45°←90° | ||||
| Z | 120°→90° 0°←30° | 135°→90° 0°←45° | |||
Normal working conditions:
1. Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
2. Working height: ≤2,000m
3. Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)
Mechaical life
Mechanical life without load:0.3×106times,operation frequency is 120times/h. .
Mechanical life with load:0.6×104times,operation frequency is120times/h
