LW30 Series 3-Phase 40A Isolator Manual AC Switch for 40A Current with 3P Configuration

Name: LW30 Series 3-Phase 40A Isolator Manual AC Switch for 40A Current with 3P Configuration
Brand: WENZHOU MEIHENG ELECTRIC CO.,LTD

Price Negotiable

Price: $6.75 / piece

MOQ: 250 pieces

Delivery Time: Negotiable

Brand: MEH

Product Description

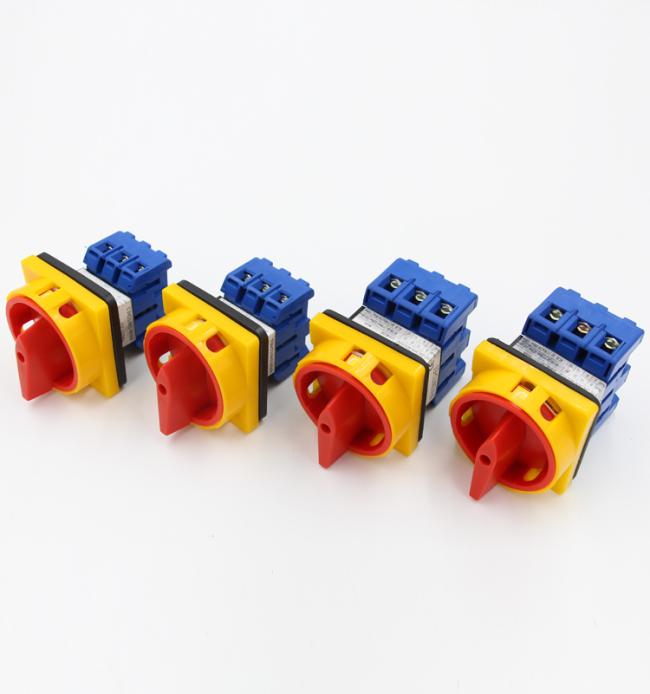

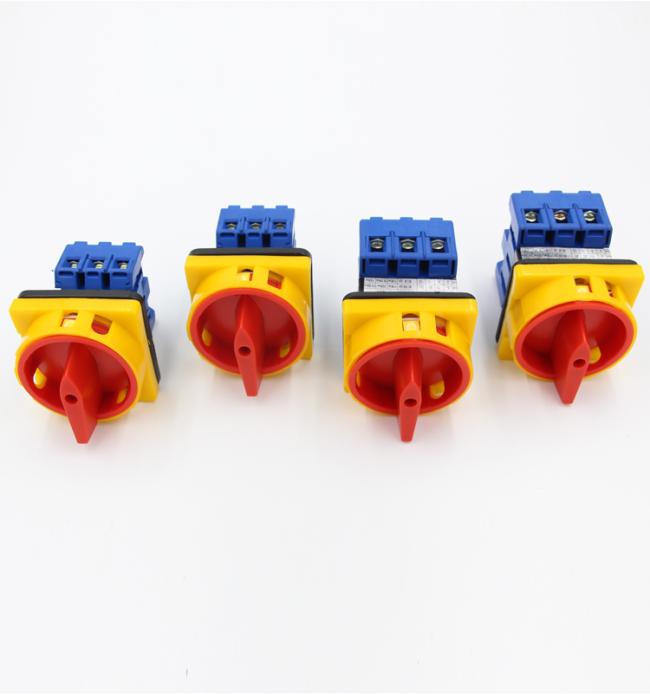

LW30 series Rotary Isolator Switch

Product Description

LW30 series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”

Product Description:

LW30 series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
LW30 Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
LW30 series Rotary Isolator switch have six current ratings: 20A,25A,32A,40A,63A,80A,100A
LW30 series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
LW30 series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.

General Features:

Wide range of function for switching, it has 20A,25A,32A,40A,63A,80A,100A
Capability for switching of resistive, or inductive, or mixed loads.
The most economical way for switching electrical loads.
Made of the best materials with high mechanical, electrical and thermal resistance.
Double-break bimetallic contacts made of silver alloy and Copper
20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).

Advantage:

LW30 series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
LW30 series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…

Technical parameters:

Description

LW30-25(20)

LW30-32

LW30-40

LW30-63

LW30-80

Rated thermal current

ITH

25(20)

Rated working voltage

240

440

240

440

240

440

240

440

240

440

Ie/Pe

AC-21A

A/KW

20/-

32/-

40/-

63/-

80/-

AC-22A

A/KW

20/-

32/-

40/-

63/-

80/-

AC-23A

A/KW

15/4

15/7.5

22/5.5

22/11

30/7.5

30/15

43/11

43/22

57/18.5

57/30

AC-3

A/KW

11.7/3

11.7/5.5

15/4

15/7.5

22/7.5

22/11

36/11

36/18.5

43/15

57/30

Dimensions and installation dimensions:

Description	Dimensions(mm)					Installation(mm)
Description	A	B	C	K	L	E	F	D1	D2
LW30-20	64	42	54	13.5	61	48	48	Φ10	Φ4.2
LW30-25	64	42	54	13.5	61	48	48	Φ10	Φ4.2
LW30-32	64	42	54	13.5	61	48	48	Φ10	Φ4.2
LW30-40	64	50	64	16	67	48	48	Φ10	Φ4.2
LW30-63	64	50	64	16	67	48	48	Φ10	Φ4.2
LW30-80	64	70	80	22.5	82	48	48	Φ10	Φ4.2
LW30-100	64	70	80	22.5	82	48	48	Φ10	Φ4.2

Description	Dimensions(mm)					Installation(mm)
Description	A	B	C	L	H	E	F	D2
LW30-20	45	42	54	50	26	22	60	Φ4.2
LW30-25	45	42	54	50	26	22	60	Φ4.2
LW30-32	45	42	54	50	26	22	60	Φ4.2

Normal working conditions:

Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
Working height: ≤2,000m
Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.
Main switch Control switch

2. Classified by Usages
AC-23A AC-3
