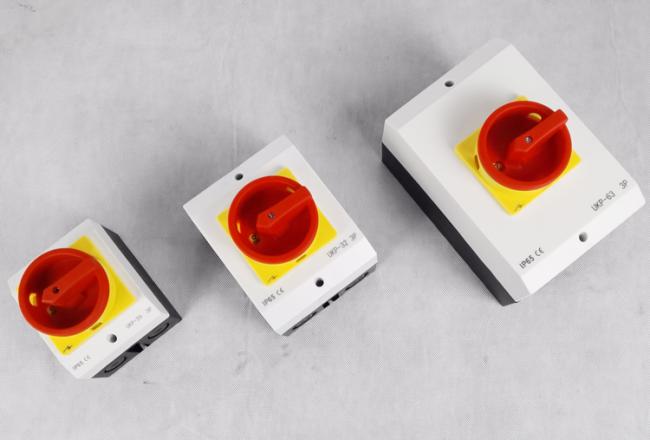

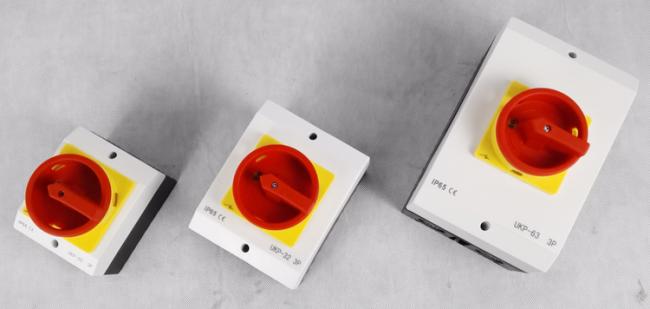

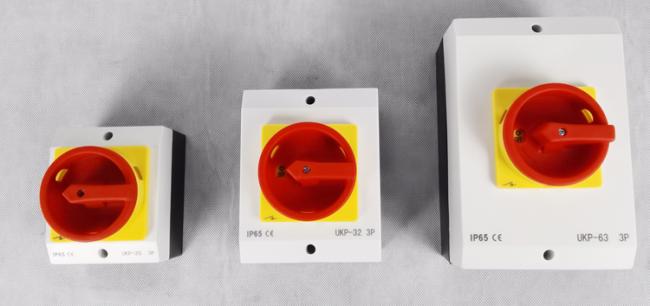

IP65 Waterproof 3 Phase Rotary Isolator Switch 63A 3Pole AC 63A 3Pole Rotary Load Disconnector Switch Plastic Metal Instrument
Price:
$7.85 / piece
MOQ:
100 pieces
Delivery Time:
Negotiable
Brand:
OEM
Product Description
LW30 series Rotary Isolator Switch
Product Description
SHT series and SHP Series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”
Product Description:
- SHT series and SHP Series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
- SHT series and SHP Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
- SHT series and SHP Series Rotary Isolator switch have six current ratings: 16A,20A,25A,32A,40A,63A,100A
- SHT series and SHP Series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
- SHT series and SHP Series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.
General Features:
- Wide range of function for switching, it has 16A,20A,25A,32A,40A,63A,100A
- Capability for switching of resistive, or inductive, or mixed loads.
- The most economical way for switching electrical loads.
- Made of the best materials with high mechanical, electrical and thermal resistance.
- Double-break bimetallic contacts made of silver alloy and Copper
- 20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).
Advantage:
- SHT series and SHP Series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
- SHT series and SHP Series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…
Technical parameters:
Dimensions and installation dimensions:
Normal working conditions:
- Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
- Working height: ≤2,000m
- Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)
Classification
1. Classified by utilization, control and load switch.
Main switch Control switch
2. Classified by Usages
AC-23A AC-3
- Classified by Protection level
Without Water-proof box:IP2L0 With Water-proof box:IP65
| Item | Current(A) | Number of Poles |
| UKP-16/20 | 16A/20A | 3P/4P |
| UKP-25 | 25A | 3P/4P |
| UKP-32 | 32A | 3P/4P |
| UKP-40 | 40A | 3P/4P |
| UKP-63 | 63A | 3P/4P |
| UKP-80 | 80A | 3P/4P |
| UKP-100 | 100A | 3P/4P |
