3 Phase 4 Wire Energy Meter XTM1250SA-U Series DIN Rail Type Digital KWH Meter 3*10(40)A 380V

Application:

Model XTM1250SA-U three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21.

It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. Contact with all kind of AMR system conveniently It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. 2012 3 0473416.7, any other country patent certificate are in assessing.

.

Functions and features:

1. XTM1250SA-U series power meters; 35mm standard DIN rail installation , complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.
2. XTM1250SA-U series power meters;Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

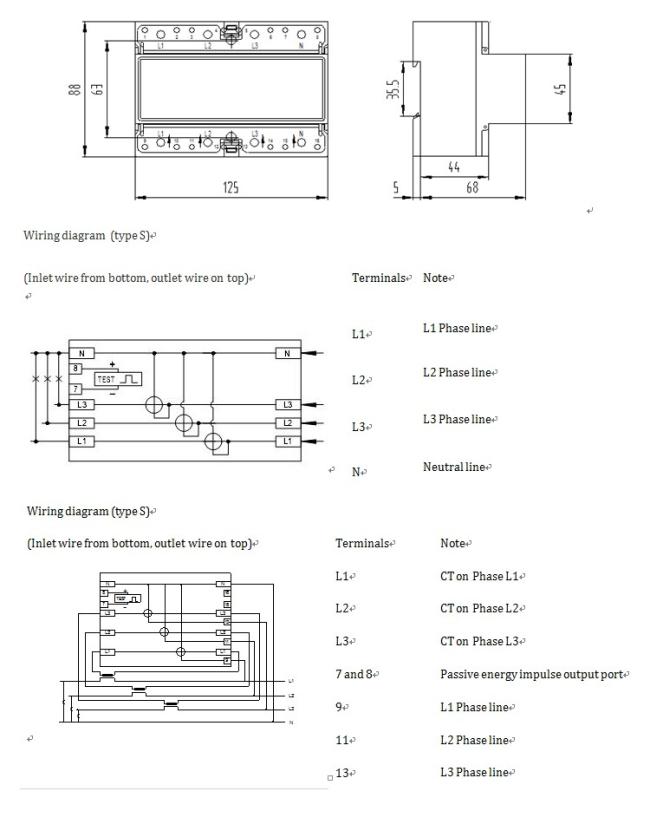

3. XTM1250SA-U series power meters;Type S wiring (Inlet from bottom, outlet from top).
4. XTM1250SA-U series power meters; Seven digits display LCD, 6+1 digits display (999999.1 kWh)
5. XTM1250SA-U series power meters; There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant (the output rate is 10 kWh/pulse), ).Complying with standard IEC 62053-31 and DIN 43864.
6. XTM1250SA-U series power meters; Six LED instructions respectively every power supply state, signal of closed energy impulse and distant energy impulse and data communication state.
7. XTM1250SA-U series power meters; Automatic detection the direction of the flow of load current. And Instructions on individual LCD
8. XTM1250SA-U series power meters; Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
9. XTM1250SA-U series power meters; Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety.

Further information:

1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.

2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.

3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.

FAQ

A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit

B. Would you accept OEM/ODM service?

Glad to say that there is planning department, technical department and mould tooling center in

our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.
