MSQ series type Current Transformer MSQ-30 / MSQ-40 / MSQ-60 / MSQ-100 / MSQ-125
Uses and applications:
MSQ range of current transformers can be applied to test,control,display and record the running of the electrical equipment,and to protect the equipment against the damage,in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.
This MSQ series of CT can be applied to test,control.display and record the running of the electrical equipment,and to protect the equipment against the damage.In the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.The products comply with IEC -185 standard.
Features:
1. Safe. Easy to install, porttable
2. Wide inner window, allowing clamping of big cables or bus-bars
3. Wide range of sizes to accommodate all the existing installations
Application:
1. Current measurement, monitoring and protection for electrical wiring and equipment.
2. Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.
3. Current, power and energy monitoring device.
4. Relay protection device.
Technical Specification:
| Electrical Parameter | Mechanical Parameter | ||
| Frequency | 50/60Hz | Case | PC/UL94-V0 |
| Rated Input | 1A-5000A | Bobbin | PBT |
| Measuring range | 5%In-120%In | Core | Silicon steel |
| Rated Output | 1A,5A | Construction | Screw |
| Ratio Voltage | 0.72KV (AC) | Operating Temp | -25℃~+75℃ |
| Dielectric strength | 3.0KV/1mA/1min | Operating Humidity | ≤85% |
| Insulation Resistance | DC500V/100MΩ min | Output Connection | Terminal |
Technical Parameter:
| Model | Primary / Secondary | Busbar Hole Dimensions(mm) | Rated Burden (VA) | Accuracy Class | Rated Voltage |
| MSQ-30B | 5/5A~300/5A | busbar | 5~7.5 | 0.5 / 1.0 | 0.72KV(AC) |
| MSQ-30 | 30/5A~300/5A | φ=30mm | 2.5~10 | 0.5 / 1.0 | 0.72KV(AC) |
| MSQ-40 | 100/5A~500/5A | φ=40mm | 2.5~10 | 0.5/1.0 | 0.72KV(AC) |
| MSQ-60 | 250/5A~1600/5A | φ=60mm | 5~15 | 0.5/1.0 | 0.72KV(AC) |
| MSQ-85 | 750/5A~2000/5A | φ=85mm | 5~15 | 0.5/1.0 | 0.72KV(AC) |
| MSQ-100 | 800/5A~3000/5A | φ=100mm | 5~15 | 0.5/1.0 | 0.72KV(AC) |
| MSQ-125 | 1000/5A~6000/5A | φ=125mm | 5~20 | 0.5/1.0 | 0.72KV(AC) |

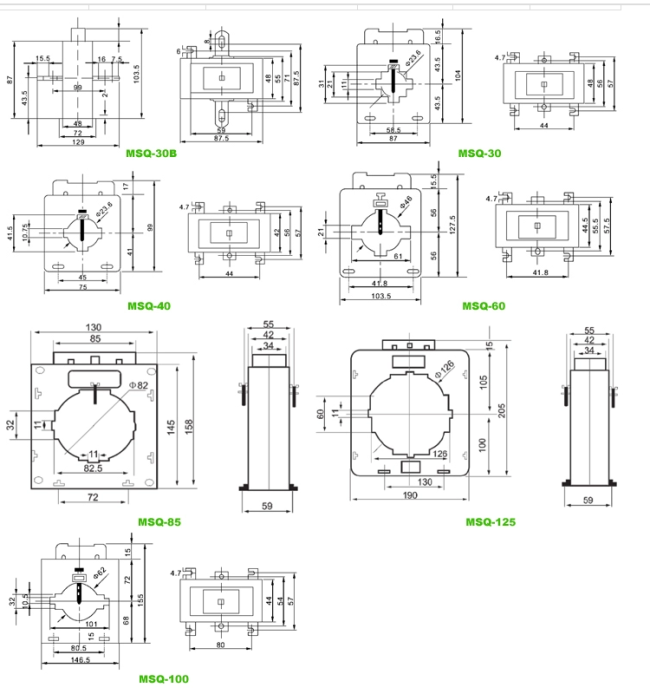

Overall Dimension Drawing:
Inside Structure Parts Details Images:

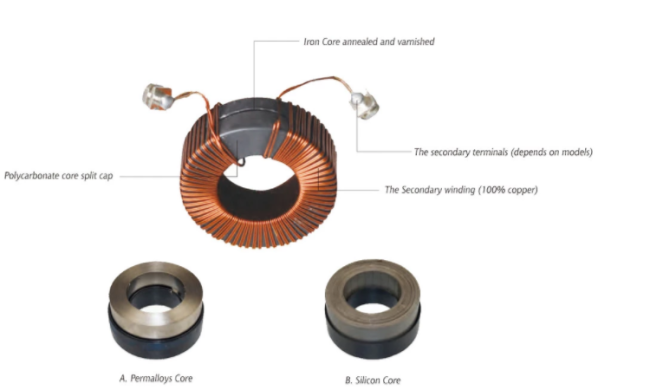

CT consist of primary winding, secondary winding, magnetic core and insulated body. The high-grade silicon steel core is annealed, varnished then insulated with polycarbonate core caps. The secondary winding is toroidally wound by high precision semi-automatic machinery. For the tape wound ring type current transformer, the PEW coated windings are then covered with elephantite paper, varnished and double-tapped with PVS tapes. For the encapsulated type current transformer, the windings are enclosed in a compact and heat resistant split cap.
How to Mounting :

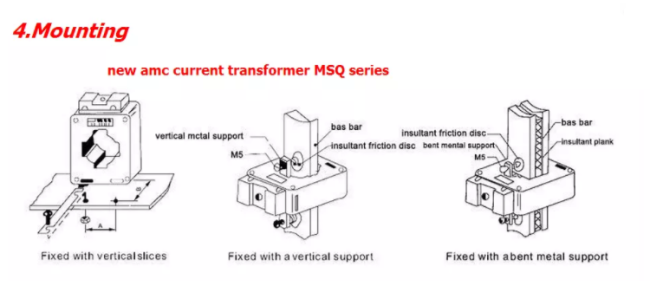

MSQ series: MSQ-30 (small), MSQ-30(large) ,MSQ-40, MSQ-60, MSQ-100
Further information:
1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.
2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.
3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.
