Scaffolding Steel Prop Adjustable Telescopic Shoring Jack Formwork Post
Scaffolding Steel Prop Adjustable Telescopic Shoring Jack Formwork Post
Product Introduction
The scaffolding steel prop is an essential heavy-duty telescopic shoring jack designed for temporary vertical support in slab formwork, beam shoring, wall form reinforcement, and civil construction projects. Engineered with high-strength carbon steel tubing and high-precision threaded adjustment sleeves, this adjustable steel prop provides superior load-bearing capacity, rapid height adaptation, and reusable structural safety for contractors and building professionals worldwide.
Structural Characteristics and Technical Superiority

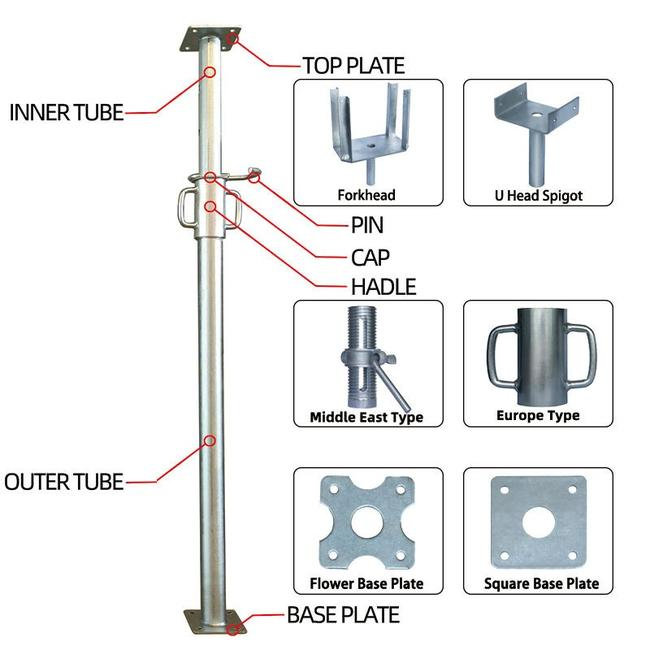

Available in Middle East, Spanish, and Italian structural configurations, each telescopic shoring post features smooth rolled threading, high-tensile locking G-pins, and ergonomic turning handles for micro-height regulation under full load. The outer and inner steel tubes are precision-welded with square or flower base plates. Multiple surface protection treatments including hot-dip galvanizing, electro-galvanizing, and durable powder coating protect against harsh construction site corrosion.

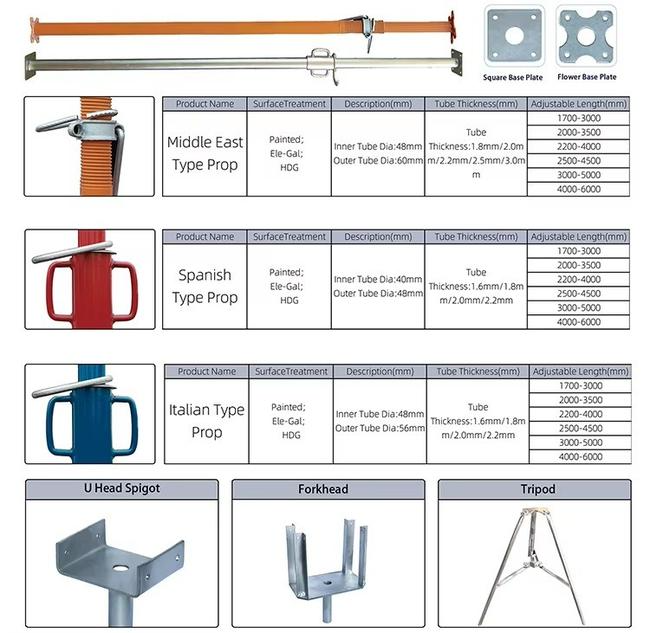

Technical Specifications
| Prop Type | Tube Dimension (Inner/Outer) | Adjustable Range & Thickness |
|---|---|---|
| Middle East Type | Inner: Ø48 mm | Outer: Ø60 mm | 1.7m–3.0m up to 4.0m–6.0m Thickness: 1.8mm to 3.0mm |
| Spanish Type | Inner: Ø40 mm | Outer: Ø48 mm | 1.7m–3.0m up to 4.0m–6.0m Thickness: 1.6mm to 2.2mm |
| Italian Type | Inner: Ø48 mm | Outer: Ø56 mm | 1.7m–3.0m up to 4.0m–6.0m Thickness: 1.6mm to 2.2mm |
| Surface Finishes | Painted, Electro-Galvanized, Hot-Dip Galvanized (HDG) | |
| Plate & Head Options | Square / Flower Base Plate; U Head Spigot, Forkhead, Tripod | |
Versatile Construction Applications
Widely utilized across commercial high-rises, residential housing, bridge decking, tunnel construction, and concrete precast installations. The modular shoring prop integrates seamlessly with formwork timber H20 beams, steel walers, and scaffolding frame systems, providing stable vertical load distribution with rapid jobsite turnaround.
Manufacturing Quality and Container Packaging

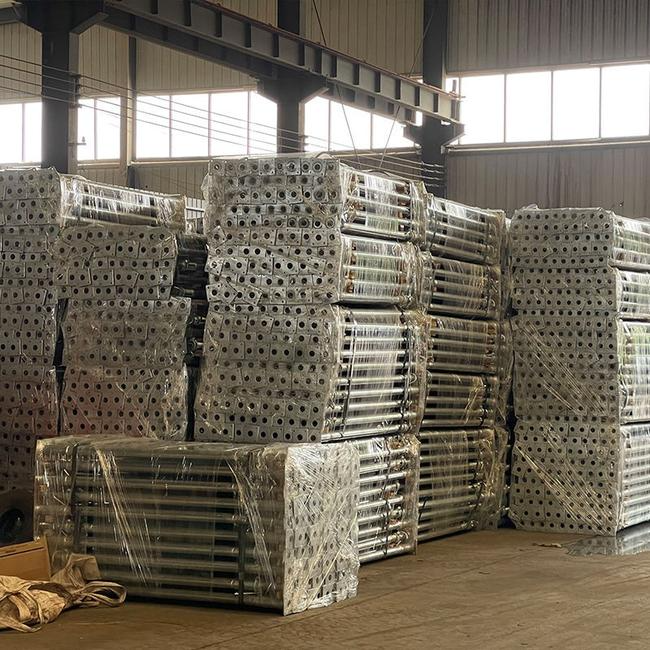

Manufactured according to international scaffolding safety standards (EN 1065 / BS 4074), every batch undergoes strict axial compression testing, welding seam ultrasonic inspection, and galvanizing thickness checks. Props are bundled with reinforced steel strapping and palletized for safe container loading and seaworthy ocean transit.
