Electric Scaffold Lift Platform 2-6m | Portable Mobile Scaffolding for Painting

1. Product Introduction

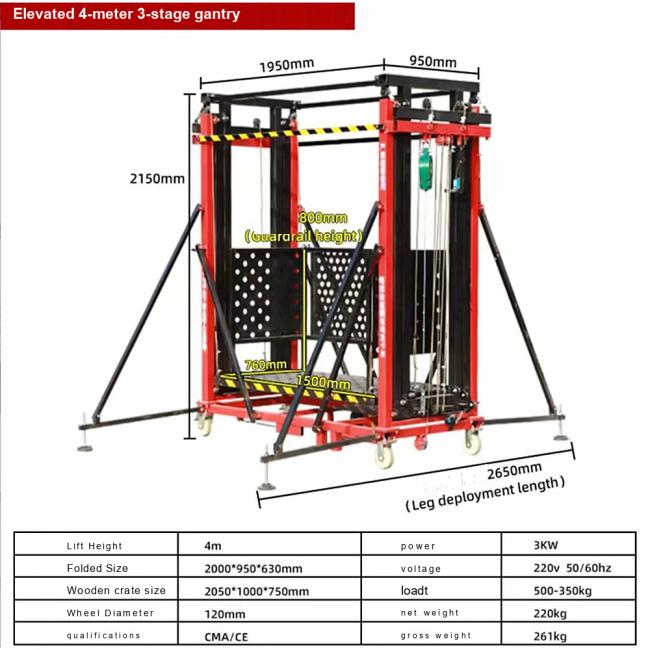

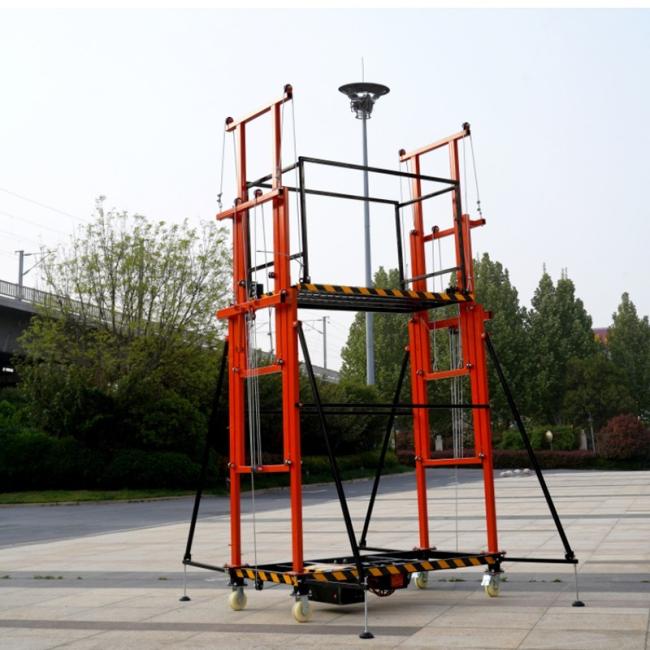

Songmao electric scaffold lift platform is a mobile electric work platform that lifts one operator and tools to 2-6 m working height. It folds for transport, rolls on four swivel casters and is levelled by four screw jack outriggers.

2.Characteristics

Steel mast and platform frame. Powder coated or hot dip galvanized finish. Hazard striped platform edge with guardrail frame. Four swivel casters. Four screw jack outriggers with diagonal bracing. 220V / 380V electric drive. Foldable mast. Colour and logo customizable.

3. Technology

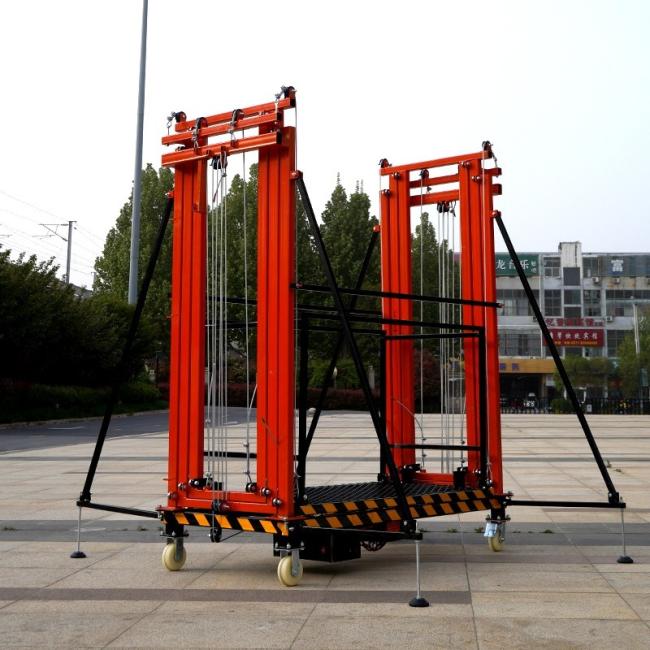

 Electric winch drive with steel cable lifting. Cables run from the base winch through pulleys at the mast top and return to the platform, which travels along the mast guides. Outriggers and braces form a rigid triangle between base frame and masts

4. Principle

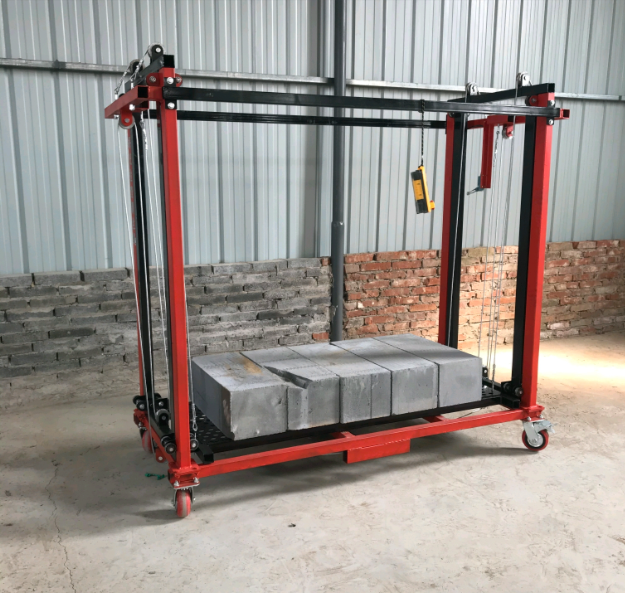

The winch winds the cables to raise the platform and lowers it under brake control. Load passes from the platform through the mast rails and base frame into the outrigger legs and casters.
