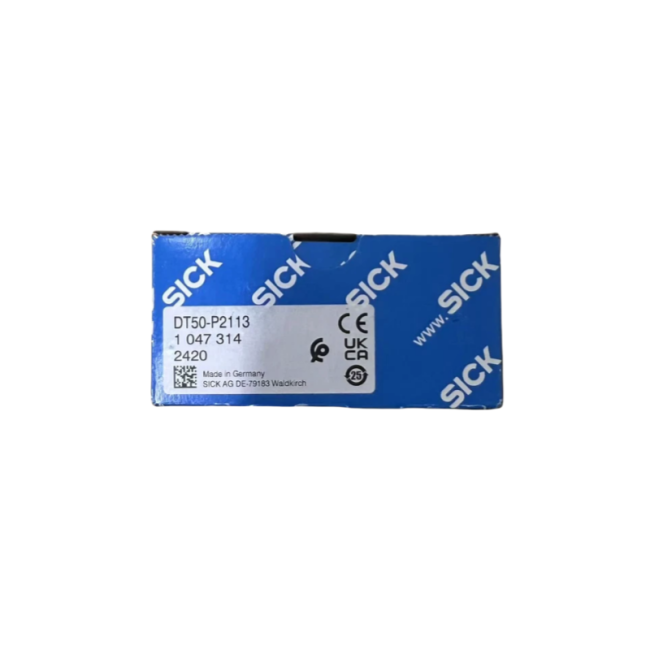

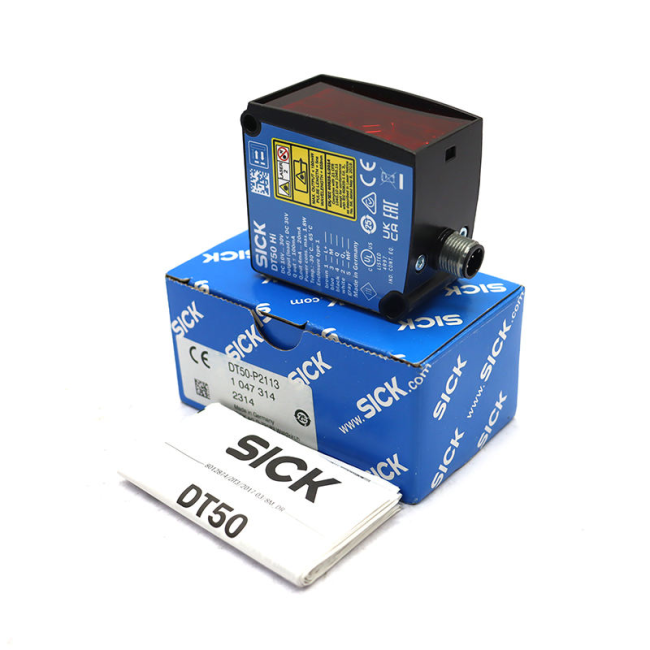

New Original SICK DT50-P2113 Laser Distance Measuring Sensor Photoelectric Sensor DT50-P2113 for Industrial Automation

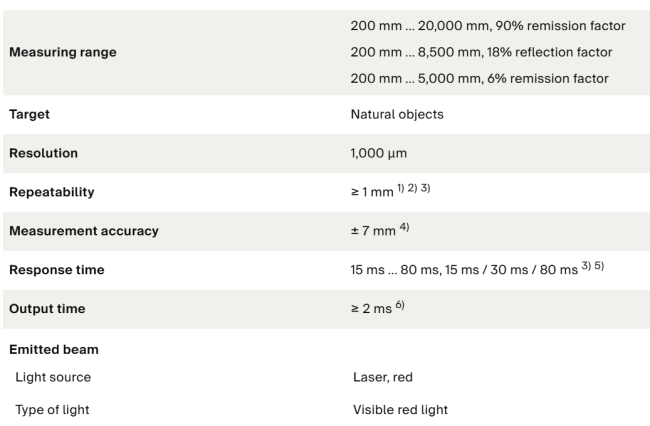

Long measuring range up to 20,000 mm on natural objects with 90% remission
Reliable detection on low reflective targets at 5,000 mm for 6% remission
HDDM technology for high reliability, ambient light immunity and excellent price to performance ratio
Laser class 2 visible red light source for safe and easy alignment
Pulse flight time measurement principle for fast and accurate distance detection Measuring range up to 50 m when using a reflector
Dual output with 4 mA to 20 mA analog output and 1 x PNP digital output
High repeatability from 1 mm for precise positioning tasks
Easy adjustment via LC display and LED indicators
Intuitive setup with teach in and multifunctional input for external configuration
Rugged zinc diecast metal housing for industrial durability
Wide operating temperature range from -30 °C to +65 °C for outdoor and cold storage use
High ambient light immunity up to 40,000 lx for reliable operation in optically challenging environments
IP65 enclosure rating for dust protection and water resistance

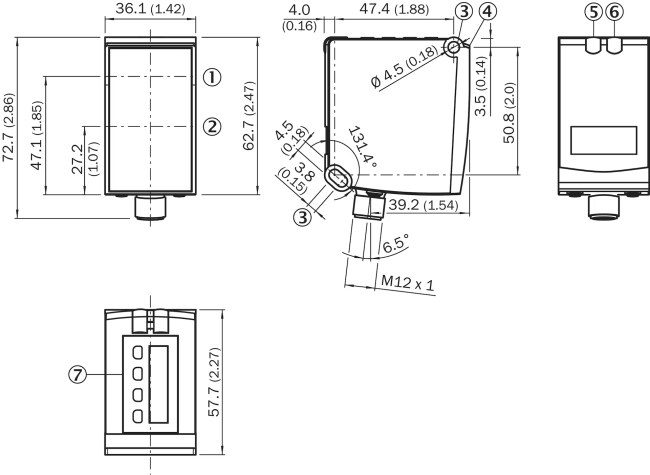

Compact dimensions of 36.1 mm x 62.7 mm x 57.7 mm for flexible mounting

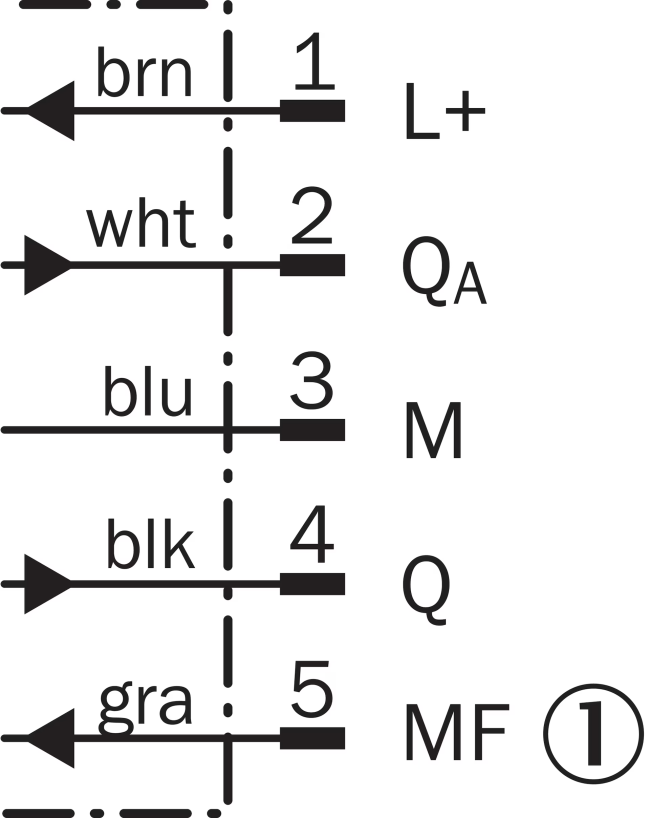

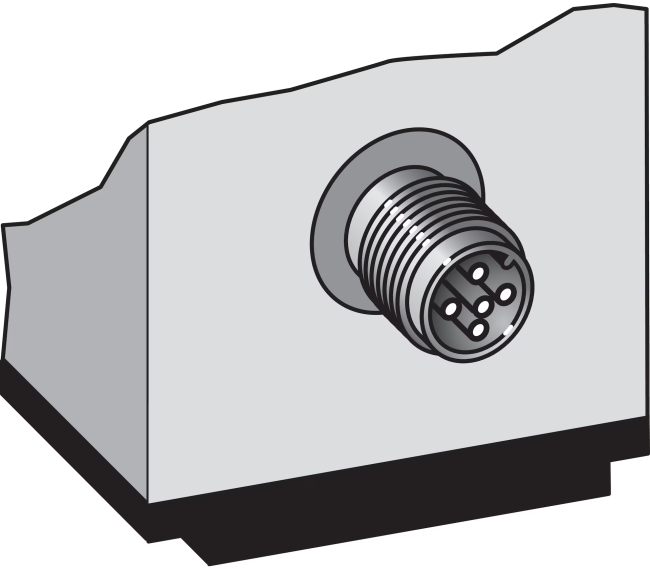

M12 5 pin male connector for secure and quick electrical connection
Low power consumption at only 2.1 W without load

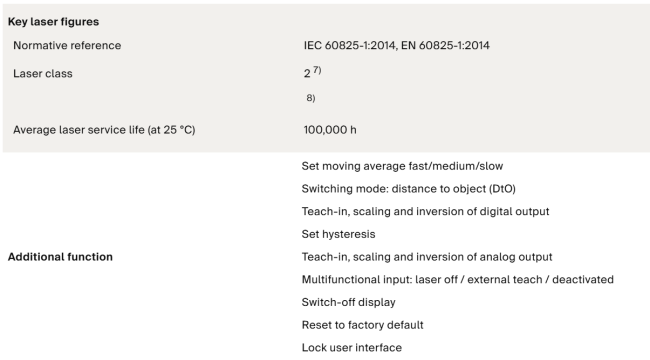

Long laser service life of 100,000 hours at 25 °C
