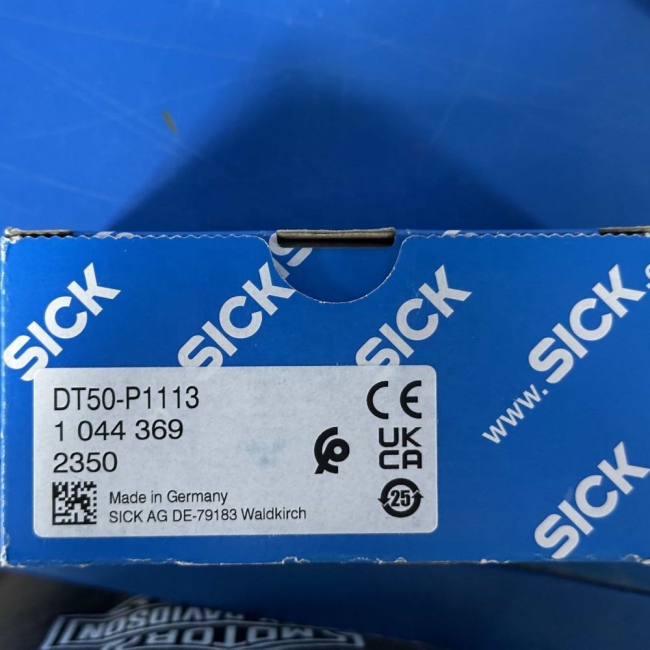

100% New Original SICK DT50-P1123/P1113/P2113 Laser Distance Measuring Sensor Order No. 1044369 for Industrial Automation

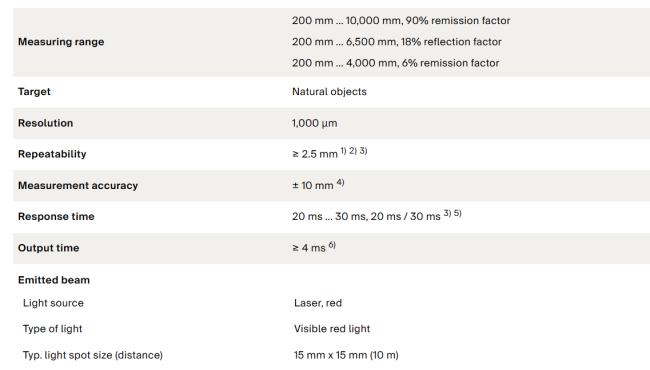

Measuring range from 200 mm to 10,000 mm on natural objects with 90% remission
Reliable detection on low reflective targets at 4,000 mm for 6% remission and 6,500 mm for 18% remission
HDDM technology for high reliability, excellent ambient light immunity up to 40,000 lx, and superior precision
Laser class 2 visible red light source for safe and easy alignment Pulse flight time measurement principle for fast and accurate distance detection 1 mm resolution for precise positioning tasks
Dual output with 4 mA to 20 mA analog output and 1 x PNP digital output
Easy adjustment via LC display and 2 x LED indicators
Intuitive setup with teach in and multifunctional input for external configuration
Rugged zinc diecast metal housing for industrial durability
Wide operating temperature range from -30 °C to +65 °C for outdoor and cold storage use
High ambient light immunity up to 40,000 lx for reliable operation in challenging environments
IP65 enclosure rating for dust protection and water resistance

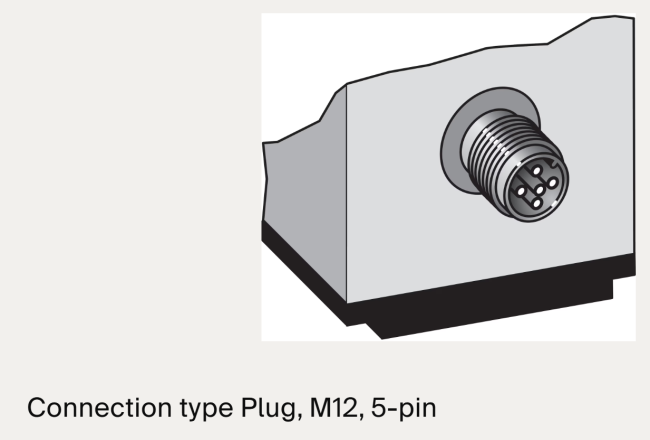

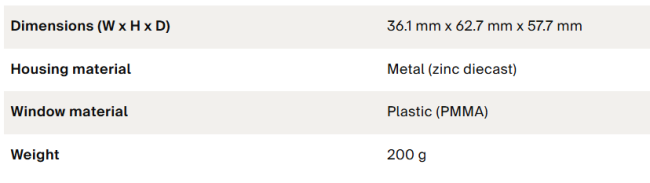

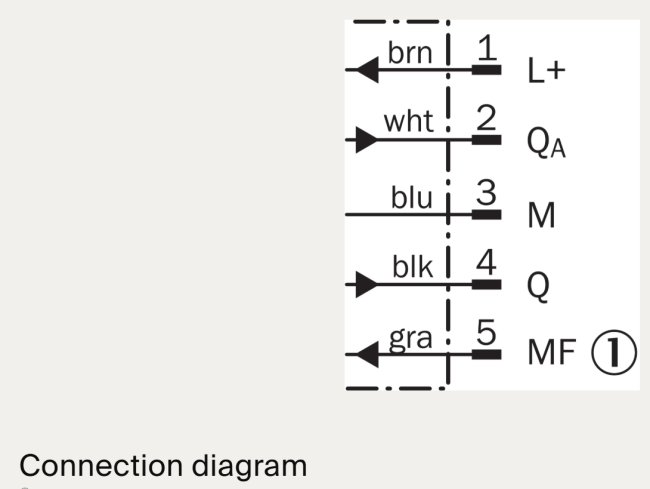

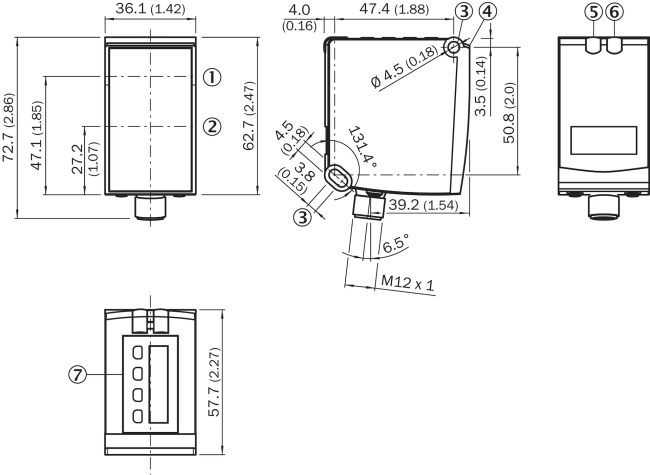

Compact dimensions of 36.1 mm x 62.7 mm x 57.7 mm for flexible mounting M12 5 pin male connector for secure and quick electrical connection

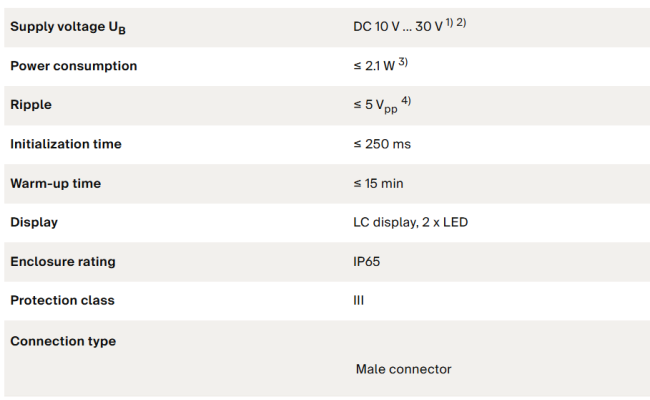

Low power consumption at only 2.1 W

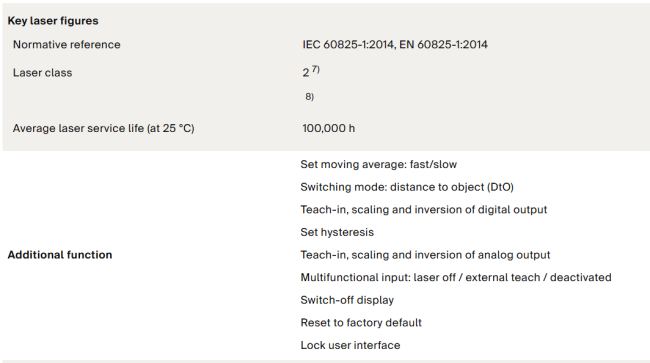

Long laser service life of 100,000 hours at 25 °C
