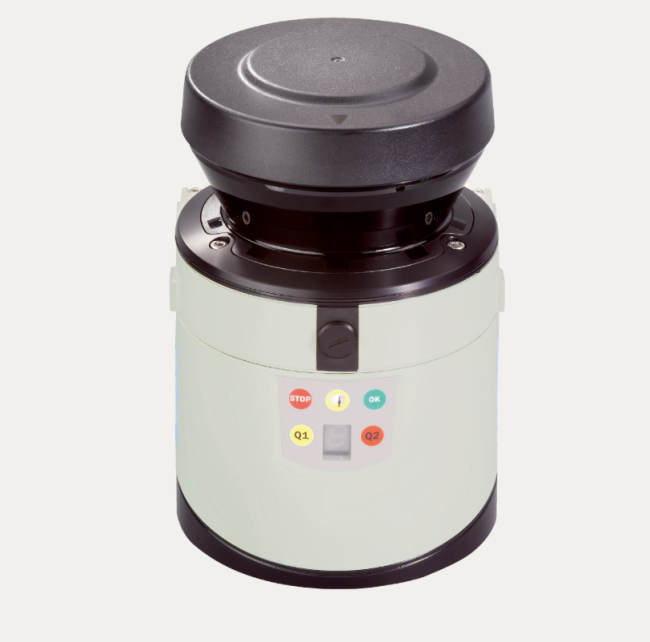

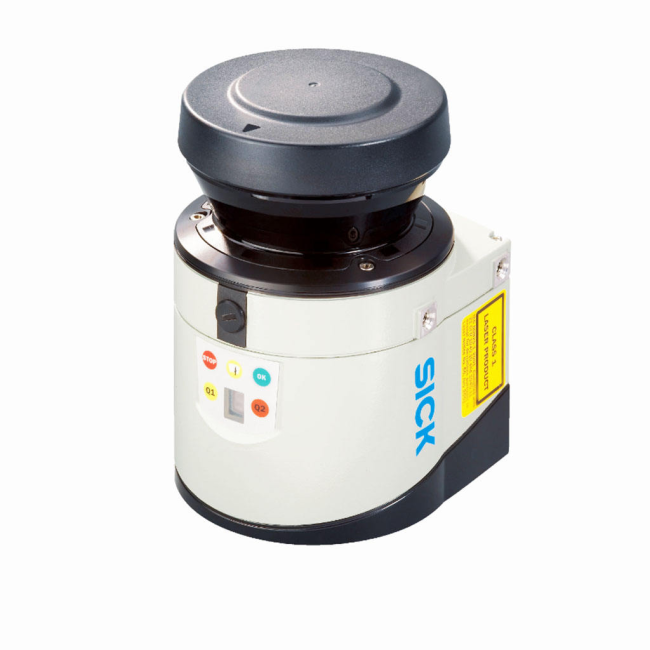

Germany SICK LMS111-10100 Safety Laser Scanner Original New for AGV Collision Protection & Industrial Automation Process Control
Compact and lightweight design for easy integration into mobile platforms and space-constrained applications

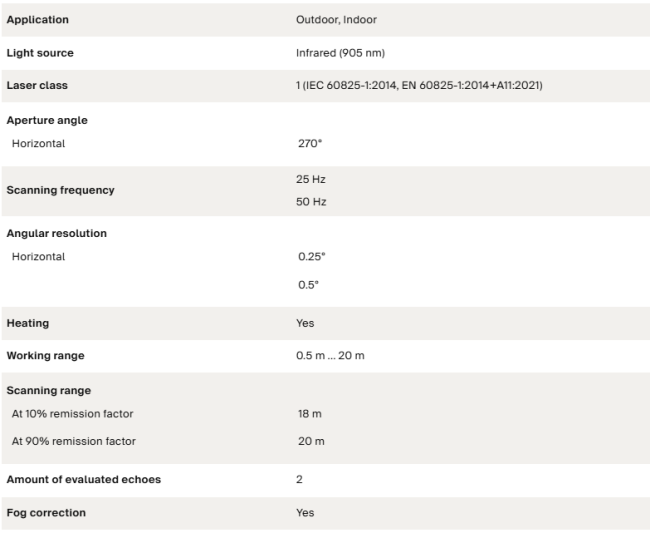

Measurement range up to 20 meters on natural objects for reliable outdoor and indoor detection

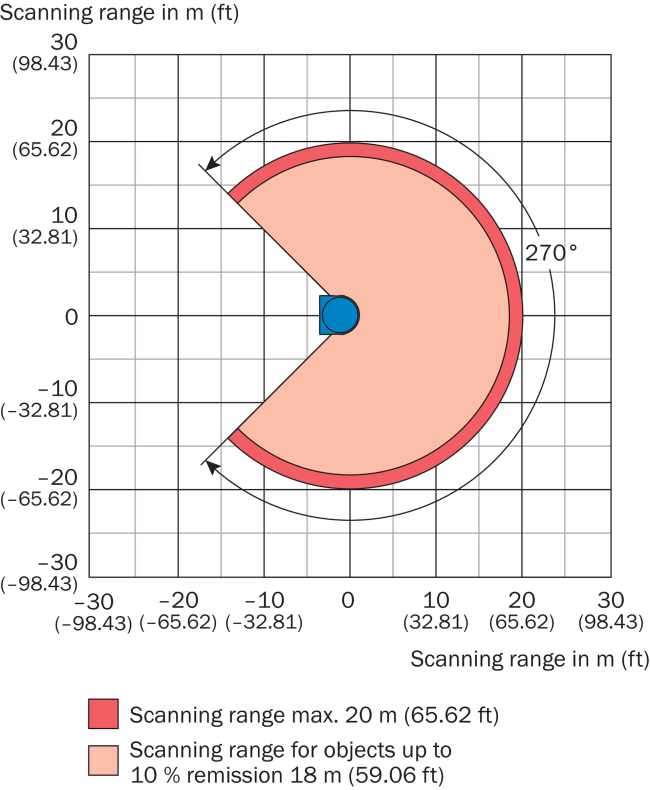

Scanning angle of 270 degrees for wide area coverage with minimal blind spots
High angular resolution of up to 0.25 degrees for detailed object detection and accurate mapping
Multiple echo technology for stable measurement even through dust, rain, fog, and dirt
Laser class 1 for completely safe operation around personnel without protective equipment
Measurement rate of 25,000 to 50,000 points per second for high-speed and dense data acquisition
IP67 enclosure rating for dust-tight and water-resistant performance in harsh industrial environments
Rugged aluminum housing for durability in demanding outdoor conditions
Wide operating temperature range from -30 °C to +50 °C for reliable use in extreme weather
Ethernet interface for easy configuration, real-time data output, and system integration
Simple setup and monitoring using SOPAS ET configuration software

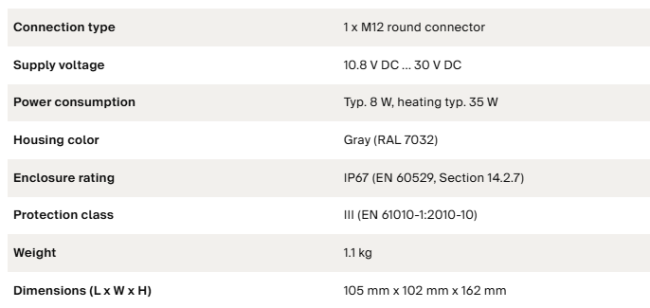

Low power consumption of only 8 W for energy-efficient continuous operation

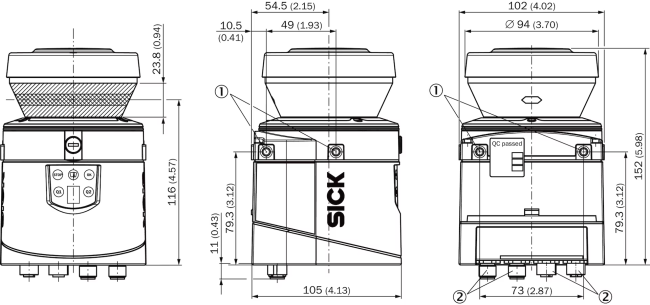

Compact dimensions of 106 mm x 102 mm x 162 mm for flexible mounting
Lightweight at only 1.1 kg for reduced load on mobile platforms
Suitable for obstacle detection, collision avoidance, navigation support, and perimeter monitoring on AGVs, forklifts, and mobile robots
Fast data output with 25 Hz to 50 Hz scanning frequency for real-time responsiveness
Visible red laser light at 905 nm wavelength for easy alignment during installation
