New Hirschmann RS20-1600T1T1SDAUHC Managed Industrial Switch - 14-Port Fast Ethernet, IP20, DIN Rail

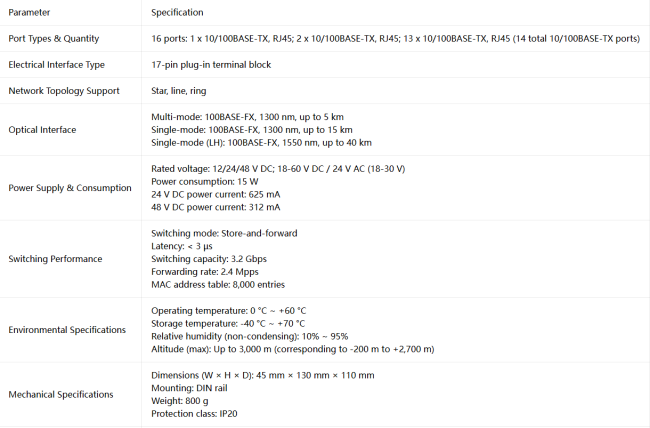

Model RS20-1600T1T1SDAUHC: Managed Industrial Ethernet Switch from the Hirschmann RS20 Series, designed for DIN rail mounting.
14 x 10/100BASE-TX RJ45 ports, supporting star, line and ring network topologies.
Wide input voltage range of 12/24/48 V DC (18-60 V DC / 24 V AC), low power consumption of only 15 W.
Store-and-forward switching mode with 3.2 Gbps switching capacity and 2.4 Mpps forwarding rate, supporting 8,000 MAC address entries.
Operating temperature range of 0~+60℃, IP20 protection rating, suitable for harsh industrial environments.

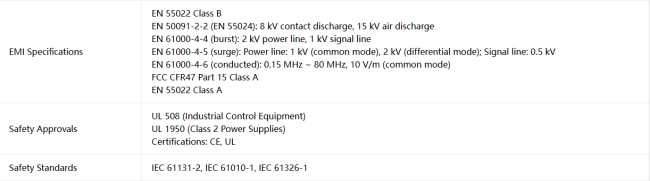

Compliant with major EMC and safety standards including EN 55022, EN 61000 series, UL 508, and IEC 61131-2.
One-year factory warranty, in stock with competitive price and fast global shipment.
Wuhan Jicheng Intelligent Technology Co., Ltd specializes in industrial automation products, particularly Siemens' solutions, with over ten years of experience. We are specializing in the export of electrical and industrial automation products such as Siemens/YOKOGAWA/ROSEMUNT/ Delta /ABB/ E+H/IFM /DCS PLC, Level/flow/Pressure transmitter , Power Module,Frequency Converter, Soft Starter,Circuit Breaker , HMI,. etc
