Low Partial Discharge 50kV AC Withstand Testing Equipment 5kVA Power Frequency Test System with Electric Control Console for High Voltage Insulation Evaluation
Product Description
5kVA/50kV Power Frequency PD-Free AC Withstand Test System
The 5kVA/50kV Power Frequency PD-Free AC Withstand Test System is a specialized high-voltage solution for manufacturers that need to verify insulation performance during electrical product production. It applies power-frequency AC voltage to the test object while maintaining a low partial discharge background from the test source.

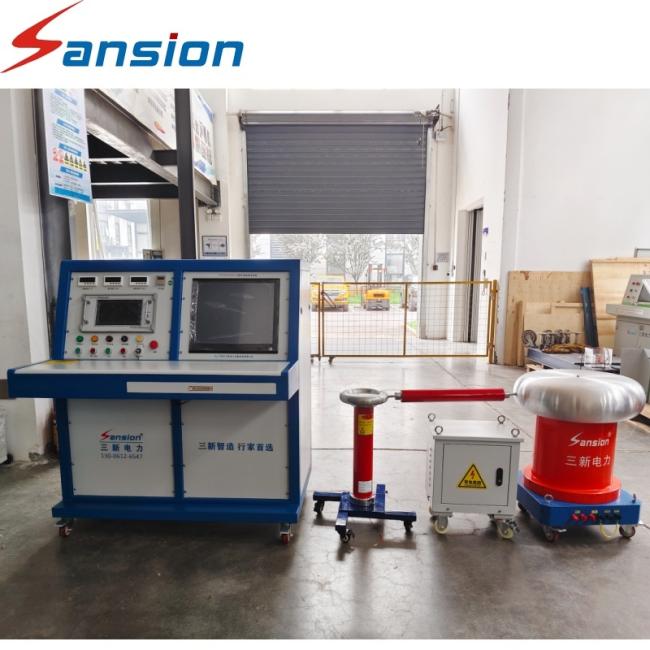

The system incorporates a Motorized Operation Console, Power Supply, PD-Free Test Transformer, and Voltage Divider. The electric console controls the voltage application process, while the dedicated transformer provides the required high-voltage output. The voltage divider enables high-voltage measurement, allowing the complete equipment to be used as an integrated factory testing station.
Product Parameters
|
Item |
Specification |
|
System Type |
Power Frequency PD-Free AC Withstand Test System |
|
Rated Capacity |
5kVA |
|
Test Voltage |
50kV AC |
|
Frequency |
50Hz / 60Hz |
|
Operation |
Motorized |
|
HV Transformer |
PD-Free Test Transformer |
|
Measurement |
Voltage Divider |
Product Advantages
- Factory Inspection Ready — Suitable for incorporating insulation withstand testing into production quality control.
- Low-PD Test Source — Reduces unwanted discharge originating from the high-voltage transformer.
- Electric Voltage Regulation — Makes repeated production tests easier to operate.
- Integrated Measurement — Includes a dedicated voltage divider for high-voltage measurement.
- Complete System Configuration — Eliminates the need to separately match the principal testing components.
Application Scenarios
- Transformer manufacturing factories
- Distribution transformer production
- Electrical equipment production lines
- Factory quality control laboratories
- Transformer routine inspection
- Electrical product acceptance testing
FAQ
Q1: Is this system suitable for transformer manufacturers?
A: Yes. It is suitable for applicable insulation withstand and low-PD testing procedures during transformer production.
Q2: What is the test voltage?
A: The standard configuration provides up to 50kV AC power-frequency test voltage.
Q3: How is the voltage controlled?
A: Voltage is regulated through the motorized operation console.
Q4: What are the main components?
A: Motorized operation console, power supply, PD-free test transformer, and voltage divider.
