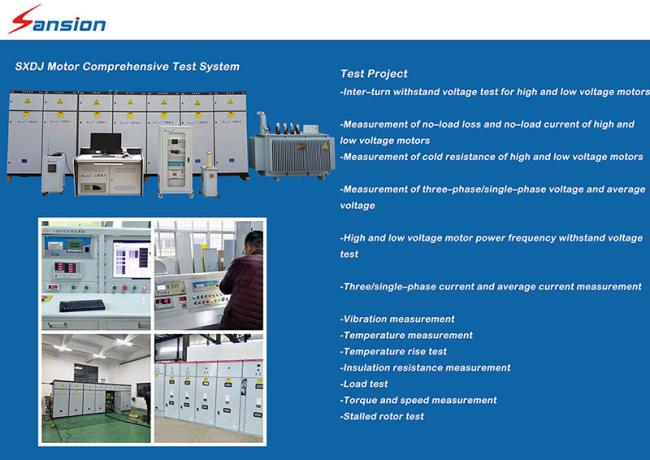

Industrial Motor Comprehensive Testing System for 0-10000kW Motors with Insulation Resistance and Load Testing
Product Introduction
The Integrated Motor Test System is a configurable testing platform for evaluating the electrical, mechanical and thermal characteristics of industrial motors. Designed for motor manufacturers, R&D laboratories and testing centers, the system brings together test power supply, electrical measurement, mechanical loading, temperature acquisition, control and data analysis in one integrated solution.
System Architecture
- Test Power Supply
Provides controlled AC, DC or variable-frequency power according to the motor and test stage. - Motor Measurement Unit
Measures electrical parameters such as voltage, current and resistance. - Load System
Applies controlled mechanical load during motor performance testing. - Temperature Acquisition
Collects temperature data from measurement points on the motor. - Torque & Speed Measurement
Provides mechanical operating data for performance evaluation. - Industrial Control Computer
Coordinates system operation and provides the main HMI. - Test Software
Handles test configuration, automatic control, data acquisition, calculation, storage and report generation.
Key Advantages
Integrated Architecture
Power supply, measurement, loading, acquisition and software are combined into one coordinated system.
Broad Test Coverage
One platform can cover electrical, mechanical, thermal and performance testing.
Automated Data Collection
Measurement data is acquired directly during testing, reducing manual recording.
Real-Time Monitoring
Important motor parameters can be monitored throughout the test process.
Flexible Configuration
System specifications can be matched to different motor ratings and test requirements.
Traceable Results
Test data can be stored, analyzed and converted into test reports.
Reduced Manual Work
Automated procedures help reduce repeated switching, recording and calculation.
Technical Data
| Specification | Value |
|---|---|
| Motor Power Range | Up to 10,000 kW* |
| Motor Voltage | Up to 10 kV* |
| Actual Load Test | Up to 400 kW* |
| Test Frequency | Up to 60 Hz* |
| Motor Types | AC / DC / Variable-Frequency |
| Electrical Testing | IR / Resistance / Withstand Voltage / Inter-Turn |
| Performance Testing | No-Load / Load / Locked-Rotor |
| Mechanical Testing | Torque / Speed / Vibration |
| Thermal Testing | Temperature Rise |
| Data Acquisition | Automatic |
| Control | Industrial PC |
| Software | Test Control & Data Analysis |
| Test Report | Automatic Generation |
| Configuration | Customized |
FAQ
Q:What is this system mainly used for?
It is used for comprehensive electrical, mechanical, thermal and performance testing of motors.
Q:Can one system perform multiple motor tests?
Yes. The system can integrate multiple test functions, including insulation, resistance, withstand voltage, no-load, locked-rotor, load, temperature rise, torque, speed and vibration testing.
Q:Is it suitable for high-voltage motors?
Yes. The system can be configured for motor voltages up to 10 kV, subject to the final system design.
Q:What is the maximum motor power?
The applicable motor power can reach 10,000 kW for the corresponding system configuration.
Q:What is the load capacity?
The described configuration provides an actual load testing capability of up to 400 kW. Other load capacities can be engineered according to the application.
