Face Recognition All In One POS Terminal Desktop Kiosk Touch Screen POS Tablet With QR Code NFC
Face Recognition All In One POS Terminal Desktop Kiosk Touch Screen Pos Tablet With QR Code NFC
| Specification/Features | |
| Item No. | GC116(Android, RK3399) |

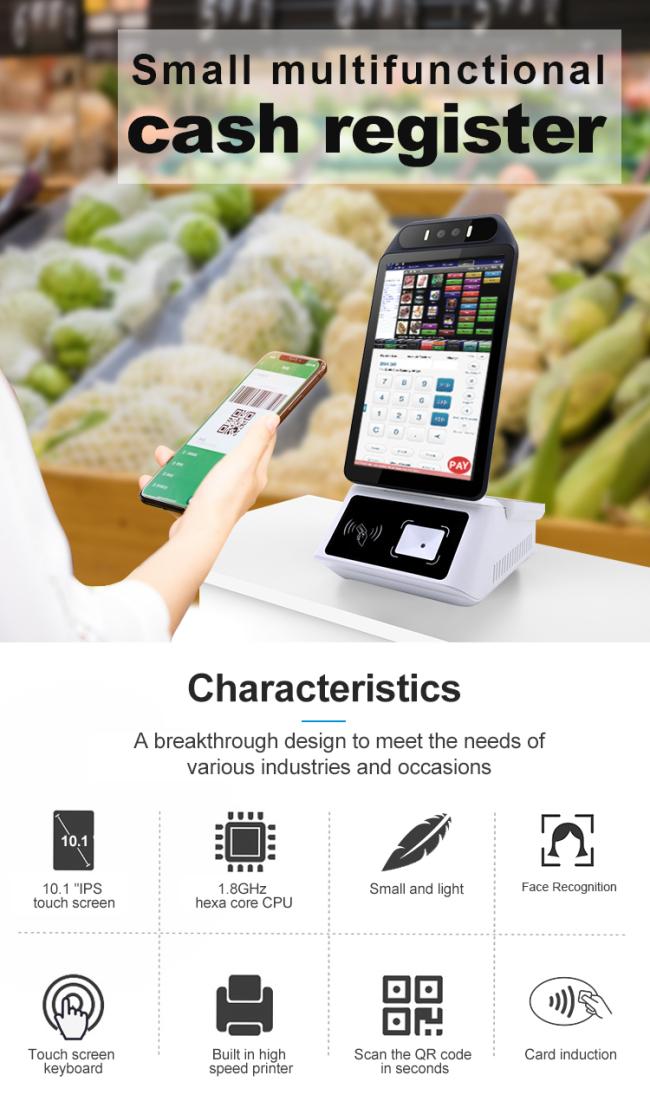

| Feature/Advantage | 10.1 inch face to pay tower style multi-function POS machine with printer and barcode scanner |
| Casing/Material | Aluminum, ABS, PCBA, color: white |
| Platform | OS installed, free SDK, POS apps not included |
| Operation System | Android 7.1 |
| 2D code decoding | with built-in 2D code decoding software, based on Android 7.1 or higher version |
| CPU | RK3399 hexa core, 1.8GHz, Dual-core Cortex-A72+ Quad-core Cortex-A53 |
| Memory | LPDDR4 3GB/4GB |
| Nandflash: EMMC 8G, 16GB optional | |
| Operation display | G+G capacitive multi-point touch, scratch proof, harden |
| 10.1" RGB TFT industrial panel, 800*1280 pixel, Aspect ratio: 10:16 | |
| Customer display | 1.9 inch TFT screen, 128*64 pixel |
| Keypad | 19 capacitive touch key |
| ID card reader/NFC reader(Optional) | ID card or NFC reader, only support one, ID card module by security bureau |
| NFC: 13.56MHZ contactless, meet standard of ph-ilips Mi-fare 1K/4K, ISO/IEC14443A/B, ISO/IEC15693, Mi-fare DE-Sfire, So-ny Felica | |
| Barcode scanning camera | 2.0 mega pixel high definition, barcode reader only |

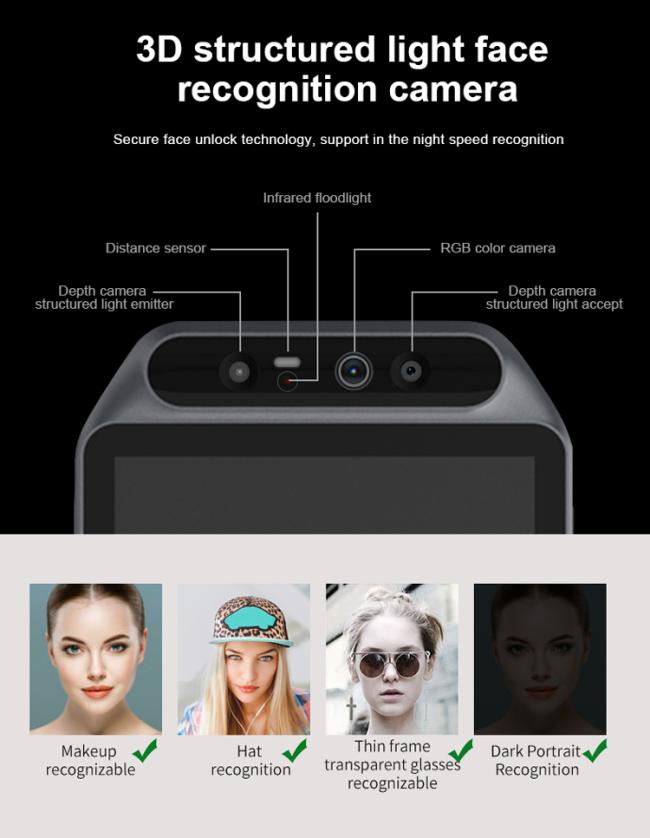

| Facial recognition camera(Optional) | 1.3 Mega pixel monocular face recognition camera |
| 2-8MP and binocular camera optional | |
| 3D camera optional | |
| Speaker | 3W, 4Ω full frequency high effective speaker |
| Microphone | high sensitive compacitive mic |
| Commucation module | Wifi module: IEEE802.11b/g/n compatible with wapi(optional) |
| Blue--tooth: Blue--tooth 4.1 short range wireless communication | |
| Ethernet(RJ45), support TCP/IP HTTP protocols | |
| (Optional)external 4G dongle(specified module, can instal in the battery compartment) | |
| Printer | High speed thermal printer, paper width: 58mm, printing speed: 3cm/s |
| can print text, image, bar code with setting size and font | |
| Antenna | Built-in high gain antenna |
| Multi-media function | High effient DSP processing, music,support mp3, wma and etc, support lyric display line by line or full display |
| Video, support 4k,H.265, HDMI 2.0,video enhancemene | |
| Picture, jpeg, jpg, bmp, gif, jfif, support upto 8000*8000 pixel | |
| External interface (may vary for different product batch,OEM available) |
USB x3, 2 in the back, 1 in battery compartment |
| PS/2 port x1 | |
| RJ11 x1, | |
| Ethernet RJ45 port x 1, support TCP/IP HTTP protocol | |
| Earphone port and microphone port x 1 set | |
| DC in x1: 9V, 4V | |
| Accessories | DC power adaptor,input 100-240V, output, 9V, 4A |
| Working temperature | -10℃~50℃ |
| Storage temperature | -40℃~80℃ |
| Humidty | 95% without sticky |
| ESD protection | 12kv |
| Packing info | Item size: 160*202*364mm Box size: 425*255*217mm Gross weight: 2.8kg/set Qty/carton: 4 pcs/ctn Carton size: 430*530*455mm Shiping Weight: 21kgs |

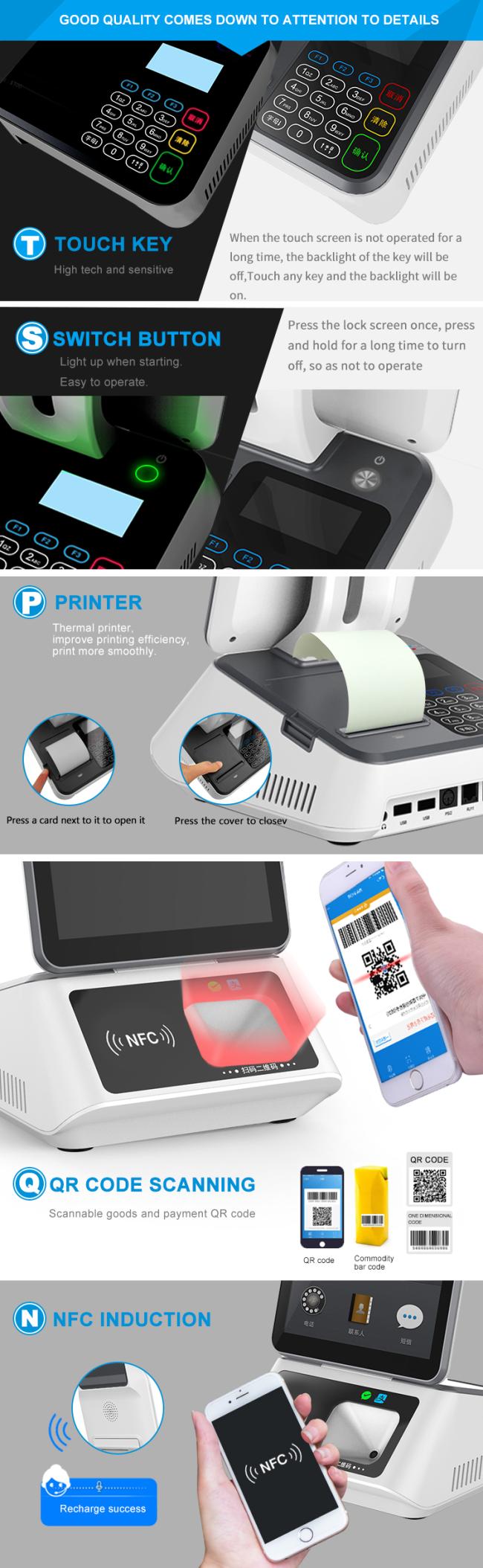

Product Detailed Images
Packing
Item size: 160*202*364mm
Box size: 425*255*217mm
Gross weight: 2.8kg/set
Qty/carton: 4 pcs/ctn
Carton size: 430*530*455mm
Shiping charge weight: 21kgs
Standard industrial package, gift box, paper tray, user manual, warranty card, carton, EVA holder, EPE foam
Shipping
we can delivery the good to the warehouse assigned by customers if you have your own forwarder;
And we can arrange shippment with our cooperated forwarder at best price;
We are VIP customer for DHL, UPS, FedEx, TNT and EMS, we accept any one upon your requirement.
- 1.More than 18 years experience in wireless pos terminal.
- 2.More than 30 professional engineer in our R&D.

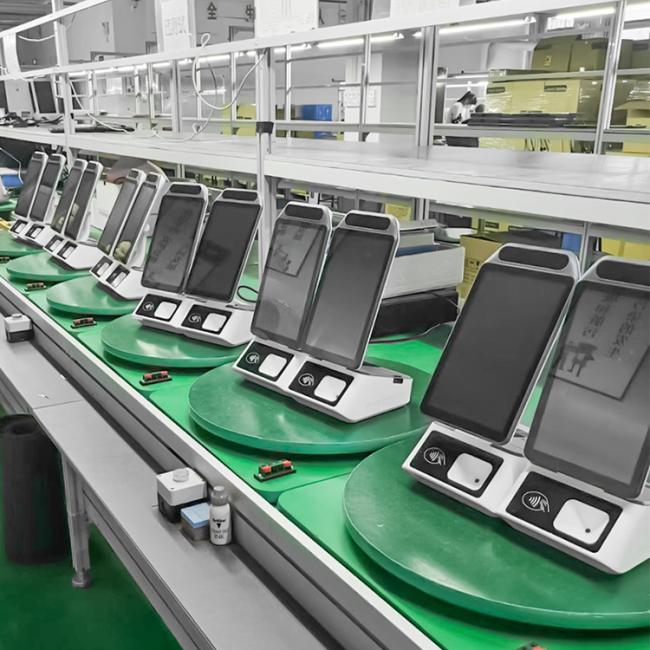

- 3.More than 7000 square meter factory,4 production line with more than 200 workers.
- 4.China telecom,China Unicom,China Mobile,Jin Dong,Wan DA are all our clients.
- 5.Haagen-Dazs,Sony,Pakistan Ufone operator all purchase from us.
- 6.The most innovative technology to ensure our best quality and competitive price.
- 7.Provide technology support for your secondary development after sale.
![]()
1.Q:Are you manufacturer?
A:Yes.our factory and headquarter located in Pingshan High-tech Zone, Shenzhen.China, we are professional POS terminal source supplier,
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year for all devices, anyhow man-made damage is not included.
4. Q: Can we have our logo and set boot screen in the product?
A:Yes, we accept OEM/ODM, just send your logo in .cdr format and clear boot screen, we can set for you, on body logo, we can print, stick and laser.
5.Q: What is your sample policy?
A: Usually, customers should pay for the sample and the sample price will be a little higher than the bulk order.We will return the sample cost in the bulk order if the quantity is large enough. We warmly welcome you to come to our factory to test the sample
6. Q: What's the terms of payment?
A: We acceptTelegraphic Transfer(T/T), Western Union, Paypal, L/C.
