China New Design 4 Layers Air Bubble Film Wrap Sheet Wrapping Roll Making Machine Air Bubble Film Wrap Machine for sale

New Design 4 Layers Air Bubble Film Wrap Sheet Wrapping Roll Making Machine Air Bubble Film Wrap Machine

Name: New Design 4 Layers Air Bubble Film Wrap Sheet Wrapping Roll Making Machine Air Bubble Film Wrap Machine
Brand: Shanghai Tailan Machinery Equipment Co.,Ltd,

Price Negotiable

Price: USD55000-USD65000

MOQ: 1 set

Delivery Time: 45 working days

Brand: TL

Product Description

Product Overview

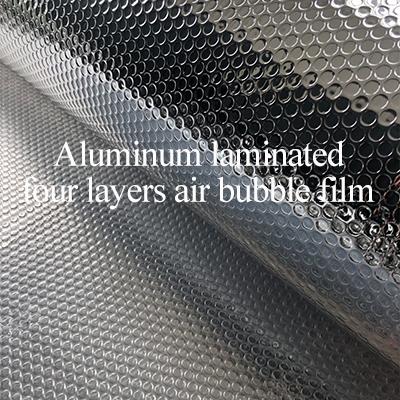

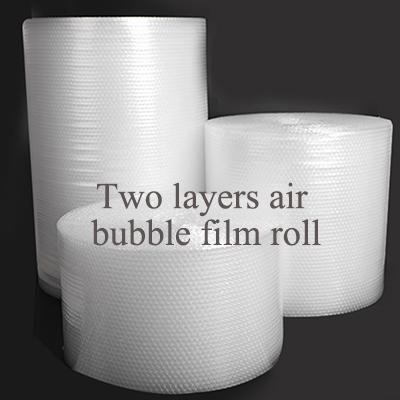

●This multi-layer machine can produce 2 layers air bubble film, 3 layers two-side-flat air bubble film, 3 layers laminated, 4 layers laminated, and 5 layers laminated air bubble film.

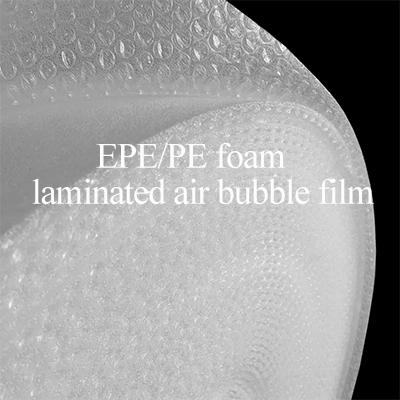

●As for the lamination material, it includes PE coated aluminum foil, PE coated Kraft peper, PE film, PE foam, PE coated
anti-static film, PE coated non-waven fabric and other PE coated materials to air bubble film.

Highlights of our machines:

Highlights of our machines:
-- Produce superior quality of air bubble film. We specially design and precisely manufacture all mechanical parts in Shanghai, especially the molds and forming rollers, which ensures our machine can produce air bubble film as thin as 32GSM while with stronger texture compared to others. We helped a lot of our customers win the market with our machines and service.-- Easy to operate. Help you save the labor cost.
-- 24-hour service and engineers onsite available. We provide 24-hour response service, engineers onsite service including installing, testing, operation training, and lifelong technical support.
-- Produce superior quality of air bubble film. We specially design and precisely manufacture all mechanical parts especially the molds and forming rollers, which ensures our machine can produce air bubble film as thin as 32GSM while with stronger texture compared to others. We helped a lot of our customers win the market with our machines and service.-- Easy to operate. Help you save the labor cost.
-- 24-hour service and engineers onsite available. We provide 24-hour response service, engineers onsite service including installing, testing, operation training, and lifelong technical support.

Our Recommand:

For Whom	Our machine recommendations
For beginners	1.2m-1.5m wide machine, help you get investment return within 6 months
For who wants to further expand the production capacity	1.5m-2m wide machine or/and two screws extrusion system
For who has production pressure to meet quantity and quality requirements from large companies	2m-3m wide machine or/and two screws extrusion system

A full set of machine includes:
· One single-screw main extrusion set.
· One single-screw sub extrusion set.
· One air bubble film forming roller (air bubble shape and size can be customized).
· One set of air bubble film forming frame with vertical dividers.
· Two automatic raw material feeder, reducing labor cost.
· One roll winding system, with a fixed-length meter control and a smart alarm.

Optional upgrades:

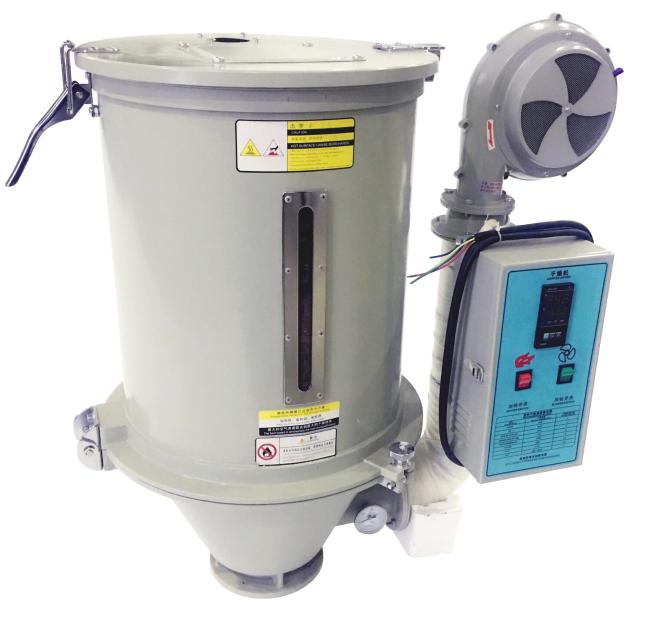

Automatic Dryer

(dry material)

Recycled Material Processing Machine (save material)

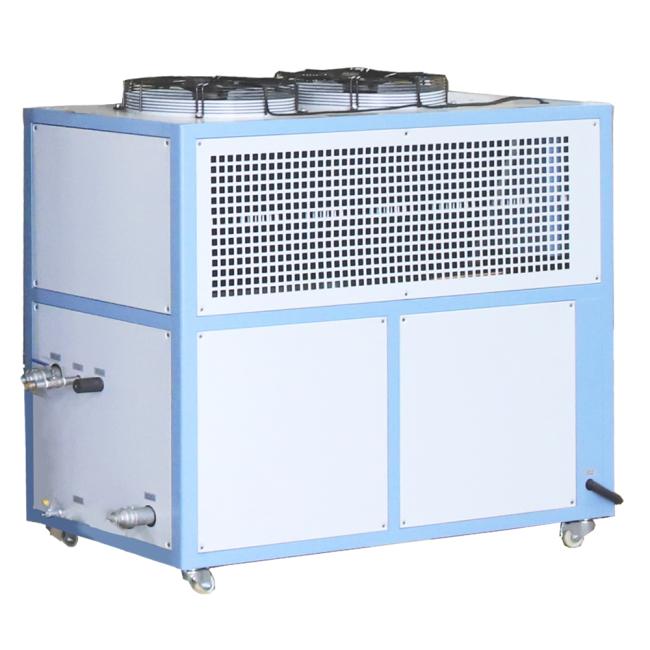

Automatic Water Chiller

(capacity +20%)

Machine Parameters

Film width (mm)	1200	1600	2000	2600	3000
Model	TL-L5-1200	TL-L5-1600	TL-L5-2000	TL-L5-2600	TL-L5-3000
Line speed (m/hr)	600 - 2100	600 - 2100	600 - 2100	600 - 2100	600 - 2100
Capacity (kg/hr)	85 - 140	100 - 170	125 - 200	145 - 220	180 - 260
Film weight (g/m2)	38 - 300	38 - 300	40 - 300	45 - 300	45 - 300
Main screw Diameter (mm)	Φ65 * 2	Φ65* 2	Φ75* 2	Φ80* 2	Φ90* 2
Sub screw Diameter (mm)	Φ45	Φ65	Φ65	Φ75	Φ80
Heating Power (kw)	82	104	136	155	180
Operation Power (kw)	40	51	66	75	86
Installation Power (kw)	122	146	201	245	298
Dimension L×W×H (m)	10 x 5.5 x 2.5	10 x 6.5 x 2.5	11 x 7.0 x 2.5	12 x 8.0 x 2.5	12 x 8.7 x 2.5
Weight (kg)	5500	6200	7500	9500	12000

After Service

Installation and Training Service
· We will send our engineers to your factory within 2 weeks after the machine arrives if customer needed.
· Our engineers will help you with machine installation, adjusting, testing and guide your workers.
· Our engineers will help you begin stable production within 5 ~ 10 days depending on the machine type and size.

Details Images

Detailed view of the machine's control panel and touch screen interface

Detailed view of the air bubble film winding and traction system

Pre-sale Service
· Free consulting about machine type and size.
· 24 hours online service to respond you anytime.
· Videos in details to show you everything you want to know.
· Anything else based on your production needs.

After-sale Service
· Well experienced engineer avaliable to provide oversea service at your place.
· 24 hours online service to respond you anytime.
· Installing, testing and training service.
· Lifelong technical support.
· 1 year warranty.
