High Quality Low Fuel Consumption Rock Auger Hydraulic piling Machine TR300D Doosan or CAT chassis
TR300D Concrete Equipment Rotary Drilling Rig for Bore Pile Drilling With Good Price

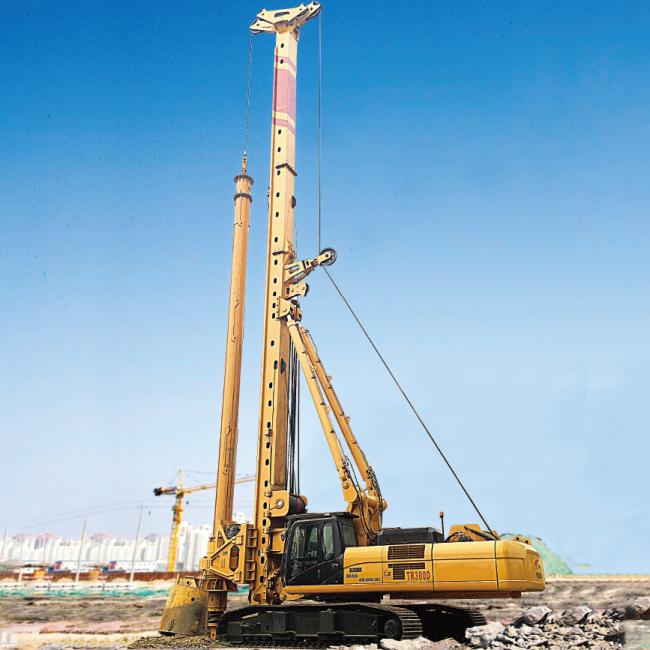

The TR300D rotary drilling righas an operating weight of approx 97 ton. It is specially designed to suit the following applications:
a. Rotary drilling;
b. Drilling cased boreholes(installation of casing by rotary drive);
c. Drilling with telescopic friction or interlocking kelly bar-standard Supply;
d. Drilling cased bore piles(casing driven by rotary head or optionally by casing oscillation);
e. CFA Piles by means of continue auger;
f. Either crowd winch system or hydraulic crowd cylinder system;
g. Displacement piles;
h. Soil-mixing.
TR300D rotary drilling rig ismainly used in the construction oflarge bridges, elevated railway,larger aperture and deep pileconstruction, and this machine can match with various drilling tools for hole operation, such as auger or bucket, core barrel, cleaning bucket etc.
TR300D Main Technical Specification:
| TR300D Rotary drilling rig | |||
|

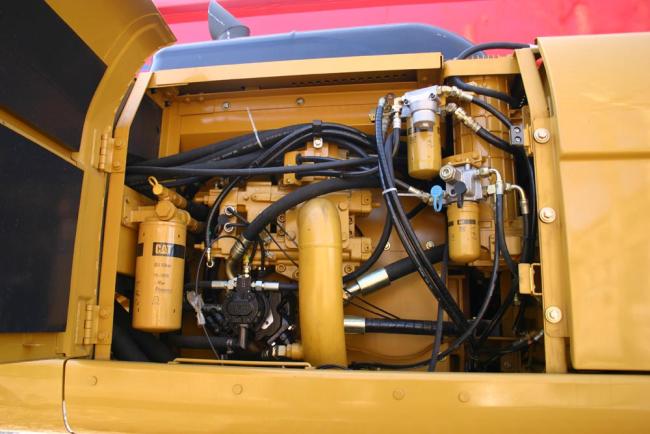

Engine |
Model |
|
SCANIA/CAT |
|
Rated power |
kw |
294 |
|
|
Rated speed |
r/min |
2200 |
|
|
Rotary head |
Max.output torque |
kN´m |
318 |
|
Drilling speed |
r/min |
5-25 |
|
|
Max. drilling diameter |
mm |
2500 |
|
|
Max. drilling depth |
m |
56/84 |
|
|
Crowd cylinder system |
Max. crowd force |
Kn |
248 |
|
Max. extraction force |
Kn |
248 |
|
|
Max. stroke |
mm |
6000 |
|
|

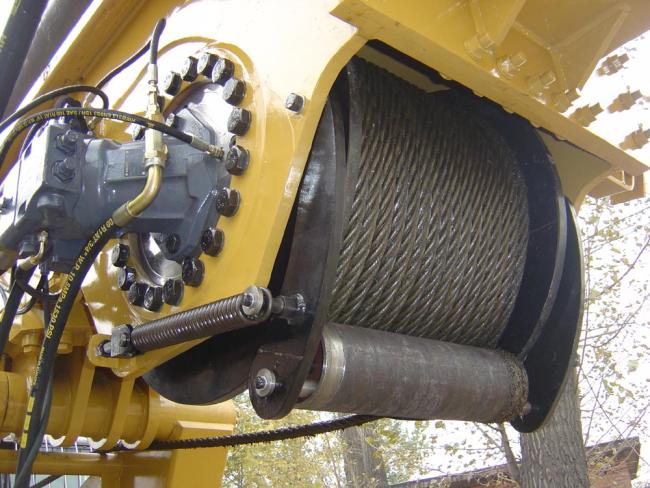

Main winch |
Max. pull force |
Kn |
300 |
|
Max. pull speed |
m/min |
69 |
|
|
Wire rope diameter |
mm |
36 |
|
|
Auxiliary winch |
Max. pull force |
Kn |
100 |
|
Max. pull speed |
m/min |
65 |
|
|
Wire rope diameter |
mm |
20 |
|
|
Mast inclination Side/ forwards/ backwards |
° |
±3/3.5/90 |
|
|
Interlocking Kelly bar |
|
ɸ508*4*14.5m |
|
|
Friction Kelly bar (optional) |
|
ɸ508*6*16.5m |
|
|
|
Traction |
Kn |
720 |
|
Tracks width |
mm |
800 |
|
|
Caterpillar grounding Length |
mm |
4950 |
|
|
Working Pressure of Hydraulic System |
Mpa |
32 |
|
|
Total weight with kelly bar |
kg |
97500 |
|
|
Dimension |
Working (Lx Wx H) |
mm |
9399x4700x23425 |
|
Transportation (Lx Wx H) |
mm |
17870x3870x3400 |
|
Feature and advantages of TR300D rotary drilling rig:
a. A classic model that dominates the market, with stable performance and reliable quality.
b. Strong construction capacity due to rotary drive with large torque.
c. High construction efficiency due to big flow main pump and multi-gear rotary drive.
d. Strong ability due to the front main winch, the center of gravity moving forward more effective push crowd force.
e. 22 items self auto-check , safety and performance monitoring.

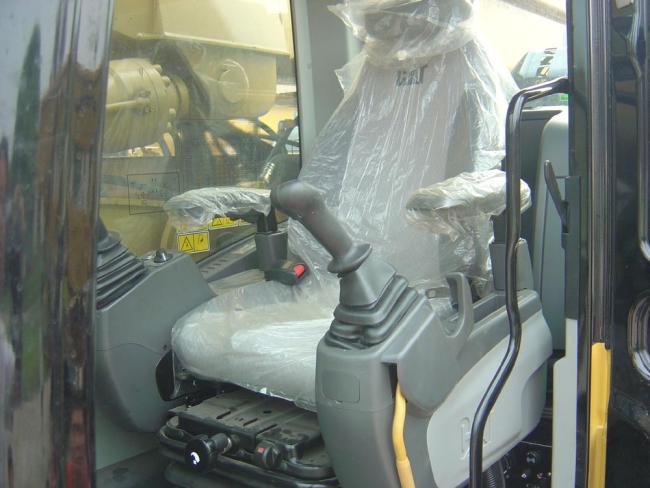

f. New generation cab with better vision, more comfortable operation, new electrical control panel. 360 degree full view monitoring.
