SPA5 Pile Cutting Machine Hydraulic With 150mm Cylinder Trip Break Concrete Pile, Cut Round Pile
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
ON STOCK
Brand:
SINOVO
Product Description
SPA 5 Pile Cutting Machine Hydraulic 150mm Cylinder Trip

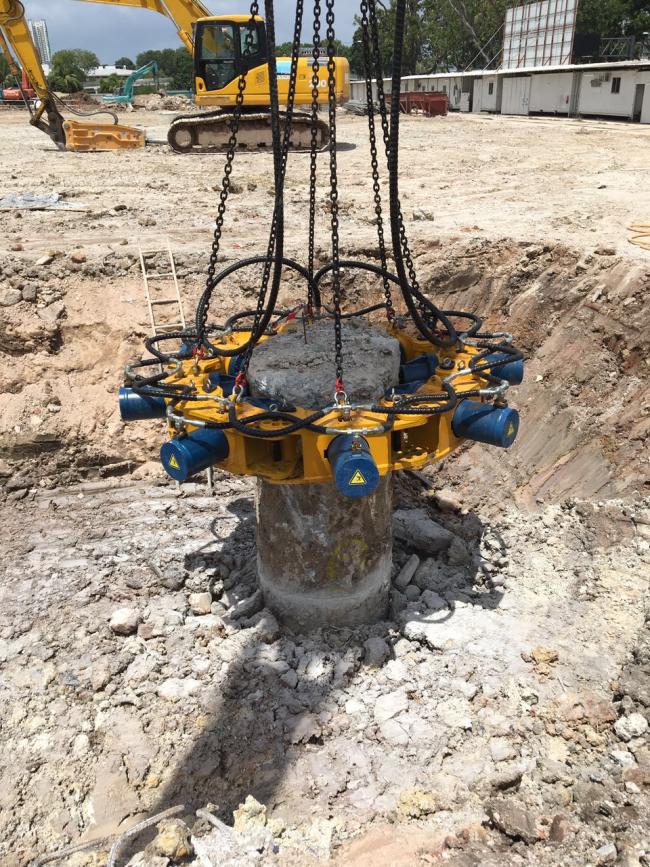

The operation steps of pile breaker
- According construction pile diameter, referring to construction of reference parameters combines
- corresponding amount modular, directly connect pile breaker to work platform by changing joint quickly.
- Moving pile breaker to the working pile head section.
- Adjust pile breaker to the suitable height part(please refer to construction parameter list when
- crush one time,if not there is danger of chain breakage0, clamp the need cutting pile position.
- Adjust the pressure by the pile with concrete intensity, don’t press hydro-cylinder, until concrete pile breaker in high pressure.
- After the pile crushed, hoist the concrete by the power of terrace.
- Move crushed pile to the appoint position.
Specification (a group of 12 modules)
| Model | SPA5 |
| Range of Pile diameter (mm) | Ф1050-Ф1200 |
| Maximum Drill rod pressure | 485kN |
| Maximum stroke of hydraulic cylinder | 150mm |
| Maximum pressure of hydraulic cylinder | 31.5MPa |
| Maximum flow of single cylinder | 25L/min |
| Cut the number of pile/8h | 60 |
| Height for cutting pile each time | ≦ 300mm |
| Supporting the digging machine Tonnage (excavator) |
≧ 20t
|
| One-piece module weight | 210kg |
| One-piece module size | 895x 715 x 400mm |
| Work status dimensions | Ф2670x 400 |
| Total pile breaker weight | 2.5t |
SPA5 Construction’s Parameters
| Module numbers | The diameter range (mm) | Platform weight(t) | Total pile breaker weight(kg) | Height of single crush pile(mm) |
| 7 | 250-450 | 12 | 1470 | 300 |
| 8 | 400-600 | 13 | 1680 | 300 |
| 9 | 550-750 | 15 | 1890 | 300 |
| 10 | 700-9000 | 18 | 2100 | 300 |
| 11 | 900-1050 | 21 | 2310 | 300 |
| 12 | 1050-1200 | 26 | 2520 | 300 |
