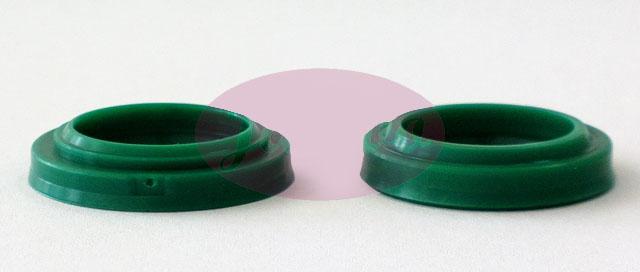

FESTO,WIFC4-16X23X4,8-TPE-U,338266,Wiper seal for Pneumatic Air cylinder

Material:Polyurethane with Shore A hardness of 93

Specifications: 16*23*4.8

Model:WIFC4-16*23*4.8-TPE-U

Color:Green

Order no:338266

Brand:FESTO

Green polyurethane material, with good dry friction resistance, weather resistance and wear resistance.

The FESTO material number of this product is 338266,However, there is another seal oil scraper AS02-16-PU with the same material number, different sizes .Please pay attention to identification. Comparison chart:

Installation steps:

1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely.

2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position.

3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring.

4.Wrap a proper amount of adhesive tape around the piston rod thread to avoid scratching the seals when the piston rod is inserted.

5.Insert the piston rod and fix the cylinder head.
