QSF-1/8-8-B Pneumatic Tube Fittings Push In Fitting 153025 4052568011000
Price:
EXW USD2-5
MOQ:
10 PCS
Delivery Time:
5-7 working days
Brand:
FESTO
Product Description
FESTO,Push-in fitting,QSF-1/8-8-B,153025,GTIN: 4052568011000,Pneumatic Tube Fittings
Nominal size:7 mm
Order no:153025
Brand:FESTO
GTIN:4052568011000
Specifications:QSF-1/8-8-B
Weight:16g
Product Technical Data
| Size | Standard |
| Nominal size | 7mm |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Product weight | 16 g |
| Pneumatic connection, port 1 | Female thread G1/8 |
| Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
| Colour of release ring | Blue |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Type of seal on screw-in stud | Coating |
Another Specifications
| Specifications | Order NO | GTIN | Nominal size(mm) | Weight(g) | EXW Price |
| QSF-1/8-4-B | 153022 | 4052568031268 | 3 | 13 | USD2-5 |
| QSF-1/8-6-B | 153023 | 4052568031275 | 5 | 15 | USD2-5 |
| QSF-1/8-8-B | 153025 | 4052568011000 | 7 | 16 | USD2-5 |
| QSF-1/4-4-B | 190650 | 4052568042851 | 3 | 21 | USD2-5 |
| QSF-1/4-6-B | 153024 | 4052568031282 | 5 | 23 | USD2-5 |
| QSF-1/4-8-B | 153026 | 4052568031299 | 7 | 24 | USD2-5 |
| QSF-1/4-10-B | 153028 | 4052568031312 | 9 | 30 | USD2-5 |
| QSF-1/4-12-B | 190651 | 4052568042868 | 11 | 44 | USD2-5 |
| QSF-3/8-6-B | 190652 | 4052568042875 | 5 | 30 | USD2-5 |
| QSF-3/8-8-B | 153027 | 4052568031305 | 7 | 32 | USD2-5 |
| QSF-3/8-10-B | 153029 | 4052568031329 | 9 | 38 | USD2-5 |
| QSF-3/8-12-B | 153030 | 4052568031336 | 11 | 46 | USD2-5 |
| QSF-1/2-12-B | 190653 | 4052568014841 | 11 | 56 | USD2-5 |
Fitting/removing the tubing
Fitting
The prerequisite for ensuring that the inside seal is securely held and protected
against damage is that the tube is cut into straight lengths and deburred.
1) Insert tubing as far as the stop.
It is important to ensure that the tubing is inserted into the inner seal. De
pending on the tolerance between the tubing and the seal, the contact of the
tubing with the seal may be wrongly interpreted as the stop.
2) Check that the tubing connection is secure by pulling gently on the tube.
Removal
1) The tubing can be detached easily by pressing and holding down the release
ring. Carefully remove the tubing from the fitting.
2) Before re-using the tubing, remove the damaged part by cutting it of.
Characteristic
1.Simply "plug and work"
The stainless steel retaining claw holds the tubing securely without damaging its surface. Vibration and pressure surges are absorbed.
2.Reliably connected
A nitrile rubber sealing ring guarantees a perfect seal between standard OD tubing and the body of the fitting.The standard tubing combined with the Festo push-in connector is suitable for compressed air and vacuum.
3.The captive seal
All brass parts of Festo's push-in fittings have nickel-plated surfaces and are thus highly resistant to corrosion.The tapered ISO R threads have a self-sealing PTFE coating, which allows the fitting to be re-used up to five times without the need for additional sealing components.
4.Rotatable
It can be rotated once it has been fitted.

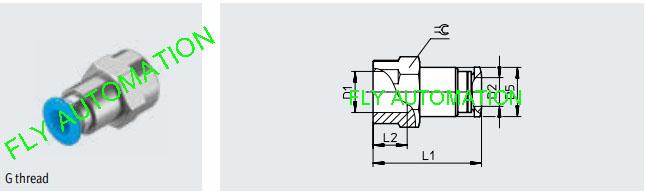

Push-in fitting QSF
Female thread with external hex
There are many specifications of connectors, price and delivery time. Welcome to inquire.
