FESTO Pneumatic Tube Fittings Push In T Fitting CRQST-3/8-10 164206 4052568136918
FESTO,Push-in T-fitting,CRQST-3/8-10,164206,4052568136918,Pneumatic Tube Fittings
Nominal size:5.9mm
Order no:164206
Brand:FESTO
GTIN:4052568136918
Specifications:CRQST-3/8-10
Weight:62g
Size of pack:1
Material housing:High-alloy stainless steel
Product Technical Data
| Feature | Value |
| Size | Standard |
| Nominal size | 5.9mm |
| Mounting position | optional |
| Size of pack | 1 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| Product weight | 62g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| Material housing | High-alloy stainless steel |
| Material release ring | High-alloy stainless steel |
| Material tubing seal | FPM |
| Material tubing clamp component | High-alloy stainless steel |
| Note on materials | RoHS-compliant |
| Suitable cables | PFAN |
Another size as follow
| Specifications | Order NO | GTIN | Weight(g) | EXW Price | Size of pack |
| CRQST-1/4-8 | 164204 | 4052568073244 | 38 | USD30-40 | 1 |
| CRQST-1/4-10 | 164205 | 4052568136901 | 56 | USD30-40 | 1 |
| CRQST-1/8-6 | 164202 | 4052568073220 | 25 | USD30-40 | 1 |
| CRQST-1/8-8 | 164203 | 4052568073237 | 33 | USD30-40 | 1 |
| CRQST-3/8-10 | 164206 | 4052568136918 | 62 | USD30-40 | 1 |
| CRQST-1/8-8 | 164203 | 4052568073237 | 85 | USD30-40 | 1 |
| CRQST-1/2-12 | 164208 | 4052568136932 | 105 | USD30-40 | 1 |
| CRQST-1/2-16 | 164209 | 4052568136949 | 128 | USD35-45 | 1 |
Orientable Male thread with external hex

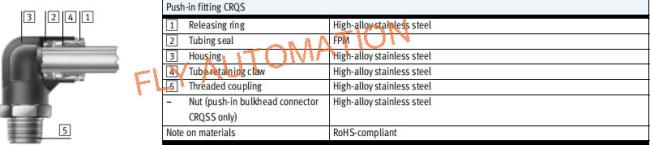

Sectional view
About product
1.Simply "plug and work".
2.Reliably connected.
3.Orientable.
4.Highest process reliability in every case
5.Unlimited use in the food industry
6.Corrosion resistance CRC 4 and chemical resistance with approval for use in the food and packaging industry.
7.For pneumatic applications with a temperature range up to 120 °C and a pressure range up to 10 bar.
8.Joints with different thread specifications are often used between pipelines to complete the connection.
