Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574
FESTO Shock absorber YSR-20-25-C 34574 GTIN4052568010058 Pneumatic Air Cylinders
Features
1.Universal, self-adjusting screw-in hydraulic shock absorber.
2.With path-controlled flow control function on a short stroke.
3.Hydraulic shock absorber with path-controlled flow control function.
4.Short cushioning stroke.
5.Suitable for rotary drives.
6.The best partner of the cylinder.
7.Precision machining,compact structure.
Technical Data
| Size | 20 |
| Stroke | 25 mm |
| Cushioning | Self-adjusting |
| Mounting position | optional |
| Position detection | Without |

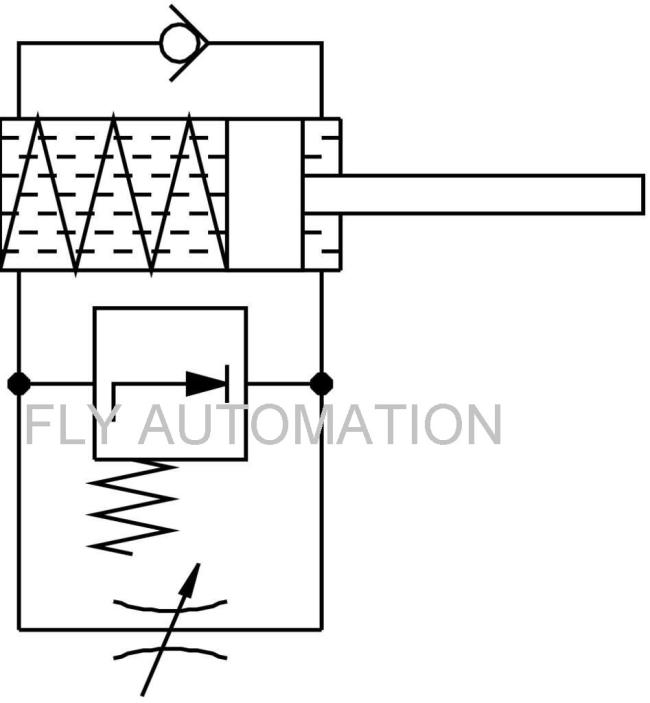

| Symbol | 00991497 |
| Max. impact speed | 3 m/s |
| Reset time at room temperature | 0.3 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Single-acting Pushing |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C-80°C |
| Cushioning length | 25 mm |
| Max. stop force | 3000 N |
| Max. energy consumption per stroke | 60 J |
| Max. energy consumption per hour | 92000 J |
| Max. residual energy | 0.32 J |
| Reset force | 10 N |
| Product weight | 318 g |
| Type of mounting | Via lock nut |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Galvanised steel |
| Material piston rod | High-alloy steel |
Other type as follow
| Type | Order no | GTIN | Weihght | Price |
| YSR-4-4-C | 540060 | 4052568178376 | 5 | USD40-50 |
| YSR-5-5-C | 158981 | 4052568071462 | 8 | USD30-40 |
| YSR-7-5-C | 160272 | 4052568012205 | 16 | USD30-40 |
| YSR-8-8-C | 34571 | 4052568010027 | 32 | USD30-40 |
| YSR-10-10-C | 191199 | 4052568150518 | 51 | USD80-90 |
| YSR-12-12-C | 34572 | 4052568010034 | 74 | USD40-50 |
| YSR-16-20-C | 34573 | 4052568010041 | 185 | USD80-90 |
| YSR-20-25-C | 34574 | 4052568010058 | 318 | USD80-90 |
| YSR-25-40-C | 160273 | 4052568128296 | 600 | USD120-130 |
| YSR-32-60-C | 160274 | 4052568128302 | 1220 | USD180-200 |
Data sheet
Dimensions
Festo is a world leader in automation technology and a global market leader in technology education and further education. We combine industry and education to help customers around the world improve their productivity.
The specifications are complete. I have everything you want,please call me immediately!
