FESTO Compact cylinder ADN-50-50-I-P-A 536327 GTIN4052568171278 Pneumatic Air Cylinders
Price:
EXW USD60-70
MOQ:
1pc
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
FESTO Compact cylinder ADN-50-50-I-P-A 536327 GTIN4052568171278 Pneumatic Air Cylinders
About product
1.Stable performance.
2.High quality material selection.
3.Seiko forging.
Technical Data
| Stroke | 50mm |
| Piston diameter | 50mm |
| Piston rod thread | M10 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Female thread |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 540g |
| Additional weight per 10 mm stroke | 51g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium Anodised |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Another stroke as below
| Type | Order no | GTIN | Price |
| ADN-50-5-I-P-A | 536320 | 4052568171216 | USD60-70 |
| ADN-50-10-I-P-A | 536321 | 4052568171223 | USD60-70 |
| ADN-50-15-I-P-A | 536322 | 4052568171230 | USD60-70 |
| ADN-50-20-I-P-A | 536323 | 4052568005580 | USD60-70 |
| ADN-50-25-I-P-A | 536324 | 4052568171247 | USD60-70 |
| ADN-50-30-I-P-A | 536325 | 4052568171254 | USD60-70 |
| ADN-50-40-I-P-A | 536326 | 4052568171261 | USD60-70 |
| ADN-50-50-I-P-A | 536327 | 4052568171278 | USD60-70 |
| ADN-50-60-I-P-A | 536328 | 4052568171285 | USD60-70 |
| ADN-50-80-I-P-A | 536329 | 4052568171292 | USD60-70 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.

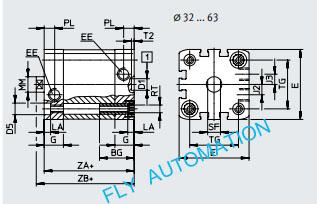

Dimensions – Basic version
There are so many kinds. Hurry to call me!
