ADNGF-25-15-P-A 554231 Compact Pneumatic Cylinder GTIN4052568198589
Price:
EXW USD40-50
MOQ:
1pc
Delivery Time:
10-15working days
Brand:
FESTO
Product Description
FESTO Compact cylinder ADNGF-25-15-P-A 554231 GTIN4052568198589 Pneumatic Air Cylinders
About product
1.Small loads,Low speeds,Small cushioning capacity.
2.No adjustment required.
3.Time-saving.
4.Double-acting.
5.Excellent quality and long service life.
Technical Data
| Stroke | 15 mm |
| Piston diameter | 25 mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Protection against torque/guide | Guide rod with yoke |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 191 g |
| Additional weight per 10 mm stroke | 28 g |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium Anodised |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Other size as below
| Type | Order no | Weight(g) | Price |
| ADNGF-25-5-P-A | 554229 | 205 | USD40-50 |
| ADNGF-25-10-P-A | 554230 | 219 | USD40-50 |
| ADNGF-25-15-P-A | 554231 | 233 | USD40-50 |
| ADNGF-25-20-P-A | 554232 | 247 | USD40-50 |
| ADNGF-25-25-P-A | 554233 | 261 | USD40-50 |
| ADNGF-25-30-P-A | 554234 | 275 | USD40-50 |
| ADNGF-25-40-P-A | 554235 | 303 | USD40-50 |
| ADNGF-25-50-P-A | 554236 | 331 | USD40-50 |
| ADNGF-25-60-P-A | 554237 | 359 | USD40-50 |

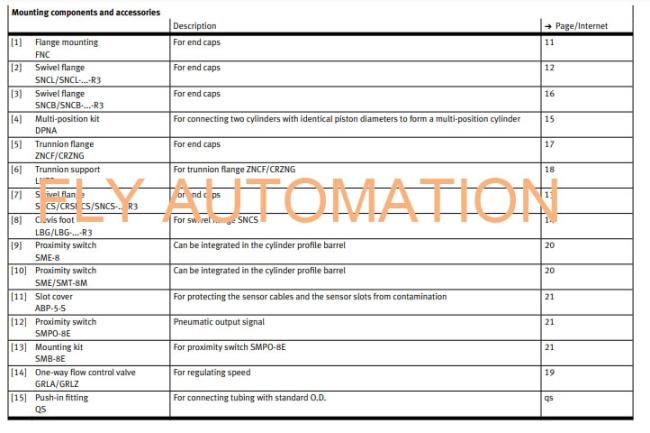

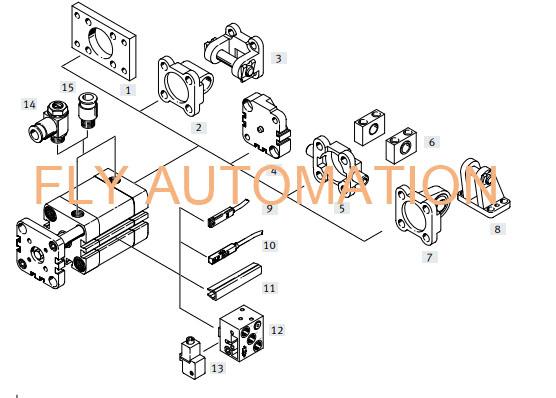

Peripherals overview
A wide range of products with excellent prices. Please hurry to me!
