GTIN4052568418007 Pneumatic Air Cylinders Guided Drive DFM-6-5-P-A-GF 4149944
Price:
EXW USD40-50
MOQ:
1pc
Delivery Time:
10-15working days
Brand:
FESTO
Product Description
FESTO Guided drive DFM-6-5-P-A-GF 4149944 GTIN4052568418007 Pneumatic Air Cylinders
About Product
1.Drive and guide unit in a single housing.
2.High resistance to torques and lateral forces.
3.Plain or recirculating ball bearing guide.
Technical Data
| Stroke | 5 mm |
| Piston diameter | 6 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |

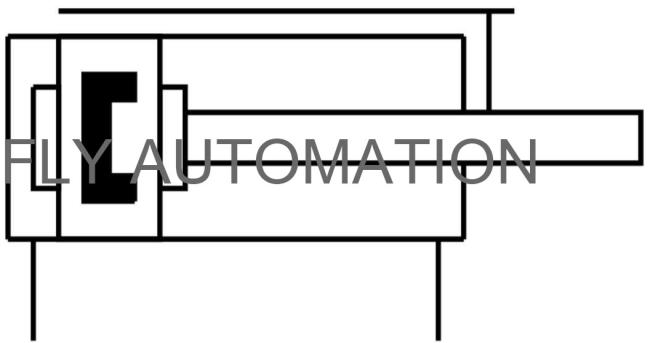

| Symbol | 00991737 |
| Max. speed | 1.3 m/s |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-60°C |
| Product weight | 28 g |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Material cover | High-alloy stainless steel |
| Material seals | NBR |
| Material dynamic seals | HNBR |
| Material end plate | Anodised wrought aluminium alloy |
| Material guide rod | High-alloy stainless steel |
| Material housing | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
Other size as follow:
| Type | Order no | Weight(g) | Price |
| DFM-6-5-P-A-GF | 4149944 | 28 | USD40-50 |
| DFM-6-10-P-A-GF | 4149945 | 33 | USD40-50 |
| DFM-6-15-P-A-GF | 4149946 | 40 | USD40-50 |
| DFM-6-20-P-A-GF | 4149947 | 45 | USD40-50 |
Cushioning type
FESTO is committed to promoting the development of industrial automation with intelligent and convenient solutions
A wide range of products with excellent prices. Please hurry to me!
