Mini Slide Pneumatic Air Cylinders DGST-8-30-E1A 8078835 GTIN4052568446666
Price:
EXW USD300-350
MOQ:
1pc
Delivery Time:
10-15working days
Brand:
FESTO
Product Description
FESTO Mini slide DGST-8-30-E1A 8078835 GTIN4052568446666 Pneumatic Air Cylinders
About Product
1.Powerful twin-piston drive.
2.Shortest mini slide on the market.
3.Precise recirculating ball bearing guide.
4.Compact mini slide.
5.Slide and yoke plate as a single component.
Technical Data
| Stroke | 30 mm |
| Piston diameter | 8 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastomer cushioning, double-sided, stroke not adjustable |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Twin piston Yoke Piston rod Slide |
| Position detection | Via proximity switch |

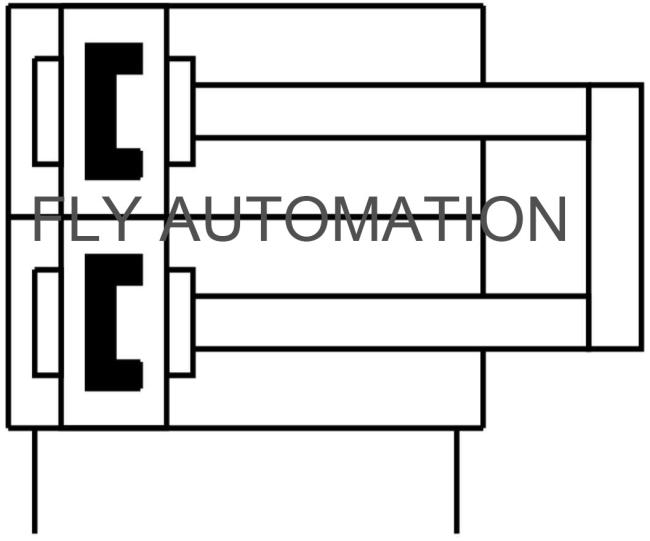

| Symbol | 00991249 |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-60°C |
| Cushioning length | 1.5 mm |
| Product weight | 176 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | HNBR |
| Material guide | POM TPE-E High-alloy steel |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
Other size as follow
| Type | Order no | Weight(g) | Price |
| DGST-8-10-E1A | 8078833 | 129 | USD300-350 |
| DGST-8-20-E1A | 8078834 | 154 | USD300-350 |
| DGST-8-30-E1A | 8078835 | 176 | USD300-350 |
| DGST-8-40-E1A | 8078836 | 200 | USD300-350 |
| DGST-8-50-E1A | 8078837 | 236 | USD300-350 |
| DGST-8-80-E1A | 8078838 | 310 | USD300-350 |
Cushing Type
A wide range of products with excellent prices. Please hurry to me!
