FESTO Pneumatic Solenoid Valves VUVG-B14-M52-AZT-F-1T1L 573482 GTIN4052568102760
Price:
EXW USD60-80
MOQ:
1pc
Delivery Time:
7-10 working days
Brand:
FESTO
Product Description
FESTO Solenoid valve VUVG-B14-M52-AZT-F-1T1L 573482 GTIN4052568102760 Pneumatic Solenoid Valves
About product
1.Reduced power consumption.
2.Excellent price/performance ratio.
3.Choice of quick push-in connectors.
4.Multiple pressure zones possible.
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Valve size | 14 mm |
| Standard nominal flow rate | 500 l/min |
| pneumatic working port | Flange |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Pneumatic spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65 IP67 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Flow direction | Reversible |

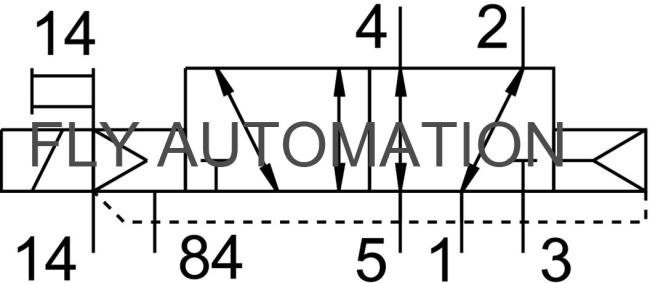

| Symbol | 00991053 |
| lap | Positive overlap |
| Signal status display | LED |
| Max. switching frequency | 3 Hz |
| Switching time off | 26 ms |
| Switching time on | 13 ms |
| Duty cycle | 100% |
| Characteristic coil data | 22 V DC: 1.0 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-60°C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C-60°C |
| Product weight | 91 g |
| Electrical connection | Via sub-base |
| Type of mounting | On manifold rail |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Wrought aluminium alloy |
Another Size as below,
| Type | Order no | Price |
| VUVG-B14-T32C-AZT-F-1T1L | 573476 | USD60-80 |
| VUVG-B14-T32U-AZT-F-1T1L | 573477 | USD60-80 |
| VUVG-B14-T32H-AZT-F-1T1L | 573478 | USD60-80 |
| VUVG-B14-T32C-MZT-F-1T1L | 573479 | USD60-80 |
| VUVG-B14-T32U-MZT-F-1T1L | 573480 | USD60-80 |
| VUVG-B14-T32H-MZT-F-1T1L | 573481 | USD60-80 |
| VUVG-B14-M52-AZT-F-1T1L | 573482 | USD60-80 |
| VUVG-B14-M52-MZT-F-1T1L | 573483 | USD60-80 |
| VUVG-B14-B52-ZT-F-1T1L | 573484 | USD60-80 |
| VUVG-B14-P53C-ZT-F-1T1L | 573485 | USD60-80 |
| VUVG-B14-P53U-ZT-F-1T1L | 573487 | USD60-80 |
| VUVG-B14-P53E-ZT-F-1T1L | 573486 | USD60-80 |
There are so many products, welcome to enquire!
