GTIN4052568100148 FESTO Pneumatic Solenoid Valve VUVG-L10-M52-RT-M5-1P3

Name: GTIN4052568100148 FESTO Pneumatic Solenoid Valve VUVG-L10-M52-RT-M5-1P3
Brand: Airwolf Automation

Price Negotiable

Price: EXW USD50-60

MOQ: 1pc

Delivery Time: 7-10 working days

Brand: FESTO

Product Description

FESTO Solenoid valve VUVG-L10-M52-RT-M5-1P3 566457 GTIN4052568100148 Pneumatic Solenoid Valves

About product
1.Pneumatic/mechanical spring return.

2.Internal pilot air supply.

3.Wrought aluminium alloy.

4.Expected high Festo quality.

5.Wide range of valve functions.

Technical Data

Valve function	5/2-way, monostable
Type of actuation	Electric
Valve size	10 mm
Standard nominal flow rate	220 l/min
pneumatic working port	M5
Operating voltage	24V DC
Design	Piston gate valve
Type of reset	Mechanical spring Pneumatic spring
Approval	RCM trademark c UL us - Recognized (OL)
Degree of protection	IP40 IP65 With plug socket
Nominal size	3.2 mm
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Manual override	Detenting Non-detenting Covered
Type of piloting	Pilot actuated
Pilot air supply	Internal

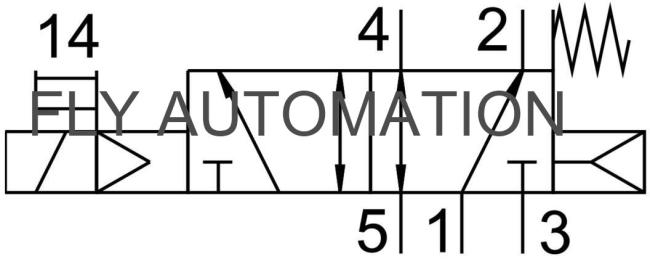

Symbol	00992233
lap	Positive overlap
Suitability for vacuum	no
Switching time off	17 ms
Switching time on	7 ms
Duty cycle	100%
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Media temperature	-5°C-60°C
Ambient temperature	-5°C-60°C
Product weight	45 g
Electrical connection	Via electrical sub-base
Type of mounting	Either: On manifold rail With through-hole
Pneumatic connection, port 1	M5
Pneumatic connection, port 2	M5
Pneumatic connection, port 3	M5
Pneumatic connection, port 4	M5
Pneumatic connection, port 5	M5
Note on materials	RoHS-compliant
Material seals	HNBR NBR
Material housing	Wrought aluminium alloy
