1312500 Pneumatic Air Cylinders Festo Linear Drive DGC-K-18-480 -PPV-A-GK

Name: 1312500 Pneumatic Air Cylinders Festo Linear Drive DGC-K-18-480 -PPV-A-GK
Brand: Airwolf Automation

Price Negotiable

Price: EXW USD400-450

MOQ: 1pc

Delivery Time: 7-10working days

Brand: FESTO

Product Description

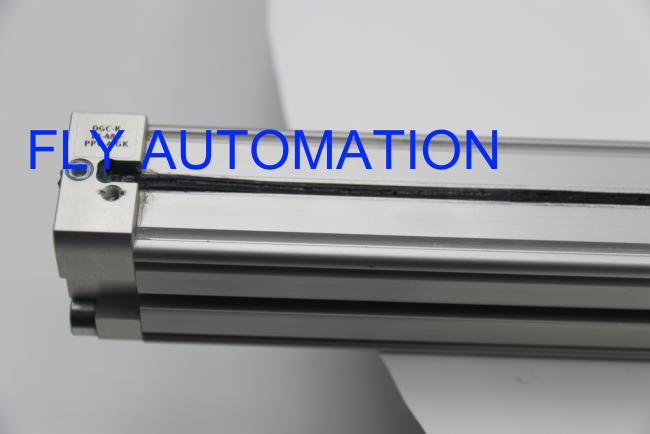

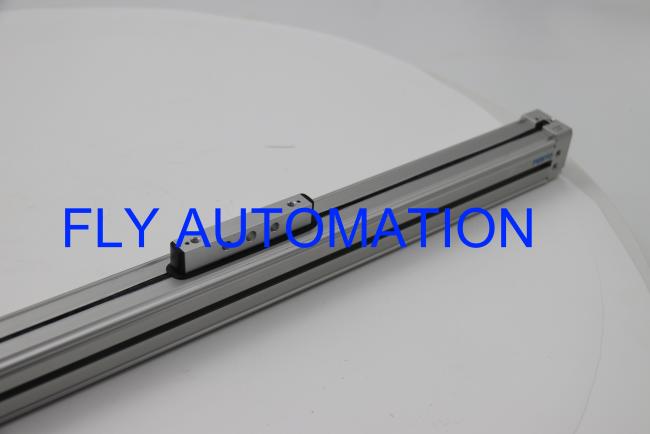

FESTO Linear drive DGC-K-18-480 -PPV-A-GK 1312500 Pneumatic Air Cylinders

About Product

1.Compact design: 30% smaller than basic design DGC-G.

2.Basic drive without guide, for simple drive functions.

3.Low moving dead weight.

4.Without external guide, for simple drive functions.

5.Compact – installation length relative to stroke .

6.Choice of: Standard piston/ Extended piston.

Advantages of the sealing system

1.Long strokes with no restrictions.

2.Virtually no leakage.

3.Fully interchangeable with the linear drive DGP.

4.Easy assembly and installation.

Technical Data

Stroke	1 mm ... 3000 mm
Piston diameter	18 mm
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Position detection	Via proximity switch
Variants	Supply port at both ends Standard piston Extended piston
Mode of operation	Double-acting
CE mark (see declaration of conformity)	To EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity)	To UK EX instructions
Explosion protection	Zone 1 (ATEX) Zone 2 (ATEX) Zone 22 (ATEX)
ATEX category gas	II 2G
ATEX category dust	II 3D
Explosion ignition protection type for gas	Ex h IIC T4 Gb X
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Suitable for use with food	See supplementary material information
Ambient temperature	-10°C-60°C
Cushioning length	16 mm
Type of mounting	With accessories
Note on materials	RoHS-compliant
Material cover	Die-cast aluminium
Material seals	NBR TPE-U(PU)
