GTIN4052568128807 Flat Pneumatic Air Cylinders DZF-32-100-A-P-A 161268
Price:
EXW USD150-180
MOQ:
1pc
Delivery Time:
7-10working days
Brand:
FESTO
Product Description
FESTO Flat cylinder DZF-32-100-A-P-A 161268 GTIN4052568128807 Pneumatic Air Cylinders
About product
1.Extremely flat design.
2.Protected against rotation thanks to special piston shape.
3.Ideal for manifold assembly.
4.Special shape piston rod is adopted to resist torsion.
5.Modular installation, compact space.
6.Multiple installation methods.
Technical Data
| Piston diameter | 32 mm Equivalent diameter |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Piston Piston rod |
| Position detection | Via proximity switch |

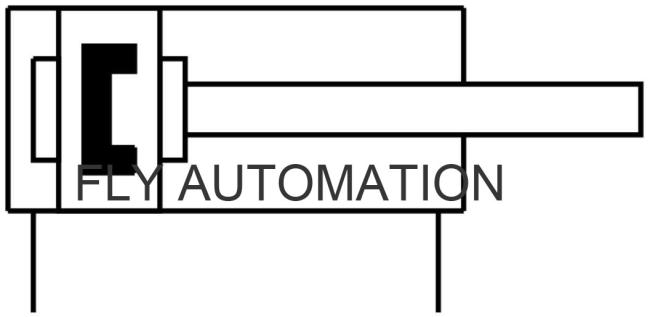

| Symbol | 00991217 |
| Protection against torque/guide | Oval piston |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Basic weight for 0 mm stroke | 272 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G1/8 |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material housing | Aluminium Smooth anodised |
| Material piston rod | High-alloy steel |

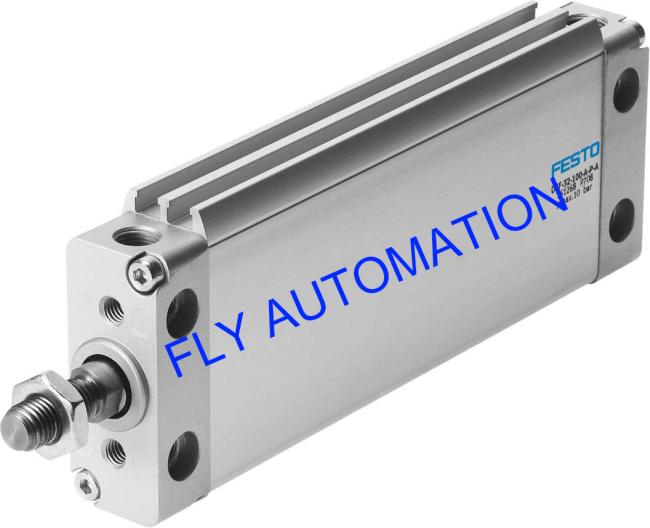

Product picture
A wide range of products with excellent prices. Please hurry to me!
