On / Off Pneumatic Manual Valve MS4-EM1-1/4-S 541259 GTIN4052568090739
FESTO On/off valve MS4-EM1-1/4-S 541259 GTIN4052568090739 Pneumatic Manual Valve
About product
1.Maximum machine availability thanks to controlled processes .
2.Reliable compressed air preparation and supply for systems.
3.Integrated or stand-alone.
4.Integrated soft-start function.
5.Fully automatic monitoring and regulation of the compressed air supply.
6.Automatic shut-off of the compressed air in stand-by mode .
7.Condition monitoring of relevant process data.
8.Detection and notification of leakages .
9.Optimum flow rate with a size that is up to 18% smaller .
10.Cost-optimised combinations – save up to 30%!.
Advantage
1.Excellent energy efficiency.
2.Easy to connect with M8/M12 plug.
3.Fast and reliable exhausting of systems up to Performance Level e, certified to EN ISO 13849-1 .
Product Technical Data
| Design | Rotary gate valve |
| Type of actuation | Manual |
| Exhaust-air function | Without flow control option |
| Type of piloting | Direct |
| Symbol | 00991670 |
| Valve function | 3/2 double solenoid |
| Operating pressure | 0 bar ... 14 bar |
| C value | 9 l/sbar |
| b value | 0.39 |
| Standard nominal flow rate | 2200 l/min |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Mounting position | optional |
| Flow direction | Non-reversible |
| Product weight | 210 g |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | Not ducted |
| Material seals | TPE-U(PU) |
| Material housing | Die-cast aluminium |

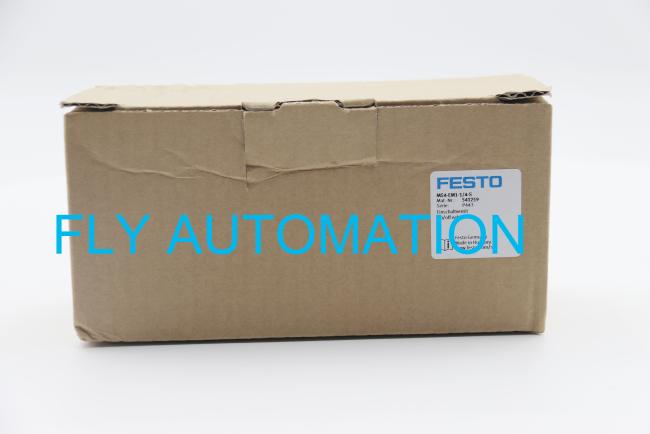

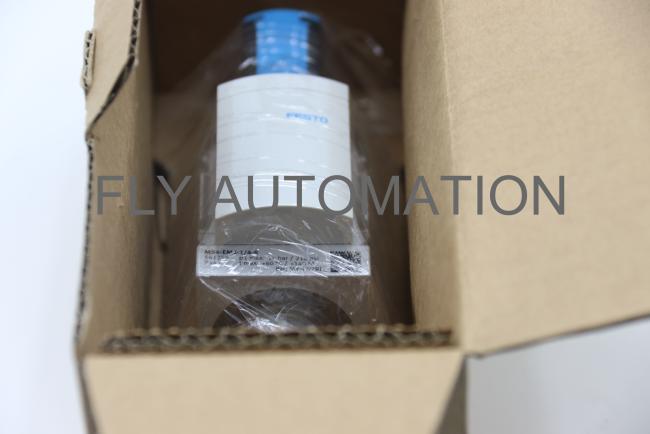

Package picture
There are many specifications , price and delivery time. Welcome to inquire.
